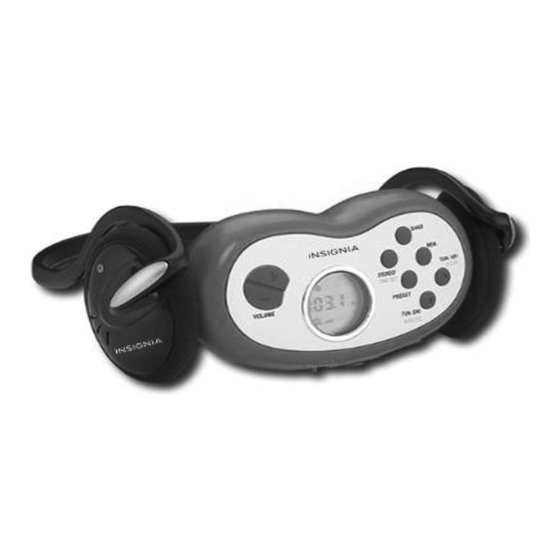

- Page 1 USER GUIDE Armband Radio NS-R5111A Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ....13 Welcome Congratulations on your purchase of a high-quality Insignia product. Your NS-R5111A Armband Radio represents the state of the art in design and reliable, trouble-free performance. Features •... -
Page 3: Using Your Armband Radio
Armband Radio Package contents: • Armband radio • Armband • Headphones • User Guide • AAA batteries (2) Using your armband radio STEREO/TIME SET button BAND (AM/FM) button Volume control MEMORY button buttons TUNE UP (hour) button TUNE DN (min.) button PRESET button HOLD switch ON/OFF button... - Page 4 NS-R5111A Display PRESET FM Stereo indicator indicator AM/FM HOLD indicator indicator AM/PM Radio indicator frequency Low battery Volume level indicator indicator LCD display www.insigniaproducts.com...
-
Page 5: Installing The Batteries
Armband Radio Installing the batteries Notes - Do not mix old and new batteries. - Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. - Dispose of batteries according to local environmental laws. When the batteries are low, the LCD will start flashing and eventually shut off. -
Page 6: Operating Your Radio
NS-R5111A Operating your radio To operate your armband radio: 1 Press the ON/OFF button to turn on the radio. 2 Press the BAND button to select AM or FM. 3 Insert the headphone plug into the Phone Jack. Note Your headphones’ soft wire works as the antenna for FM reception. You may need to extend the wire to obtain the best reception. - Page 7 Armband Radio 4 Press and release the STEREO/TIME SET button to select Stereo or Mono mode. Note Stereo mode is only available when listening to FM radio stations. To manually store stations: 1 Press the BAND button to select AM or FM. 2 Press the TUNE UP or TUNE DN button to select the radio station you want.
-
Page 8: Setting The Time
NS-R5111A To recall preset stations within the selected band: • Press the PRESET button to go to a stored station. Using Hold 1 Set the HOLD switch to ON and all buttons will be disabled. The Hold indicator appears on the LCD. -
Page 9: Specifications
Armband Radio Using the belt clip • To release the belt clip, pull the top end of the belt clip outward, then hold it and slide it down gently. Specifications Frequency range AM 530-1710 kHz FM 87.5-107.9 MHz Antenna AM ferrite bar antenna FM headphone cord 10% THD Headphones 10 mW +10 mW... -
Page 10: Troubleshooting
NS-R5111A Troubleshooting PROBLEM SOLUTION The sound is weak or Batteries may be weak. Sound/reception may be affected if you are in interrupted, or poor a vehicle or in a building. Move closer to a window to improve reception. reception. Display is dim. -
Page 11: Legal Notices
Armband Radio Air conditioner at 20 feet, sewing machine Vacuum cleaner, hair dryer, noisy restaurant Average city traffic, garbage disposals, alarm clock at two feet The following noise levels can be dangerous with constant exposure: Subway, motorcycle, truck traffic, lawn mower Garbage truck, chain saw, pneumatic drill Rock band concert in front of speakers, thunderclap... -
Page 12: Fcc Statement
NS-R5111A • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • Place the unit on a stable surface. Avoid installing the unit in locations described below: •... -
Page 13: One-Year Limited Warranty
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 14 NS-R5111A How to obtain warranty service? If you purchased the Product at a Best Buy retail store location, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
- Page 15 BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES...
- Page 16 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V2 ENGLISH ©2017 Best Buy. All rights reserved.
