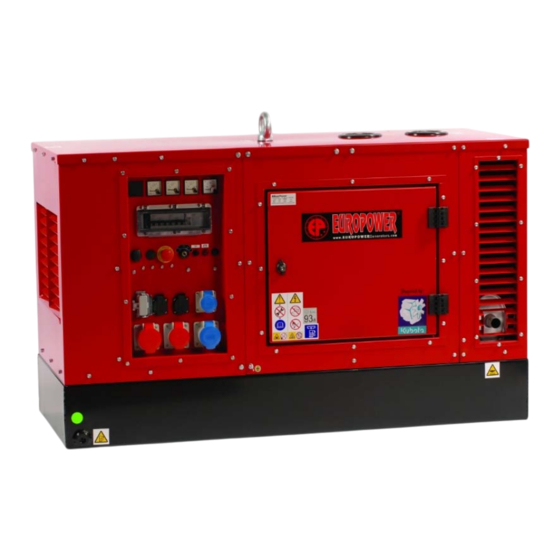

  • Page 1 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.1/12 EPS193DE KU/S-EPS243TDE KU/MA EPS193DE – EPS243TDE Content: 0. INTRODUCTION 1. SAFETY INSTRUCTIONS 2. CE-MARK, NOISE LABEL AND PICTOGRAMS 3. SHORT DESCRIPTION OF THE GENERATING SET 4. DESCRIPTION OF THE CONTROL PANEL 5. USE OF THE GENERATING SET 6.

  • Page 2: Safety Instructions

    If you have any questions concerning your generating set please contact EUROPOWER Generators through www.europowergenerators.com. All data in this manual are based on the standard versions of EPS193DE/EPS243TDE with Kubota V1505 engine. Generating sets with options can have slightly different data. Contact your dealer for more information.
  • Page 3 (<15%). This can damage the engine severely! 2. CE-MARK, NOISE LABEL AND PICTOGRAMS 2.1. CE-marking and noise label: these are examples of a EUROPOWER type indication plate and a noise label. The type indication plate can be found on every generator.
  • Page 4 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.4/12 EPS193DE KU/S-EPS243TDE KU/MA Diesel drain plug. By loosening this plug you can drain the fuel tank if necessary. Spilled diesel causes environmental damage. Wipe up spilled diesel at once. If you will not use the drained diesel again, you have to get rid of it in a correct and environmentally friendly way.
  • Page 5 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.5/12 EPS193DE KU/S-EPS243TDE KU/MA (24) Fuel is highly flammable and explosive and you can be burnt or seriously injured when refuelling. Turn the engine off and let it cool down before refuelling. (25) The engine‘s exhaust gases contain poisonous carbon monoxide.
  • Page 6 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.6/12 EPS193DE KU/S-EPS243TDE KU/MA (28) WARNING! – Consult the instruction and maintenance manual of the engine and the alternator before carrying out maintenance. Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed.

  • Page 7: Description Of The Control Panel

    (photo of control panel EPS243TDE) On the control panel of the EPS193DE/EPS243TDE there is space left for the optional mounting of: 1 frequency meter and 3 amp.meters (for EPS193DE 1 amp.meter) modular insulation protection control relay (instead of earth leakage...
  • Page 8 5. USE OF THE GENERATING SET CAUTION! The generating sets EPS193DE/243TDE are equipped with a 12V electric fuel pump. This pump may not “run dry”. If the engine stops because it is out of fuel, turn the contact key to position “OFF” as fast as possible.

  • Page 9: Parts List

    Consult your EUROPOWER dealer or EUROPOWER Generators. 7. PARTS LIST This parts list is based on the standard versions of the EPS193DE – EPS243TDE. For generating sets with options (e.g. insulation protection, remote control, automatic start/stop system,…) there can be small differences! Please contact your dealer for info on parts for these options.

  • Page 10: Control Panel

    1,5-6mm² 180999912 jumper bar 2-way for terminal block 181000005 rail clamp 10mm² earthing(EPS243TDE) 181001016 thermal-magn. protection 2-poles 16A, C-character (EPS193DE) 181001032 thermal-magn. protection 2-poles 32A, C-character (EPS193DE) 181001063 thermal-magn. protection 2-poles 63A, C-character (EPS193DE) 181002605 lamp complete 12V AC/DC green IP65...

  • Page 11: Electrical Schemes

    See enclosed drawing. 10. MAINTENANCE 10.1. Alternator: The alternators of the EPS193DE and EPS243TDE are free of maintenance. A periodic check of the alternator is not necessary. A visual control of the different alternator parts at every general generator maintenance will do.

  • Page 12: Transport And Storage

    EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.12/12 EPS193DE KU/S-EPS243TDE KU/MA 11. TRANSPORT AND STORAGE To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position, with the engine switch in position “OFF”.
