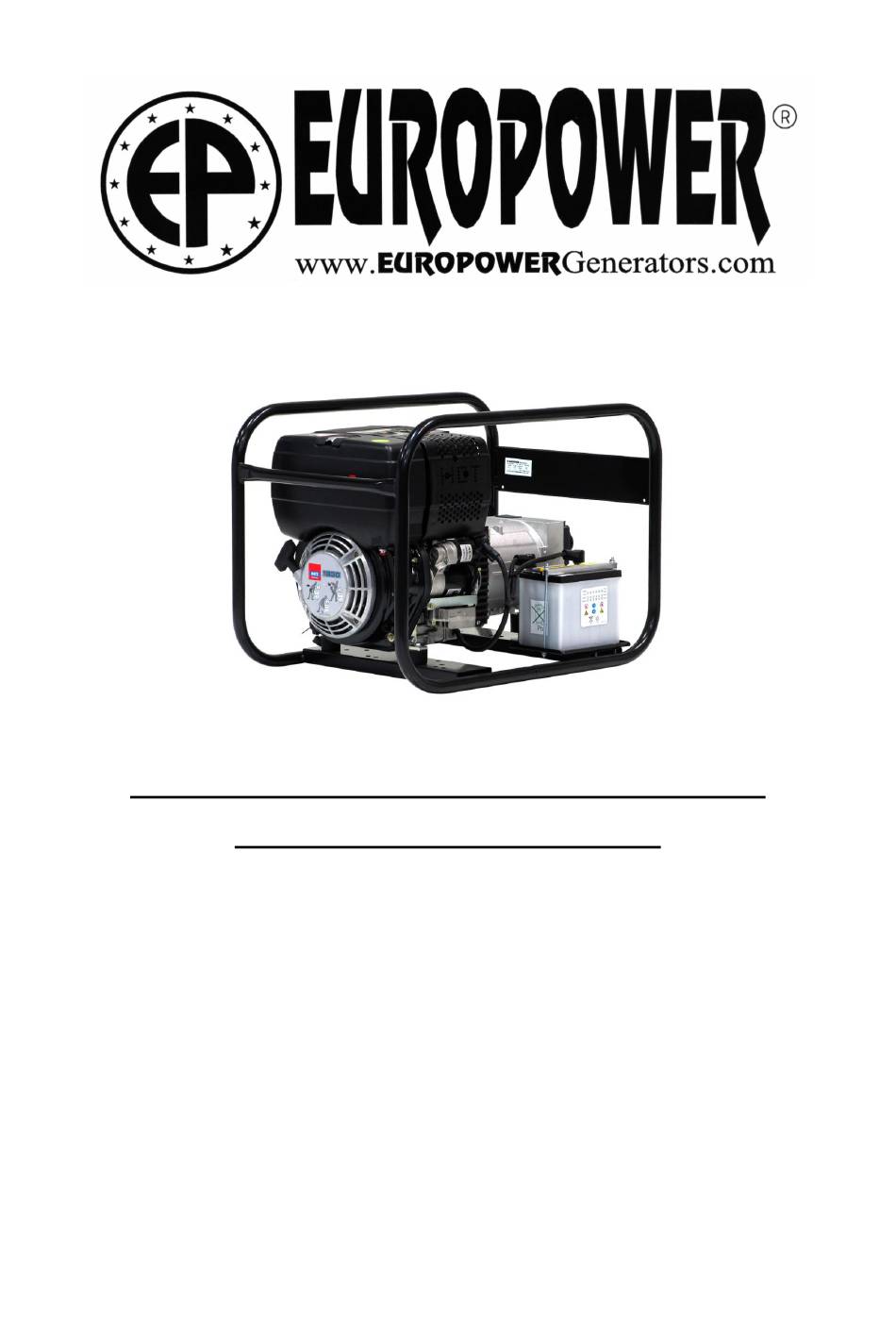

EUROPOWER USER MANUAL
www.EUROPOWERGenerators.com
EP3000D(E) HA/MA-EP4200D(E) HA/S-EP5000TD(E) HA/S-EP6000D(E) HA/S-EP7000TD(E) HA/S
Pag.1/11
EP3000D(E)-EP4200D(E)-EP5000TD(E)
EP6000D(E)-EP7000TD(E)
Content:
Datum: 26/03/13
Rev.: 01
Uitv: NO
Goedkeurder: YH
Ref: EP3000D(E)-4200D(E)-5000TD(E)-6000D(E)-7000TD(E)-160113rev01-
ESincro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP6000DE and is the answer not in the manual?

Questions and answers

Related Manuals for EuroPower EP6000DE

Summary of Contents for EuroPower EP6000DE

  • Page 1: Table Of Contents

    EUROPOWER USER MANUAL www.EUROPOWERGenerators.com EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.1/11 EP3000D(E)-EP4200D(E)-EP5000TD(E) EP6000D(E)-EP7000TD(E) Content: 0. INTRODUCTION 1. SAFETY INSTRUCTIONS 2. CE-MARK, NOISE LABEL AND PICTOGRAMS 3. SHORT DESCRIPTION OF THE GENERATING SET 4. DESCRIPTION OF THE CONTROL PANEL 5. USE OF THE GENERATING SET 6.

  • Page 2: Introduction

    If you have any questions concerning your generating set please contact EUROPOWER Generators through www.europowergenerators.com. All data in this manual are based on the standard versions of the EP3000D(E) / EP4200D(E) / EP5000TD(E) / EP6000D(E) / EP7000TD(E) with Hatz 1B20/1B30/1B40 engine.

  • Page 3: Ce-Mark, Noise Label And Pictograms

    2. CE-MARK, NOISE LABEL AND PICTOGRAMS 2.1. CE-marking and noise label: these are examples of a EUROPOWER type indication plate and a noise label. The type indication plate can be found on every generator. The noise label only appears on generators that comply with the European standard 2000/14/EC.
  • Page 4 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.4/11 EP_D Here you can fill the tank with diesel. Remove the fuel filler cap and check the fuel level. Refuel carefully to avoid fuel spillage. Do not fill the tank to the top. You might have to lower the fuel level, depending on operating conditions.
  • Page 5 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.5/11 (23) Do not smoke nor allow sparks or flames near the generating set, the fuel pipe, the fuel filter, the fuel pump or other possible sources of spilled fuel or fuel vapours.

  • Page 6: Short Description Of The Generating Set

    EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.6/11 3. SHORT DESCRIPTION OF THE GENERATING SET Type: EP3000D(E) HA/MA: 2.8kVA max. 2.5kVA cont. 11A 1x230V Frequency: 50 Hz Engine: HATZ 1B20, 4.8 HP, 1 cylinder, 232 cm³, 3000 rpm, air-cooled Alternator: Mecc-Alte S16W-90/C 3.5kVA, SAEJ609A Content of fuel tank: 3.2 litres...

  • Page 7: Description Of The Control Panel

    EUROPOWER USER MANUAL www.EUROPOWERGenerators.com EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.7/11 4. DESCRIPTION OF THE CONTROL PANEL The alternator panel consists of: Thermal protection (only on 1~ 230V sockets) 2 sockets (1~ 230V types = 2x Schuko, 3~ 400V types = 1x Schuko + 1x CEE...
  • Page 8 For engine and alternator faults, please contact your dealer. 5.7. Safety for the users: The standard version of the generating sets EP3000D(E) - EP4200D(E) - EP5000TD(E) - EP6000D(E) - EP7000TD(E) are connected following the IU Datum: 26/03/13 Rev.: 01...

  • Page 9: Incorporation Of The Generating Set

    Conformity IIA. 7. PARTS LIST This parts list is based on the standard versions of the EP3000D(E) - EP4200D(E) - EP5000TD(E) - EP6000DE- EP7000TD(E). For generating sets with options (e.g. insulation protection, remote control, automatic start/stop system,…) there can be small differences! Please contact your dealer for info on parts for these options.

  • Page 10: Electrical Schemes

    To be asked at your EUROPOWER dealer. 10. MAINTENANCE 10.1. Alternator: EP3000D(E) - EP4200D(E) - EP6000D(E): a periodic check of the alternator is not necessary. A visual control of the different alternator parts at every general generator maintenance will do.

  • Page 11: Transport And Storage

    EUROPOWER USER MANUAL www.EUROPOWERGenerators.com EP3000D(E) HA/MA-EP4200D(E) HA/S–EP5000TD(E) HA/S–EP6000D(E) HA/S-EP7000TD(E) HA/S Pag.11/11 Please also check the state of the rotor bearing and the state of the carbon brushes! The expected life time of the brushes is +/- 1000 hours. 10.2. Engine: See engine manual for maintenance intervals.
