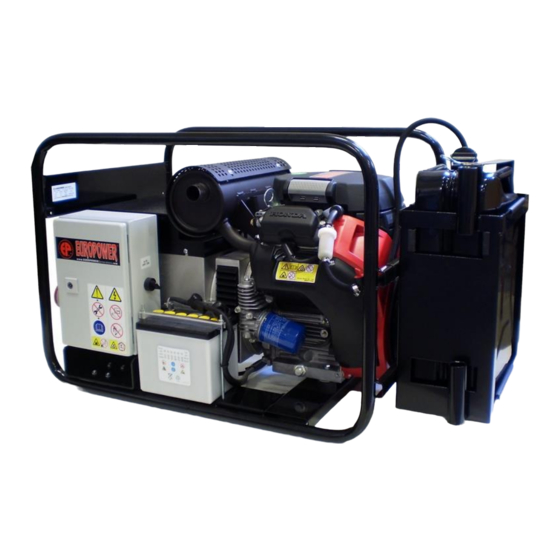

EuroPower EP13500TE H/S Manual
  1. Manuals
  2. Brands
  3. EuroPower Manuals
  4. Portable Generator
  5. EP13500TE H/S
  6. Manual

EuroPower EP13500TE H/S Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE-
EP10000E H/MA - EP12000TE-IP54 H/So
EP12000TE-IP54 H/GTS- EP13500TE H/S
EP12000E H/S - EP16000TE H/S
Content:
ORIGINAL INSTRUCTION MANUAL
Opsteller: MH
Opsteldatum: 15/04/2020
www.EUROPOWERgenerators.com
EP14000E-EP18000TE
Revisie:02
Goedkeurder: GD
Pg. 1 / 13
Doc.nr.:0004598
Revisor: BL
Revisiedatum: 28/06/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP13500TE H/S and is the answer not in the manual?

Questions and answers

Related Manuals for EuroPower EP13500TE H/S

Summary of Contents for EuroPower EP13500TE H/S

  • Page 1: Table Of Contents

    Pg. 1 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE EP10000E H/MA – EP12000TE-IP54 H/So EP12000TE-IP54 H/GTS– EP13500TE H/S EP12000E H/S – EP16000TE H/S EP14000E H/S – EP18000TE H/S Content: 0. INTRODUCTION 1. SAFETY INSTRUCTIONS 2. CE-MARK, NOISE LABEL AND PICTOGRAMS 3. SHORT DESCRIPTION OF THE GENERATING SET 4.

  • Page 2: Ep14000E H/S - Ep18000Te H/S

    If you decide to use a gasoline containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by EUROPOWER. There are two types of ‘gasohol’: one containing ethanol, and the other containing methanol. Do not use gasohol that contains more than 10% ethanol.
  • Page 3 • If the appliance you want to connect is of an electronic kind (computer, radio, TV, plastic welder, …), always consult a EUROPOWER specialist first. Such appliances might not work or even break down in combination with some alternators. Alternators with a low harmonic distortion are best suited for connection of electronic appliances.

  • Page 4: Ce-Mark, Noise Label And Pictograms

    2. CE-MARK, NOISE LABEL AND PICTOGRAMS 2.1. CE-marking and noise label: These are examples of a EUROPOWER type indication plate and a noise label. The type indication plate can be found on every generator. The noise label only appears on generators that comply with the European standard 2000/14/EC.
  • Page 5 www.EUROPOWERgenerators.com Pg. 5 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE (12) Never connect the generator to an installation which is also connected to a public mains. Improper connections can allow electrical current from the generator to back feed into the utility lines. Such back feed may electrocute utility company workers, and when utility power is restored, the generator may explode, burn or cause fires in the building’s electrical systems.

  • Page 6: Short Description Of The Generating Set

    3. SHORT DESCRIPTION OF THE GENERATING SET Type: EP10000E H/MA: 10 kVA max. / 9 kVA cont. – 39 A 1x230 V Type: EP13500TE H/S: 13.5 kVA max. / 12 kVA cont. – 20 A 1x230 V / 14 A 3x400 V Type: EP12000TE-IP54 H/So: 12.5kVA max.

  • Page 7: Description Of The Control Panel

    Pg. 7 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE - EP10000E H/MA: 146 kg, EP12000TE-IP54: 148 kg, EP13500TE H/S: 149 kg - EP12000E H/S: 150 kg, EP16000TE H/S: 155 kg - EP14000E H/S: 162 kg, EP18000TE H/S: 165 kg All TYPES: Frequency: 50 Hz...

  • Page 8: Use Of The Generating Set

    www.EUROPOWERgenerators.com Pg. 8 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE Switch A.I.S. OFF / ON (only for EP12000E, EP16000TE, EP14000E and EP18000TE). 5. USE OF THE GENERATING SET Operating points: 2 sockets with thermal-magnetic protection, A.I.S. switch (only for EP12000E, EP16000TE, EP14000E and EP18000TE), starting key, choke knob and throttle lever (only for EP10000E, EP12000TE-IP54 and EP13500TE).
  • Page 9 www.EUROPOWERgenerators.com Pg. 9 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE 5.3. Stopping the generating set: let the generating set cool down at no load for a few minutes before stopping the engine stop the engine with the starting key close the fuel cock. CLOSE 5.4.

  • Page 10: Incorporation Of The Generating Set

    25mm² 35mm² 6. INCORPORATION OF THE GENERATING SET Consult your EUROPOWER dealer or EUROPOWER Generators. See the “Mounting instructions” to be found with “Declaration of Incorporation according to 2006/42/EG” for generating sets that do not have the EC Declaration of Conformity IIA.

  • Page 11: Parts List

    www.EUROPOWERgenerators.com Pg. 11 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE 7. PARTS LIST This parts list is based on the standard versions of the EP10000E – EP12000TE-IP54 - EP13500TE - EP12000E – EP16000TE - EP14000E – EP18000TE generating set. For generating sets with options (e.g. insulation protection, remote control, automatic start/stop system…) there can be small differences! Please contact your dealer for info on parts for these options.

  • Page 12: Electrical Schemes

    8. ELECTRICAL SCHEMES See the electrical schemes in the engine and alternator manual and the enclosed EUROPOWER electrical schemes. 9. BUILDING-IN DIMENSIONS To be asked at your EUROPOWER dealer. 10. MAINTENANCE 10.1. Alternator: Alternator: besides regular visual control of the different alternator parts, the alternator only needs a check of the rotor bearing on every general engine maintenance.

  • Page 13: Transport And Storage

    www.EUROPOWERgenerators.com Pg. 13 / 13 EP10000E-EP12000TE-IP54-EP13500TE-EP12000E-EP16000TE- Doc.nr.:0004598 EP14000E-EP18000TE 10.2. Engine: See engine manual for maintenance intervals. Remark: in the factory, the engine has been filled with 15W40 oil (for temperatures up to -10°C). The minimum specification of this oil has to be API SJ/CF-4.
