Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance
from your new Universal Camera.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card,
and in the space provided below. Refer to the model and serial numbers whenever you call upon your
Kenwood dealer for information or service on the product.
Model CMOS-230 Serial number
US Residence Only
Register your Kenwood product at www.Kenwoodusa.com
© 2014 JVC KENWOOD Corporation
CMOS-230

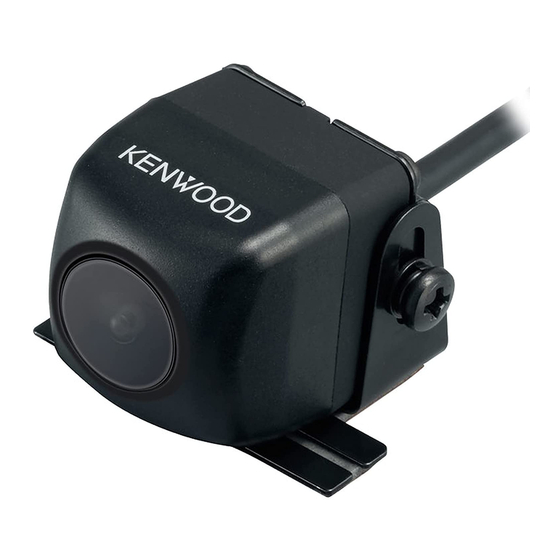

UNIVERSAL REAR VIEW CAMERA
INSTRUCTION MANUAL
CAMÉRA DE RECUL UNIVERSELLE
MODE D'EMPLOI
UNIVERSAL RÜCKFAHRKAMERA
BEDIENUNGSANLEITUNG
UNIVERSELE ACHTERUITRIJCAMERA
GEBRUIKSAANWIJZING
TELECAMERA PER RETROMARCIA UNIVERSALE
ISTRUZIONI PER L'USO
CÁMARA DE VISTA TRASERA UNIVERSAL
MANUAL DE INSTRUCCIONES
CÂMARA TRASEIRA UNIVERSAL
MANUAL DE INSTRUÇÕES
通用后视摄像头
使用说明书
Register Online
B5A-0543-00 (W)
Advertisement
Table of Contents
Related Manuals for Kenwood CA-LPM10
Summary of Contents for Kenwood CA-LPM10
- Page 1 Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model CMOS-230 Serial number...
-
Page 2: Care And Maintenance
Before Use/ Installation Procedure Before Use/ Installation Procedure Before Use/ Installation Procedure • Before fi nally installing the unit, connect the wiring • Before fi nally installing the unit, connect the wiring • Before fi nally installing the unit, connect the wiring WARNING WARNING WARNING... - Page 3 • Lay the cords by avoiding high-temperature areas. Use • Lay the cords by avoiding high-temperature areas. Use WARNING WARNING corrugated tubes for wiring inside the engine room. If a corrugated tubes for wiring inside the engine room. If a •...
-
Page 4: Recommended Installation Position
Mount the camera on the camera bracket. Mount the camera on the camera bracket. Mount so that the “KENWOOD” logo appears at the top. Mount so that the “KENWOOD” logo appears at the top. Mount so that the “KENWOOD” logo appears at the top. - Page 5 After adjusting the camera angle, tighten the After adjusting the camera angle, tighten the retaining screws fi rmly. retaining screws fi rmly. Inspect the retaining screws at times. If they are loose, Inspect the retaining screws at times. If they are loose, tighten them fi...
- Page 6 Connections Connections Basic Connections Basic Connections Connect to the rearview camera video input or to the external Connect to the rearview camera video input or to the external video input of the video monitor. video input of the video monitor. Video cord Video cord Navigation system/video monitor (commercially available)
-
Page 7: Specifications
Specifi cations Specifi cations Specifi cations Specifi cations Camera Unit Camera Unit Camera Unit Camera Unit Information on Disposal of Old Electrical and Information on Disposal of Old Electrical and Information on Disposal of Old Electrical and Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable Electronic Equipment and Batteries (applicable Electronic Equipment and Batteries (applicable... - Page 8 Declaration of Conformity with regard to the RoHS Conformiteitsverklaring met betrekking tot de RoHS richtlijn van de Europese Unie (2011/65/EU) Directive 2011/65/EU Fabrikant: Manufacturer: JVC KENWOOD Corporation JVC KENWOOD Corporation 3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan 221-0022, Japan EU Representative’s:...
- Page 9 Fabricante: Fabricante: לא ניתן להשליך מוצרים וסוללות עם הסימון )פח לא ניתן להשליך מוצרים וסוללות עם הסימון )פח JVC KENWOOD Corporation JVC KENWOOD Corporation . עליו( כאשפה ביתית רגילהX אשפה עם . עליו( כאשפה ביתית רגילהX אשפה עם 3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, יש...
- Page 10 For U.S.A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
