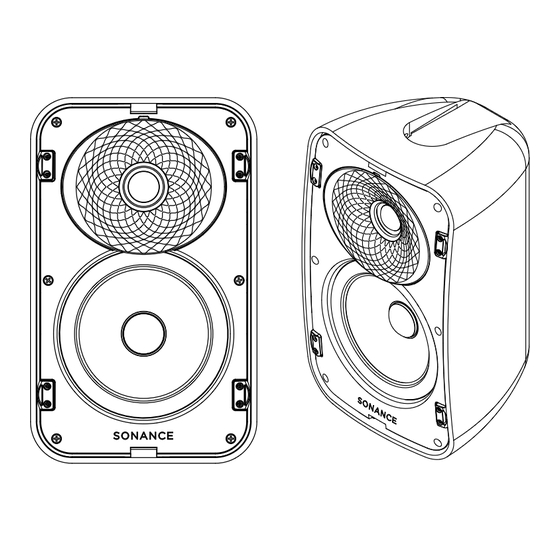

- Page 1 MARINER MX OUTDOOR SPEAKERS ® MX52 | MX56 | MX62 | MX66 | MX86 | MX52 SST | MX62 SST INSTRUCTION MANUAL...
-
Page 2: Important Safety Instructions
Warranty 10. Refer all servicing to qualified service personnel. BOX CONTENTS Sonance Mariner ® 2-Way Speaker (MX52, MX56, MX62, Sonance Mariner Single Stereo Technology ® Speaker MX66, MX86): (MX52 SST, MX62 SST): (2) Speakers (1) Speaker (2) Speaker Grilles... -
Page 3: Product Features
PRODUCT FEATURES Waveguide Terminal Cover High Resolution Chambered Tweeter Concealed Speaker Spring Terminals High Excursion Woofer Grille Clips FastMount Bracket Retention Powder Coated Aluminum Grille Rotation Lock Paintable Shell (white only) Cable Pass-Through FastMount Bracket... -
Page 4: Wall/Ceiling Mounting
POLE MOUNTING WIRE GAUGE To mount the speaker on a pole, two U-bolts and nuts When installing Sonance Mariner MX Outdoor Speakers, should be used to clamp around the pole and bolt through careful consideration should be made when determining the four holes on the back of the FastMount bracket. -
Page 5: Installing The Speakers
Paint the grille separately from the speaker using very thin paint (5:1 ratio). Avoid plugging the grille holes with excess paint. INSTALLING THE SPEAKERS WARNING: Turn the amplifer’s power off until you have completed all of the connections and have determined that they are correct If the amp’s AC plug is accessible we recommend that you unplug it from the wall outlet to avoid accidental turn-on and possible damage to the... - Page 6 Connect the speaker wires to the speaker’s terminals: • Strip about 0.5” of insulation from each conductor and twist the strands together or tin them with solder. • Press down on the tops of the connectors to open them. • Insert the wires into the connector holes (see Figure 8). ...
-
Page 7: Included Accessories
MX52 SPECIFICATIONS Black Part # 93604 (PR) White Part # 93605 (PR) Tweeter 0.75” (19mm) Cloth Dome, Ferrofluid-cooled, Acoustic Back Chamber Woofer 5.25” (130mm) Textured Polypropylene Cone, Rubber Surround Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 65Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 90 Watts Maximum Sensitivity (2.83V/1M) 87dB SPL Environmental... - Page 8 MX56 SPECIFICATIONS Black Part # 93606 (PR) White Part # 93607 (PR) Tweeter 0.75” (19mm) Ceramic Dome, Ferrofluid-cooled, Acoustic Back Chamber Woofer 5.25” (130mm) Kevlar/Nomex Cone, Rubber Surround Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 60Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 100 Watts Maximum Sensitivity (2.83V/1M) 88dB SPL Environmental...
- Page 9 MX62 SPECIFICATIONS Black Part # 93608 (PR) White Part # 93609 (PR) Tweeter 1” (25mm) Cloth Dome, Ferrofluid-cooled, Acoustic Back Chamber Woofer 6.5” (165mm) Textured Polypropylene Cone, Rubber Surround Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 55Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 125 Watts Maximum Sensitivity (2.83V/1M) 89dB SPL Environmental...
- Page 10 MX66 SPECIFICATIONS Black Part # 93610 (PR) White Part # 93611 (PR) Tweeter 1” (25mm) Ceramic Dome, Ferrofluid-cooled, Acoustic Back Chamber Woofer 6.5” (165mm) Kevlar/Nomex Cone, Rubber Surround Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 50Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 140 Watts Maximum Sensitivity (2.83V/1M) 90dB SPL Environmental...
- Page 11 MX86 SPECIFICATIONS Black Part # 93612 (PR) White Part # 93613 (PR) Tweeter 1.2” (30mm) Ceramic Dome, Ferrofluid-cooled, Acoustic Back Chamber Woofer 8” (203mm) Kevlar/Nomex Cone, Rubber Surround Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 45Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 150 Watts Maximum Sensitivity (2.83V/1M) 91dB SPL Environmental...
- Page 12 MX52 SST SPECIFICATIONS Black Part # 93614 (EA) White Part # 93615 (EA) Tweeter 0.75” (19mm) Cloth Dome, Ferrofluid-Cooled, Acoustic Back Chamber, Dual Voice Coil Woofer 5.25” (130mm) Textured Polypropylene Cone, Rubber Surround, Dual Voice Coil Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 65Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 90 Watts Maximum Sensitivity (2.83V/1M) 87dB SPL Environmental...
- Page 13 MX62 SST SPECIFICATIONS Black Part # 93616 (EA) White Part # 93617 (EA) Tweeter 1” (25mm) Cloth Dome, Ferrofluid-Cooled, Acoustic Back Chamber, Dual Voice Coil Woofer 6.5” (165mm) Textured Polypropylene Cone, Rubber Surround, Dual Voice Coil Dispersion Technology Sinusoidal Textured Waveguide Frequency Response 55Hz - 20kHz +/-3dB Impedance 8 ohms Nominal (6 ohms Minimum) Power Handling (RMS) 5 Watts Minimum to 125 Watts Maximum Sensitivity (2.83V/1M) 89dB SPL Environmental...
-
Page 14: Technical Assistance And Service
Contact Sonance directly at (949) 492-7777 or at www.sonance.com YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN YOUR UNIT. If you are returning the product directly to Sonance, call us to obtain a return authorization number before shipping. Ship the product via United Parcel Service, Federal Express, or other package delivery service. - Page 15 For the latest Sonance product specification information visit our website: www.sonance.com SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777 •...
