Huion GS1333 User Manual

Hide thumbs

Advertisement

Table of Contents

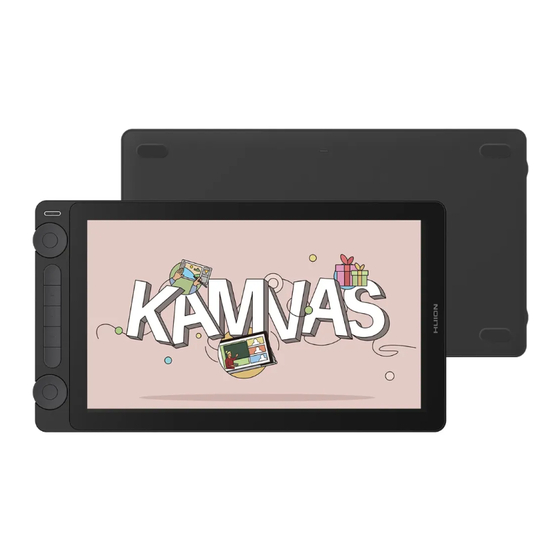

GS1333
Kamvas 13 (Gen 3)
Thanks for choosing the HUION Kamvas series pen displays.
Kamvas 13 (Gen 3) is a new generation of creative drawing pen displays with dual
side-mounted dial controllers for designers. Boasting high performance and
versatility, Kamvas 13 (Gen 3) provides an unparalleled drawing and creation
experience for its users.
To ensure that you fully understand and efficiently use this product, we strongly
recommend that you read this user manual carefully.
Note: The pictures in the manual are for reference only and are intended to assist you in
understanding the design and function of the product. A change in design or specification may
occur without notice.
www.huion.com
1 / 56

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS1333 and is the answer not in the manual?

Questions and answers

Related Manuals for Huion GS1333

Summary of Contents for Huion GS1333

  • Page 1 GS1333 Kamvas 13 (Gen 3) Thanks for choosing the HUION Kamvas series pen displays. Kamvas 13 (Gen 3) is a new generation of creative drawing pen displays with dual side-mounted dial controllers for designers. Boasting high performance and versatility, Kamvas 13 (Gen 3) provides an unparalleled drawing and creation experience for its users.
  • Page 2 PW600L Digital Pen * 1 PH06 Pen Holder * 1 PN06 Pen Nib * 10 (Included in the pen holder) ST300 Stand * 1 (Optional) Cleaning Cloth * 1 Glove * 1 Quick Start Guide * 1 www.huion.com 2 / 56...
  • Page 3 2. If the screen does not light up, or the screen flicker or black screen issues occur, please plug one end of the USB-C power cable(2) into the first USB-C port on the side of the pen display and the other end into a power adapter, and connect the www.huion.com 3 / 56...
  • Page 4 Tip: Full-featured USB-C cable and power cable need to be purchased separately (available at  HUION Store). The interface of the connected device (computer/mobile phone/tablet) should support the  USB 3.1 GEN1 data transfer protocol and DP 1.2 and later, and the power supply specification should be at least 5V/2A.

  • Page 5: Functions Overview

    ②④ Controller A Press and hold the function-switch button for 3s to ④: Function-switch bring up the Radial menu, rotate the dial controller to Button B + Dial select among several functions, and then press the www.huion.com 5 / 56...
  • Page 6 Please follow the instructions about how to connect via Full-functioned a full-featured USB-C cable provided on the page to ⑥ Type-C Port properly connect the pen display to your computer via this port. This port supports graphic input. www.huion.com 6 / 56...

  • Page 7: Driver Installation

    ④ If you uninstall the driver, the pen display may experience no pressure sensitivity or other unknown issues in certain applications. In this case please reinstall the driver and your pen display will return to its default settings. www.huion.com 7 / 56...
  • Page 8 Double-click the driver and click “OK” to proceed. Check the box to agree with the User Agreement and click “Install Now”. After the installation has been completed, click on “Try it now”. www.huion.com 8 / 56...
  • Page 9 GS1333 A picture of Kamvas 13 GS1333 will appear on the driver interface to indicate a successful connection. Now you can use your pen display. www.huion.com 9 / 56...
  • Page 10 Click Driver-Kamvas 13 to get the latest driver for your device. Unzip the driver file and drag the “HuionTablet” icon into the “Applications” folder. Open the folder and then find and double-click the HuionTablet driver application. www.huion.com 10 / 56...
  • Page 11 Go to Security & Privacy > Privacy > Accessibility settings and click the lock icon to unlock the settings. Tick the checkbox on the left of the HuionTablet driver application to enable accessibility. Then click the lock icon to lock the settings. www.huion.com 11 / 56...
  • Page 12 GS1333 A picture of Kamvas 13 GS1333 will appear on the driver interface to indicate that the pen display is successfully connected to your computer. Now you can use your pen display. www.huion.com 12 / 56...
  • Page 13 After rebooting the device, you can access the system main menu to find the Huion Tablet driver and then open it to finish some settings. If you are running Linux operating system on VMware, you must use the VMware Workstation Pro version.
  • Page 14 GS1333 3.Input the following command:“sudo sh install.sh” , and press the enter key on the keyboard to make your Linux device execute it. 4.Enter the user password to complete the installation. www.huion.com 14 / 56...
  • Page 15 5.Please reboot your Linux device to run the driver, or the driver will not be useful. 6.A picture of Kamvas 13 GS1333 will appear on the driver interface to indicate that the pen display is successfully connected to your computer. Now you can use your pen display. www.huion.com 15 / 56...
  • Page 16 GS1333 www.huion.com 16 / 56...
  • Page 17 1.Open the command window in the folder of the driver. 2.Input the following command in the command window: “sudo sh uninstall.sh”, and press the enter key on the keyboard to make your Linux device execute it. 3.Enter the user password to complete the uninstallation. www.huion.com 17 / 56...
  • Page 18 1.Open the folder and double-click the driver file in deb format to enter the system default interface of installing the driver on the application store, then click to install. 2.Enter the user password to complete the installation. www.huion.com 18 / 56...
  • Page 19 GS1333 3.Please reboot your Linux device to run the driver, or the driver will not be useful. www.huion.com 19 / 56...
  • Page 20 4.A picture of Kamvas 13 GS1333 will appear on the driver interface to indicate that the pen display is successfully connected to your computer. Now you can use your pen display. www.huion.com 20 / 56...
  • Page 21 2.Find the driver and click to uninstall it. Tips: If you can't access the system’s built-in application store, you can search out the driver file, huiontablet_xxx.deb, then double-click it to enter the installation interface, and click the remove button to uninstall it. www.huion.com 21 / 56...
  • Page 22 Select an icon or file with the pen tip, then slide the pen tip across the screen to move it to the target location. Use the Pen Buttons: The digital pen supports customizable pen button functions and users can program www.huion.com 22 / 56...
  • Page 23 2. Tilt the pen and pull out the worn nib through the built-in nib clip on the back of the pen holder. 3. Insert a replacement nib straight into the barrel of the pen until the nib stops moving forward. www.huion.com 23 / 56...
  • Page 24 Key, Mode selection, Pressure Sensitivity Adjustment, and Pressure Test. See Section Store Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion ’ s other products or accessories here.
  • Page 25 “ ” jump Forum website https://support.huion.com/en/support/home to get a user manual or feed back the problems to us. Switch between Devices The Driver is able to support two devices at most. Functions of them can be customized by users respectively. When switch to one of them, functions change to its corresponding ones.
  • Page 26 Note: The performance of functions in the table below is up to the device that you have connected. And this table is subject to change without notice. The settings of the press keys’ functions can be found in the following list. The functions of the press keys can be set as: www.huion.com 26 / 56...
  • Page 27 Then, press and hold the pen button to lock in that brush size as long as you are pressing and holding the button. When None is selected, the key will not perform any function when None pressed. Note: The pictures are for reference only. www.huion.com 27 / 56...
  • Page 28 “Fix” once the menu will be fixed on the desktop while after a second try the “Fix” button changes to“Close”and the menu disappears (see picture 3). Put the cursor on the menu to drag it. Picture1 www.huion.com 28 / 56...
  • Page 29 In mirror mode (All monitors display the same content), the pen display maps to the entire screen on each monitor and cursors displayed on them move simultaneously. Define the pen display area that will be mapped to the monitor. Three modes on the driver can be chosen: www.huion.com 29 / 56...
  • Page 30 The ratio of the active pen display area depends on that of the display device, which as a general rule. In Screen Ratio mode, these two ratios keep the same. [3] Custom Area: www.huion.com 30 / 56...
  • Page 31 Users can adjust the working area of the pen display by changing the outlines of the smaller rectangle. Users can also drag the two blue rectangles to select the active areas of the digital pen on the screen and the pen tablet. (see picture 1 and 2). Picture 1 www.huion.com 31 / 56...
  • Page 32 GS1333 Picture 2 7.2.3. Rotate Working Area Change the direction of the pen display to adapt to the left- and right-handed operation. You can rotate the pen display by 0°, 90°, 180° or 270°. www.huion.com 32 / 56...
  • Page 33 GS1333 Picture1 Picture2 www.huion.com 33 / 56...
  • Page 34 Click Monitor Calibration tab and follow the instructions to calibrate your pen display. Please use the digital pen to click on the center red dot of the cross in a common pen-holding posture. You can cancel Calibration and restore default. www.huion.com 34 / 56...
  • Page 35 You can use this digital pen to interact with your device, including drawing, writing, moving files, or activating the functions of pen press keys. The setting of the pen press keys is the same as the Press Key setting of the display. Please refer to it.See Section www.huion.com 35 / 56...
  • Page 36 Click the drop-down button to set its activity. In Valid mode, the pen can complete specified actions such as clicking, double-clicking, and dragging when you tap the pen on the screen. In Invalid mode, the pen can control the movement of the cursor, but cannot complete specified actions. www.huion.com 36 / 56...
  • Page 37 Microsoft Windows provides extensive support for pen input. When the “Enable Windows Ink” option is ticked, pen features are supported in software such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6, etc. Note: macOS and Linux OS do not support this feature. www.huion.com 37 / 56...
  • Page 38 Draw lines in the Pressure Test box with the pen, and the bar on the right will  simultaneously show the pressure changes on the pen nib. Click the “Delete” button above to remove the lines, reset the pressure sensitivity level and test it until you find the appropriate pressure sensitivity level. www.huion.com 38 / 56...
  • Page 39 GS1333 A steep curve means a more sensitive response.  www.huion.com 39 / 56...

  • Page 40: Driver Setting

    "Saturation" value by dragging the blue slider. When selecting “USER” mode, you can adjust the "Brightness" value, “Contrast Ratio” value, and "Saturation" value by dragging the blue slider. Brightness: You can drag the corresponding slider to adjust the brightness of the screen. www.huion.com 40 / 56...
  • Page 41 If you want to change the display settings, please use the full-featured USB-C cable to connect your device, or make adjustments by long pressing the power button for 3s to bring up the pen-enabled OSD menu. www.huion.com 41 / 56...
  • Page 42 Export settings: Click Export to export the current settings data locally. Import settings: Click Import, open file manager, select the configuration file, and then open it. www.huion.com 42 / 56...
  • Page 43 GS1333 Default Setting: All the settings on the current device are covered and the default settings are restored. www.huion.com 43 / 56...
  • Page 44 If it is opened with administrator privilege, this item will not be displayed. If it is not opened with administrator privilege, this item will be displayed. www.huion.com 44 / 56...
  • Page 45 Click "Feedback" to send a feedback email if you have any question about the driver; Click "Uninstall" to delete the current driver. If you can't click or draw or there is no pressure sensitivity under the software, click "Software Diagnosis" to find out www.huion.com 45 / 56...

  • Page 46: Dial Setting

    Radial menu. 7.5.1. Customize Mode In Customize mode, dual dial controllers can be programmed respectively to perform different functions in the driver. Steps: Open the driver, click “Dial Setting” and choose Dial1/Dial2 to set its function. www.huion.com 46 / 56...
  • Page 47 GS1333 In the menu bar that pops up, set any functions for the selected dial controller. Dial Functions: Default The default three functions of a dial controller are “Zoom www.huion.com 47 / 56...
  • Page 48 In Clip Studio Paint, you can set the dial controller to zoom in/out Clip Studio Paint or rotate canvas. TVPaint In TVPaint Animation, you can set the dial controller to go to Animation previous/next frame, adjust selected parameters, and switch layers. www.huion.com 48 / 56...
  • Page 49 Note: When you customize the dial controller to “Mouse”, “Multimedia”, “Photoshop”, “Lightroom”, “Premiere”, “Clip Studio Paint”, and “TVPaint Animation”, you can select “Reverse” to reverse the functions of the Dial/Touch key in different directions. www.huion.com 49 / 56...
  • Page 50 Tip: On a computer running Windows 10 or later, the dial controller in Radial mode can be used within Photoshop to adjust size, opacity, flow, smoothing and control of all brush-like tools. ① Press and hold the function-switch button for about 3s to bring up the Radial www.huion.com 50 / 56...
  • Page 51 ③ When the “Brush Settings” panel appears as shown below, you can rotate the dial controller to select following functions (size, opacity, flow, smoothing and control). After choosing the corresponding function, press the function-switch button, and then rotate the dial controller left and right to adjust the parameter. Size www.huion.com 51 / 56...

  • Page 52: Scene Mode

    When "USER" mode is chosen, all three bars will be blue and users can adjust the brightness, contrast, and saturation by dragging them. www.huion.com 52 / 56...

  • Page 53: Color Temperature Settings

    If “6500K” , “7500K” , or “9300K” is chosen, all three bars will be dark and users can not adjust “R(Red)”, “G(Green)”, or “B(Blue)”. When "USER" mode is chosen, all three bars will be blue and users can adjust “R(Red)”, “G(Green)”, and “B(Blue)” by dragging them respectively. www.huion.com 53 / 56...
  • Page 54 Temperature” adjustment interface can be freely adjusted or selected. While in sRGB, Rec.709, and Adobe RGB color spaces, to ensure that the standards of the three color spaces can be met as far as possible, only "Brightness" in "USER" mode can be adjusted. www.huion.com 54 / 56...

  • Page 55: General Settings

    ④16:9: change the aspect ratio of viewable area to 16:9. ⑤Reset: All the settings of the OSD menu will be reset to default ones. Note: The pen-enabled OSD menu will automatically close if no operations are performed for a few moments. www.huion.com 55 / 56...

  • Page 56: Troubleshooting

    Please uninstall all the drivers, close the The pen tablet cannot sense drawing software, and then reinstall the Huion driver. It is the pen pressure while the suggested to restart your computer after finishing the installation.
