G&G GG-HH1001B Product Manual

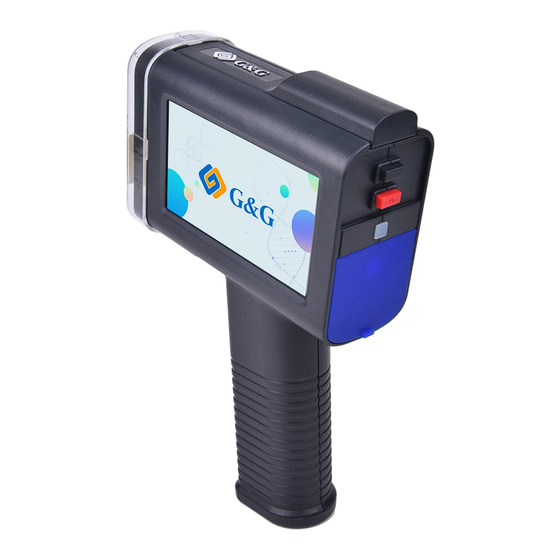

Handheld printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Handheld printer product manual
1 / 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GG-HH1001B and is the answer not in the manual?

Questions and answers

Related Manuals for G&G GG-HH1001B

Summary of Contents for G&G GG-HH1001B

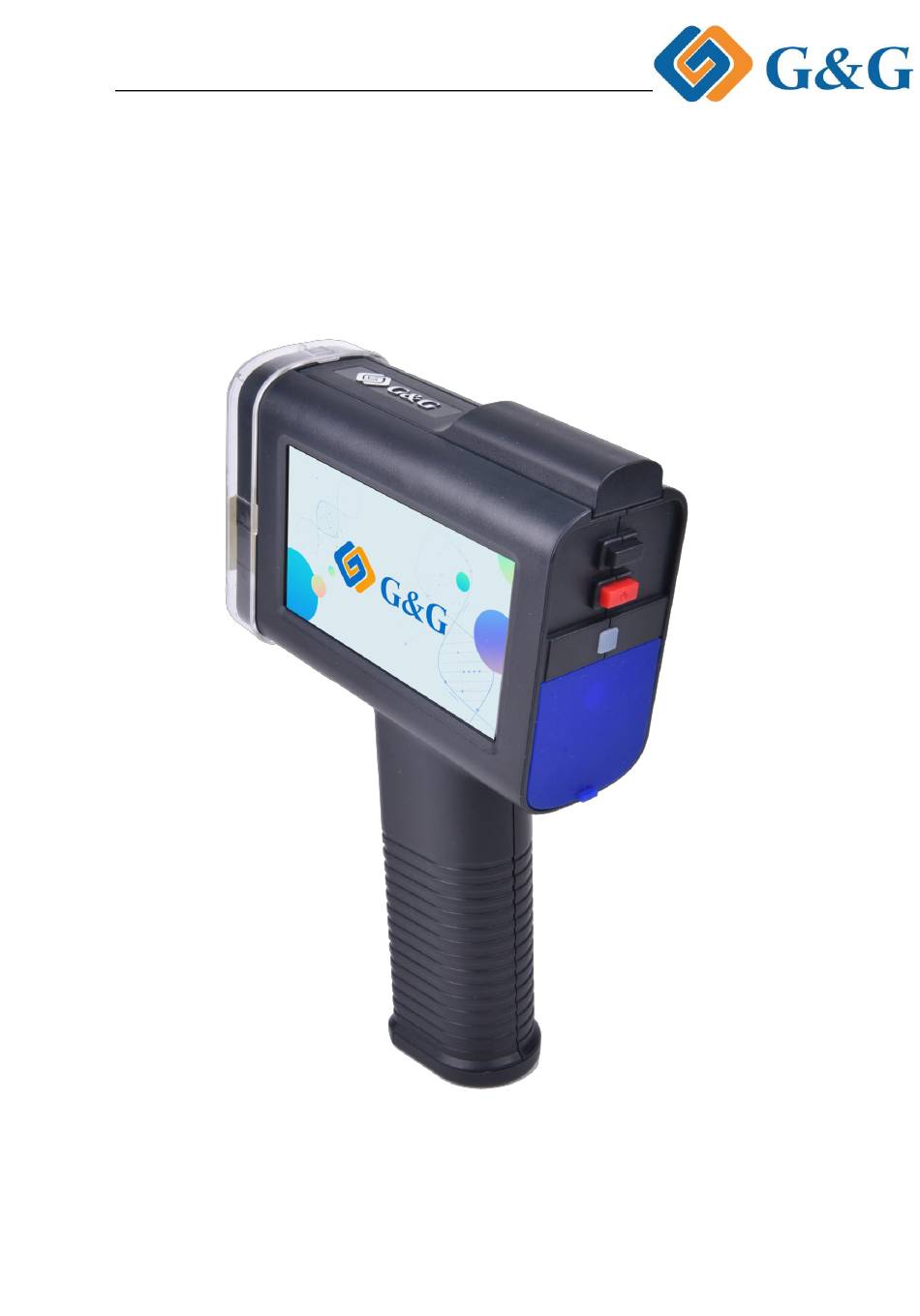

  • Page 1 Handheld printer product manual 1 / 31...

  • Page 2: Table Of Contents

    Handheld printer product manual Content Product introduce--------------------------------------3-6 Setting-----------------------------------------------------6-14 Maintenance-----------------------------------------------15-17 Content Edit------------------------------------------------18-25 Management-----------------------------------------------25-26 diskflash----------------------------------------------------26 Device information---------------------------------27 ------------------------------------------------------------28-32 2 / 31...

  • Page 3: Product Introduce

    Handheld printer product manual Product introduce Printer size Product structure introduction 3 / 31...
  • Page 4 Handheld printer product manual Hand-held inkjet printer parameters GG-HH1001A GG-HH1001B GG-HH1001p Model 【Gray cover】 【Blue cover】 【Orange cover】 60m/min(300dpi) Speed Resolution Up to 600dpi interface U disk Photoelectric interface, power interface Touch screen Data Entry Touch screen keyboard entry keyboard entry...
  • Page 5 Handheld printer product manual >10h 以上 Continuous working time Combined with power saving mode Product size 138*54*217mm package size 275*245*115mm Warranty One year Water absorbing Non-Water absorbing material material Application medium Metal/Glass/Plastic/Textile/Cement/Coated Paper/wood paper /PP and other films/Egg/ Accessories Handheld inkjet printer 1pcs 喷码机一台...

  • Page 6: Setting

    Handheld printer product manual Warranty GG inkjet printer warranty for one year, non-human quality problems are returned free of charge within one year, other damages provide paid repairs Setting Print Open the main interface and select“setting” 2. click print to Open the print settings interface 3.
  • Page 7 Handheld printer product manual 打印方向设置 ，系统默认为从左向右打印 Print orientation setting, the system defaults to print from left to right 打印模式设置 ,默认为 handheld 模式，Photoelectric 为扩展模式，用在生 产线 Print mode setting, The default is handheld mode，Photoelectric is an extended mode used in production lines. 打印分辨率设置...
  • Page 8 Handheld printer product manual Click √ confirm the change after all parameters or a parameter is setting Language 1. Open the main interface and select“setting” 2. Click “Language” to setting 3. Click your Language √ to confirm 4. click 8 / 31...
  • Page 9 Handheld printer product manual Power 1.Open the main interface and select“setting” 2.Click “Power” to setting 3.Setting Darken screen， Turn off screen， 9 / 31...
  • Page 10 Handheld printer product manual Auto sleep， Auto power-off 4.Click √ confirm Tone 1. Open the main interface and select“setting” “Tone” to setting 2. Click √button of screen a fter all parameters or a parameter is setting 3.Click the 10 / 31...
  • Page 11 Handheld printer product manual Screen Open the main interface and select“setting” 2.Click“Screen” to setting √button of screen a fter all parameters or a parameter is setting 3.Click the Time Open the main interface and select“setting” Click“Time” to setting 3.Set date format Date setting Format setting 11 / 31...
  • Page 12 Handheld printer product manual 3. Set time format Time setting Format setting √button of screen a fter all parameters or a parameter is setting 4. Click the Factory default 1.Open the main interface and select“setting” 12 / 31...

  • Page 13: Maintenance

    Handheld printer product manual 2.Click“Factory default” to reset Notice: Please note that the factory reset is used when the equipment software and other faults cannot be recovered. After the factory settings are restored, all the parameters that have been set will be cleared and restored to the original factory parameters.
  • Page 14 Handheld printer product manual Nozzle test 1. Point the printer nozzle to the paper 2. Click“Nozzle” prepare to printing 3. Pace the paper then pull the button to printing 4. Normal test report Repeat nozzle clean if you see printting blank Demo page 1.
  • Page 15 Handheld printer product manual 4. Normal test report FW upgrade 1. Download the latest firmware to the U disk firmwares file and insert U disk to handheld printer 2. Click “Maintenance” ，open the latest firmware 3. Click“FW upgrade” 4. Select the firmware and click √ 确认...

  • Page 16: Content Edit

    Handheld printer product manual 5. After clicking the upgrade, a warning prompt will appear, ignoring the firmware upgrade. Notice: Ensure that the battery capacity is greater than 50%, or upgrade when connected to the power supply 6. It will be power off and means finishing updated Power on and enjoy the new functions Content Edit Print related settings...
  • Page 17 Handheld printer product manual Model GG-HIP1001A GG-HIP1001B GG-HIP1001P Minimum print character height 2.5mm Maximum print character height 12.7mm print length one time 407mm quantity of one printed 5 rows Does not affect font clarity Maximum print character height is the printer default settings text format Font in Vector font...
  • Page 18 Handheld printer product manual Notice：please insert the U disk if you want to use the font that you downlanded Add &edit content Step1 Click “Edit” ， Step2 Click “Add” Step3：Select what you want to input Step4：Click √ sure your input Step5：Click √...
  • Page 19 Handheld printer product manual Add、edit、print text Click“text” to input the contents Switch case and then click √ confirm content Click 3.Set the print format setting font setting style set the font size set the font grap 4.Click √ bottom of screen to confirm the content 19 / 31...
  • Page 20 Handheld printer product manual 5.Click √ bottom of screen to confirm the format 6.Click“Print” to prepare printing 7.Point the printer nozzle to the paper pull the printing button and move printer to print Add and edit QR code Click“QR code” to input the contents 20 / 31...
  • Page 21 Handheld printer product manual Switch case and then click √ Click confirm content 3.Click √ bottom of screen to confirm the content 4.Point the printer nozzle to the paper pull the printing button and move printer to print Add and edit Bar code Click“Barcode”...
  • Page 22 Handheld printer product manual 5.Edit the format of barcode 6.Click √ bottom of screen to confirm the format 7.Point the printer nozzle to the paper pull the printing button and move printer to print landing the picture This machine only supports bmp, jpeg, png format image format, maximum 4800*150 pixels, file name qualified English characters and numbers 1.Click “Picture”...
  • Page 23 Handheld printer product manual Add and edit Date Click“Time” to edit the time format 2. Edit date format Setting Date Setting time 3. Click “Font” to set date‘s font type and grap 4. Click √ bottom of screen to confirm the content 5.
  • Page 24 Handheld printer product manual Setting font and type of number Click √ bottom of screen to confirm the content Point the printer nozzle to the paper pull the printing button and move printer to print Mixed document editing and printing Adding text ，QR code，...

  • Page 25: Management

    Handheld printer product manual 5. click the content that will mark the red frame and to move the position as you want Management file management Management of files stored in the printer, including adding files, editing files, deleting files, and renaming Group print Add a file group by ADD, move the order by up and down, and then directly print a set of files.

  • Page 26: Device Information

    Handheld printer product manual Device information Machine Consumable Pint count Battery Battery full needs 3Hours Charging Power display Charging times 26 / 31...
  • Page 27 The final printing effect depends on the smoothness of the surface of the print media. The flatter the print, the better. Which cartridge use in my printer Which printer use with？ G&G 产品型号 GG-HH1001A GG-HH1001B GG-HH1001B plus ● ● ●...
  • Page 28 Handheld printer product manual ● ● ● GA-001C ● ● ● GA-001M ● ● ● GA-001Y ● ● ● GA-001GREEN ● ● ○ GB-001BK ● ● ○ GB-001C ● ● ○ GB-001M ● ● ○ GB-001Y ● ● ○ GB-001GREEN ●...
  • Page 29 Handheld printer product manual Notice Please note that some places cannot be print 耗材 Advantage notice GA001 The printing content on certain Cannot be printed on paper with a glossy coating printing media is not 100% scratch-resistant. GB001 The printing content on certain Washing products with alcohol, acetone or thinner printing media is not 100% can remove the contents printed by G&G handheld...

  • Page 30: Faq

    Handheld printer product manual How to handle print defects Notice：This machine belongs to the industrial small character printing, the ink uses quick-drying ink, and when it is used in a small amount, it should be changed to the protective cover as soon as possible after use.
  • Page 31 Handheld printer product manual Error code Inkbox not installed The ink cartridge is not suitable for installation. Please install the ink cartridge correctly. For details, please refer to the applicable consumables for machine consumables. The inkbox error 06/05 The ink cartridge is not suitable for installation. Please install the ink cartridge correctly. For details, please refer to the applicable consumables for machine consumables.
