Current profiles

The +12V and +5V current profiles for the ST3400755FC and ST3300955FC models are shown below.

Note: All times and currents are typical. See Tables 2 and 3 for maximum current requirements.

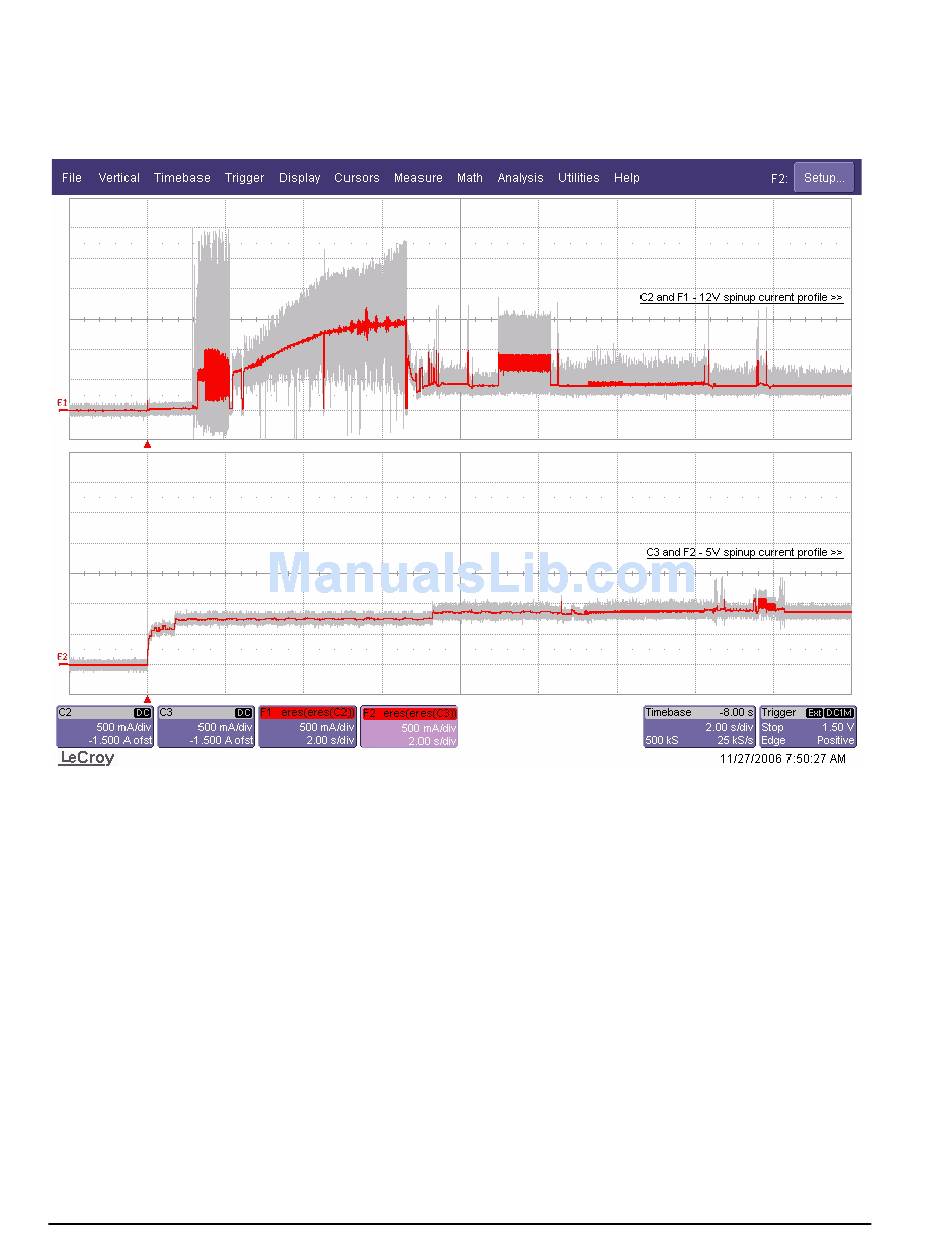

Figure 1.

Typical ST3400755FC drive, 4 Gbit, +5V and +12V current profiles

Cheetah NS FC Product Manual, Rev. A
