Chapter 3
Intel RAID Controller SRCU42X Technical
Reference
This chapter describes the characteristics of the Intel RAID Controller SRCU42X. This
chapter contains the following sections:
•
•
•
3.1
Overview
PCI is a high-speed standard local bus for interfacing I/O components to the processor and
memory subsystems in a server. The component height on the top and bottom of the
SRCU42X controller follow the PCI Local Bus Specification, Revision 2.2, and PCI-X
Addendum to the PCI Local Bus Specification, Revision 1.0a. The Intel RAID Controller
SRCU42X is used in PCI-X and PCI computer systems with PCI standard bracket types.

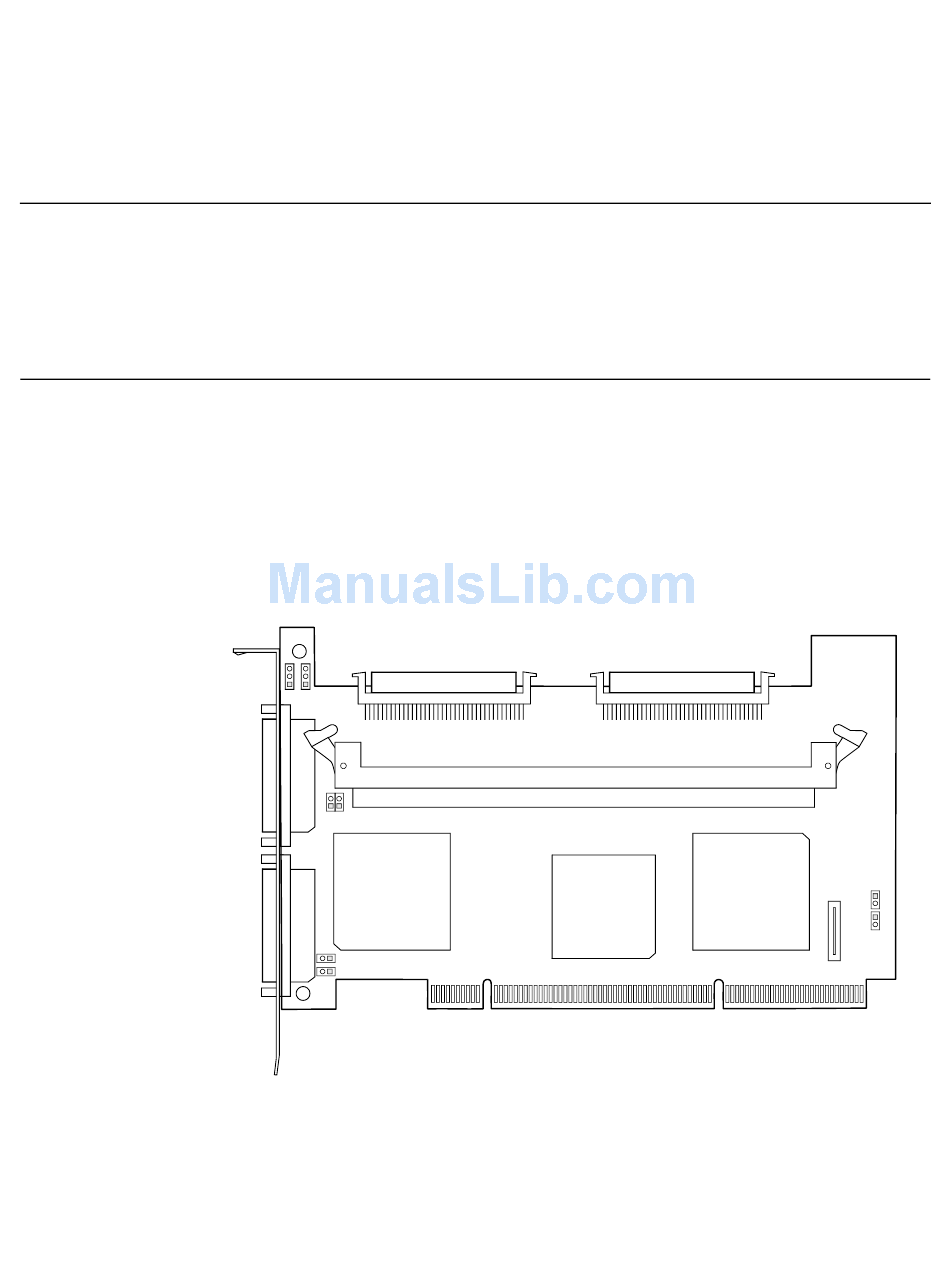

Figure 3.1
Very High-
68-pin SCSI
Connector
Channel 0
Very High-
68-pin SCSI
Connector
Channel 1
Intel RAID Controller SRCU42X
Section 3.1, "Overview," page 25
Section 3.2, "Intel RAID Controller SRCU42X Characteristics," page 27
Section 3.3, "Technical Specifications," page 27
Intel RAID Controller SRCU42X Layout
68-pin SCSI Connector
J1
J2
External
Density
J7
J19
External
Density
J14
J17
J18
Internal High-Density
Channel 0
J5
Internal High-Density
68-pin SCSI Connector
Channel 1
J6
U6
J11
J13
J12
25
