Quick Installation Guide
欢迎您选购鼎信通达旗下产品！
THANKS FOR CHOOSING DINSTAR'S IP PBX!
安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线
Please read this guide carefully before installing the device. If you need any technical
技术支持，请拨打技术支持热线电话：0755-61919966。
support,
please contact us
网址：www.dinstar.cn
Tel: +86 755 61919966
Email: support@dinstar.com
Web: www.dinstar.com

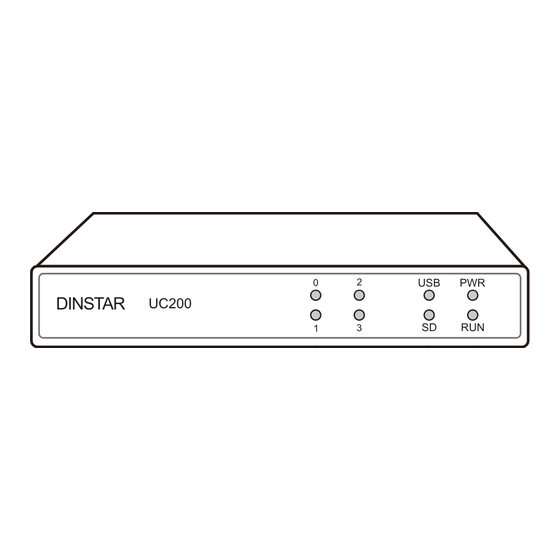

UC120
UC200
.
Advertisement
Table of Contents
Related Manuals for Dinstar UC200
Summary of Contents for Dinstar UC200
- Page 1 Quick Installation Guide UC120 UC200 欢迎您选购鼎信通达旗下产品！ THANKS FOR CHOOSING DINSTAR’S IP PBX! 安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线 Please read this guide carefully before installing the device. If you need any technical 技术支持，请拨打技术支持热线电话：0755-61919966。 support, please contact us 网址：www.dinstar.cn Tel: +86 755 61919966 Email: support@dinstar.com Web: www.dinstar.com...
-
Page 2: Description Of Indicators
Product Models & Number of Ports UC120/ UC200 Ports Model UC120-1V1S1O UC120-1V2S UC120-1V2O UC120-1S1O UC120-2S UC120-2O UC200-2S2O Description of Indicators Description Indicators Definition Status The device is switched on Power Indicator The power is switched of f or there is no power supply... - Page 3 The port is used to restart device Note: The above table does not contain all the indicator information. For more information, please refer to the user manual or contact technical support. Indicators and Ports UC120 UC120 DC12V Port 0 WiFi...
-
Page 4: Installation Attentions
IP of WAN port is DHCP, 192.168.11.1. and the default IP of LAN port is 192.168.11.1. Note: UC120 can also be connected through Wi-Fi. The default SSID of the device is "domain_ [last 6 digits of MAC address] “without password. - Page 5 Antenna Installation (UC120) Insert SIM card to SIM slot (UC120-1V1S1O /UC120-1V2S/ UC120-1V2O) Wi-Fi Antenna LTE Antenna UC120 DC12V Port 0 WiFi Port 1 Port 0 Port 1 Install Wi-Fi antenna (foldable antenna) and install LTE antenna (flat paddle Insert (with the chip facing downwards) antenna) on the rear panel.
-
Page 6: Check Network Status
Select ‘Use the following IP address’, and then enter an available IP address ‘192.168.11.XXX’ which is at the same network segment with ‘192.168.11.1’. Log in Web Management System Open a web browser and enter the IP address of LAN port (the default IP is 192.168.11.1). - Page 7 Note: The default network mode of UC120 and UC200 is router mode, and it can be set to bridge mode. In router mode, the IP address of WAN port and LAN port should be in different network segments.
- Page 8 Modify Wi-Fi Settings Wi-Fi is enabled by default. Go to "network → WLAN" page to turn off the wireless or modify relevant parameters. The default SSID of the device is "domain"_ [last six digits of MAC address] “. Except default SSID, users can create 3 more SSIDs.
-
Page 9: Trunk Configuration
Trunk Configuration Configure SIP Trunk SIP trunks are used to connect third party IPPBX or service providers. When add a SIP trunk, you should choose corresponding SIP profile based on your current network. The SIP trunk supports UDP/TCP/TLS. Also, SIP trunk status can be checked under Status → SIP page. Configure FXO You can also create Trunk/FXO. - Page 10 Configure E1/T1 Users can set up ISDN PRI/SS7/R2 connections via digital E1/T1 ports. Please be sure the E1/T1 physical connection is well connected, and PRI status is up and active before configuring the call routing. Configure Outbound / Inbound Rule On the "Call Control →...
-
Page 11: Basic Operation
CONSOLE. More Details This document only provides instructions for quick installation and basic configuration. For detailed configuration and Parameter explanation, Please refer to User Manual or ask for technical support. IP COMMUNICATION SOLUTIONS Shenzhen Dinstar Co., Ltd. Web: www.dinstar.com...
