Quick Installation Guide
UC200-2S2O
Thanks for Choosing Dinstar's VoIP Gateway
Please read this guide carefully before installing the gateway. If you need any technical support, please contact us.
Tel: +86 755 61919966
Email: support@dinstar.com
Website: www.dinstar.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the UC200-2S2O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinstar UC200-2S2O

Summary of Contents for Dinstar UC200-2S2O

  • Page 1 Quick Installation Guide UC200-2S2O Thanks for Choosing Dinstar's VoIP Gateway Please read this guide carefully before installing the gateway. If you need any technical support, please contact us. Tel: +86 755 61919966 Email: support@dinstar.com Website: www.dinstar.com...

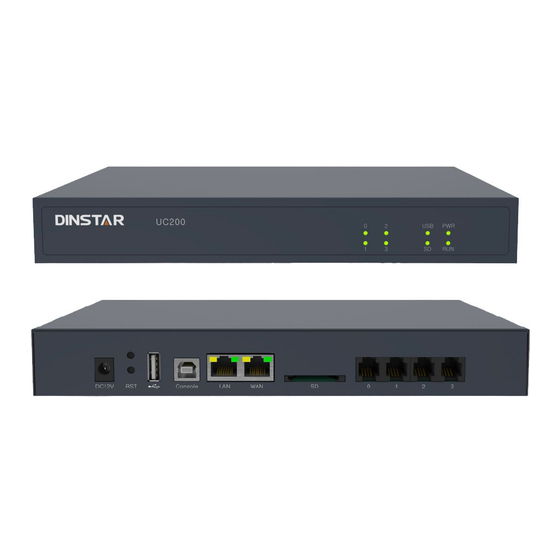

  • Page 2 1 UC200 Model and Interfaces Interface Model UC200-2S2O 2 Indicators Definition Indicators Status Description The device is powered on Power Indicator The device is powered off or there is no power supply Slow Flashing The device is running properly Running Indicator...

  • Page 3: Hardware Installation

    5 Hardware installation & network connection Connect the power adapter to power jack (All models). Connect analog phone to FXS or connect landline to FXO (All models). Connect network cable to WAN and LAN (All models) Router mode: The different IP segment UC200 supports router mode and bridge mode.
  • Page 4 6 Login Web Management System Open a web browser and enter the IP address of LAN port (the default IP is 192.168.11.1). You also can enter the IP address of WAN port, but it’s required to modify the IP address of PC to make it at the same network segment with that of WAN port.
  • Page 5 8 Create SIP Extensions On the Extension → SIP interface, you can configure the SIP accounts registered in the UC200 by SIP clients (hereby UC200 is regarded as a SIP server). If the status of new added SIP account is "enabled", it means that the UC200 accepts the registration of the extension. If the status of the SIP account is "disabled", it means that the UC200 rejected to register the extension.
  • Page 6 10 Configure outbound/inbound rule On the Call Control → Route interface, you can configure routes for incoming calls and outgoing calls. For the outbound route rule, destination can be FXO trunk, GSM trunk and SIP trunk; For the inbound route rule, the destination can be SIP extension, FXS extension, local extension, ring group or IVR.
  • Page 7 11 Regular Expression Caller/Called number prefix supports regular expression Regular Expression Syntax Matches the starting position in a number string. For example, ^134 matches the numbers starting with 134. Matches the ending position of a string. For example, 2$ matches the numbers ending with 2. Separates alternate possibilities.
  • Page 8 RST button: (1) Under normal running status, press RST button 3 to 6 seconds will restore default username/password, and network mode will be changed to route mode as well. Other configurations will keep the same; Under normal running status, press RST button 6 to 12 seconds, the device will restore factory default and reboot automatically;...
