8 SATARaid GUI Overview
The SATARaid GUI Installation program configures the SATARaid GUI to automatically start when Windows is started. If the
SATARaid GUI does not automatically start or is closed by the user, choose the JAVA SATARaid program from the Start Menu
to launch the GUI.
The SATARaid GUI monitors the system's RAID Set in the background. It runs minimized in the System Tray. To open the
main window, click the icon located on the taskbar. The icon is in blue color if all RAID sets are healthy. The icon is in red
color if there is any critical or broken RAID set.

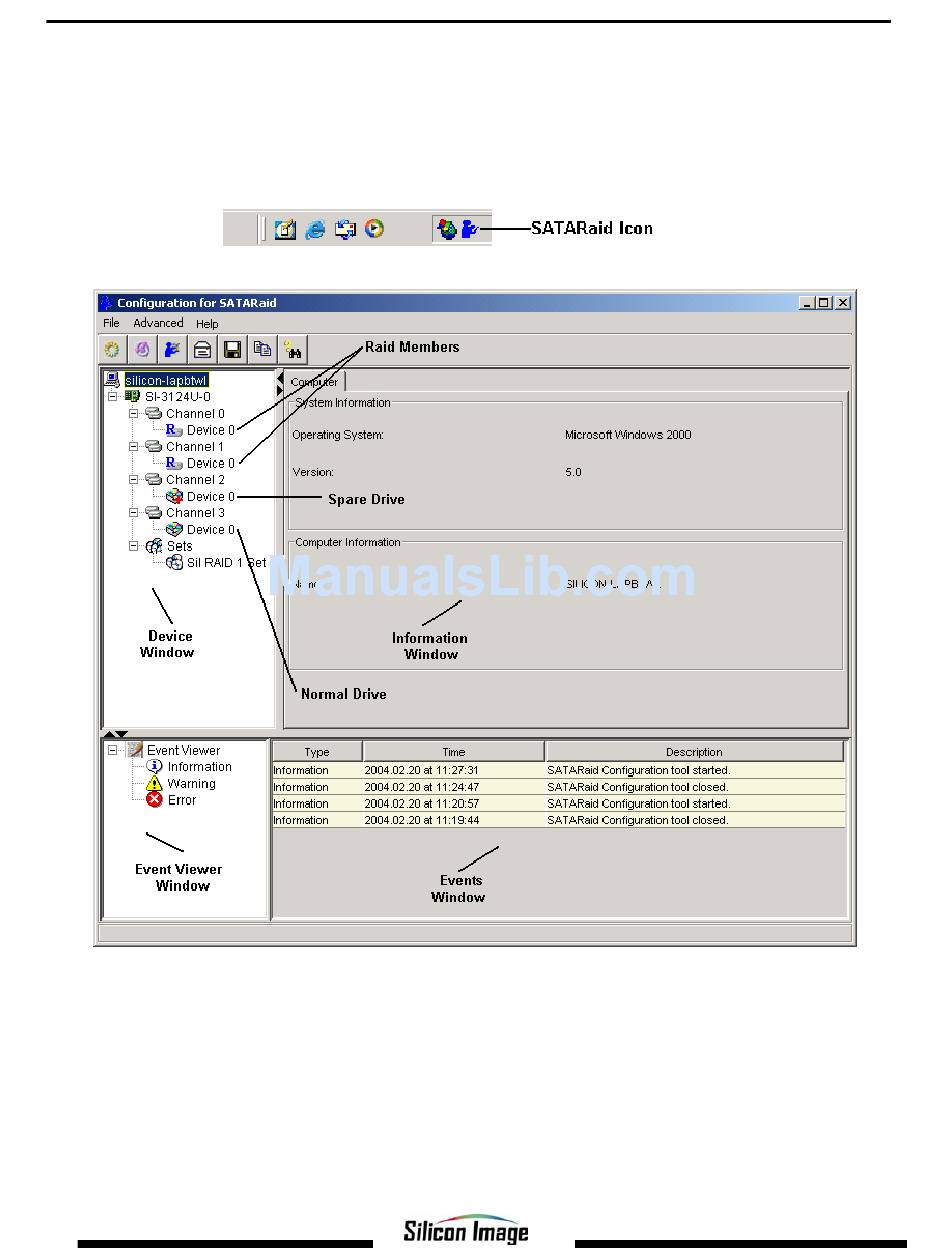

The main window will display:
8.1 Devices and Information Windows
The Devices window identifies the computer running SATARaid, SATA host adapters, SATA devices, and configured RAID
sets. Selecting each component in the configuration tree displays in the Information window data that is unique to that
component. Selecting a specific device channel will show that channel's information. Selecting a specific drive reports all
pertinent information for that drive, including the drive's serial number, firmware version, ATA version and current mode as well
as Configuration and Disk Identification information. Selecting Sets lists the Sets in the configuration tree and provides
information on RIO Version.
Right clicking on a device component which is not belong to any RAID set and is not a spare drive, a popup menu will be
displayed to let user enables/disables the device depending on the device's current state. This function is useful for safely
remove a device from the system and prevent possible data loss.
