8 SATARaid GUI Overview
The SATARaid GUI Installation program configures the SATARaid GUI to automatically start when Windows is started. If the
SATARaid GUI does not automatically start or is closed by the user, choose the JAVA SATARaid program from the Start
Menu to launch the GUI.

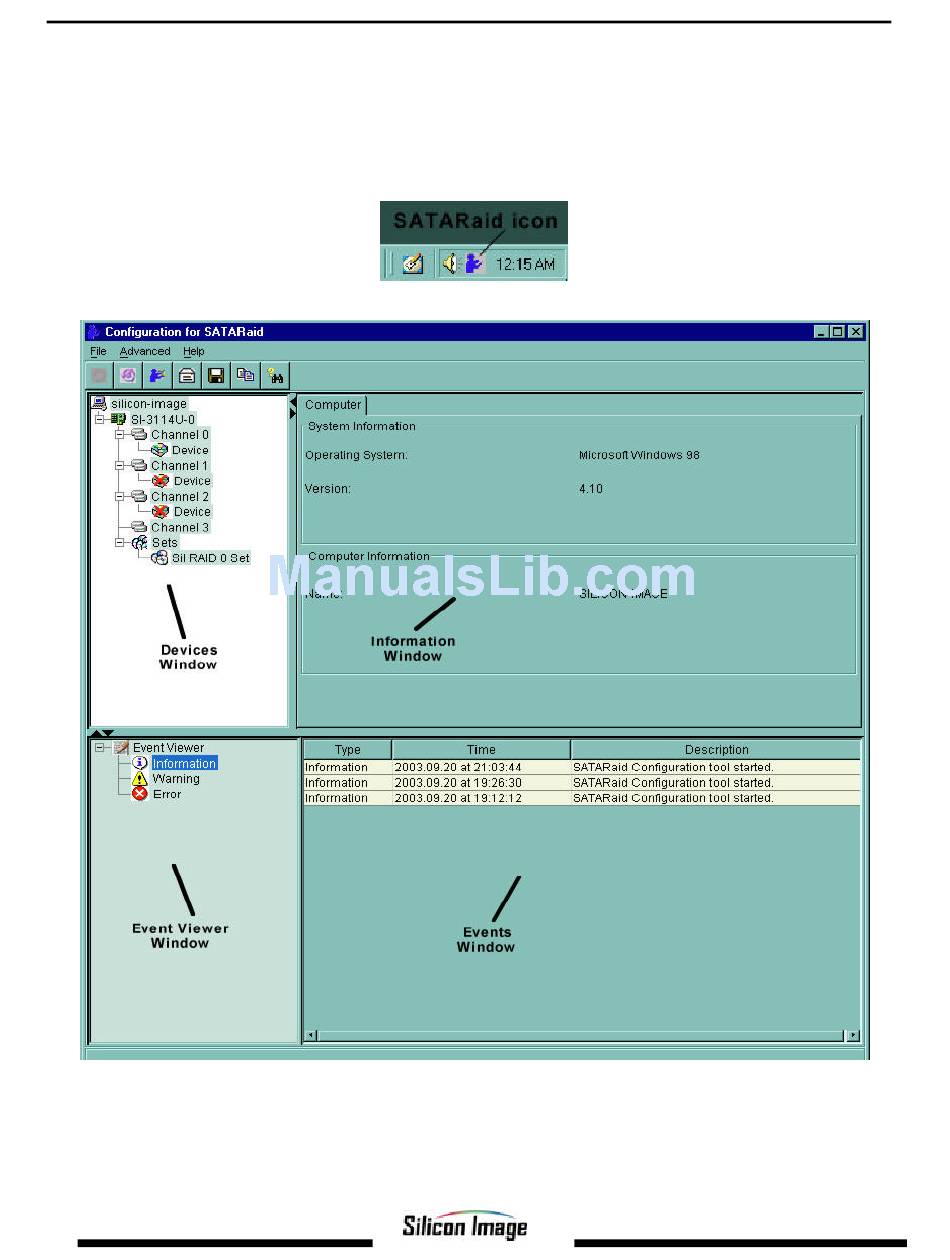

The SATARaid GUI monitors the system's RAID Set in the background. It runs minimized in the System Tray. To open the
main window, click the icon located on the taskbar.
The main window will display:
Devices and Information Windows
The Devices window identifies the computer running SATARaid, SATA host adapters, SATA devices, and configured RAID
sets. Selecting each component in the configuration tree displays in the Information window data that is unique to that
component. Selecting a specific device channel will show that channel's information. Selecting a specific drive reports all
Copyright © 2003 Silicon Image Inc.
SATARaid User's Manual
32
