03 Your driving environment
Lighting
Adjusting headlamp pattern
03

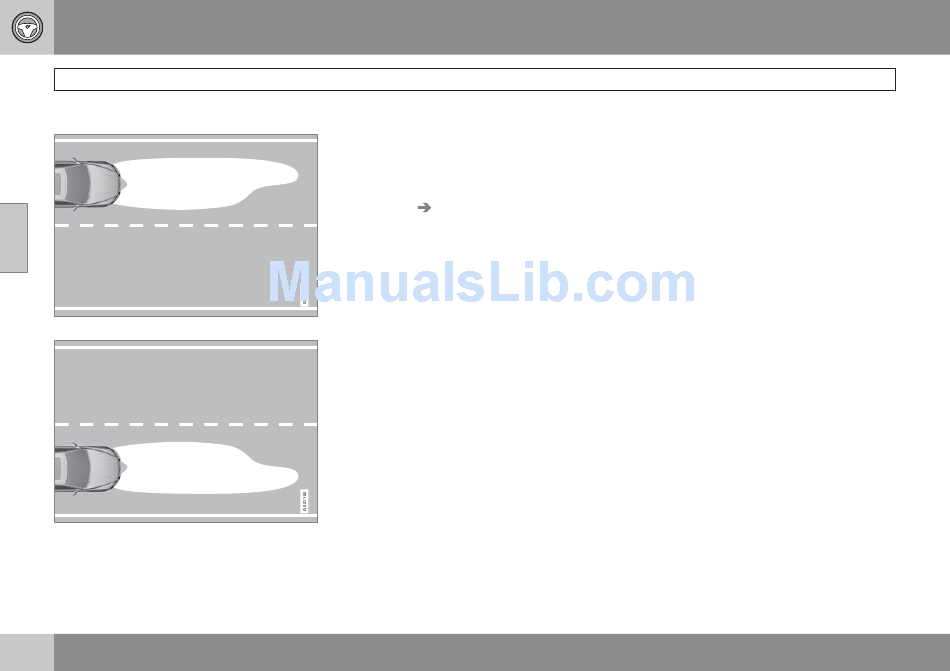

Headlamp pattern, left-hand traffic.
Headlamp pattern, right-hand traffic.
The headlamp pattern must be adjusted to
avoid dazzling oncoming motorists and can be
set for right or left-hand traffic. The correct pat-
tern will also better illuminate the verge.
*
86
Option/accessory, for more information, see Introduction.
Active Dual Xenon headlamps*
The car must be stationary with the engine run-
ning when the headlamp pattern is shifted
between right and left-hand traffic.
1. Access the menu system under
settings Light settings.
2. Select between
Temporary RH lights
Temporary LH lights
.
For a description of the menu system, see
page 120.
Halogen headlamps
The headlamp pattern for halogen headlamps
is readjusted by masking the headlamp lens.
The headlamp pattern may not be as good.
Masking the headlamps
1. Copy the A and B templates for left-hand
drive cars or the C and D templates for
right-hand drive cars with a scale of 1:1,
see page 88:
•
A = LHD Right (left-hand drive, right
lens)
•
B = LHD Left (left-hand drive, left lens)
•
C = RHD Right (right-hand drive, right
lens)
•
D = RHD Left (right-hand drive, left lens)
2. Transfer the template to a self-adhesive
waterproof material and cut it out.
3. Position the self-adhesive templates at the
right distance from the edge of the head-
lamp lens using the illustration, see
page 87, and the dimensions in the fol-
lowing list:
Car
•
Templates A and D: horizontal line
approx. 104 mm, vertical line approx.
and
20 mm
•
Templates B and C: horizontal line
approx. 167 mm, vertical line approx.
14 mm
