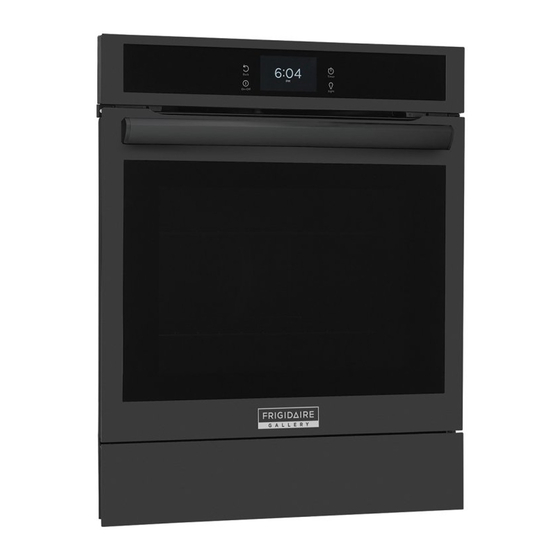

Frigidaire Gallery GCWS2438AF Installation Instructions Manual

ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a variety of cutout sizes to make the job of installing
easier. The first step of your installation should be to measure your current cutout dimensions and
compare them to the cutout dimensions chart below for your model. You may find little or no cabinet
work being necessary.
DO NOT COMBINE WITH COOKTOP. DO NOT INSTALL UNDER COUNTERTOP
B
Door Open
(see note 1)
A
NOTES:
1. Allow at least 21" (53.3 cm) clearance in front of
oven for door depth when it is open.
2. Dimension G (cutout depth) is critical to the
proper installation of the built-in oven. If the oven
trim does not butt against the cabinet, or if noise
is heard on convection models, verify dimension G
to assure it is the required depth.
A
23 1/2 (59.6 cm)
F
Min.
22 (55.8 cm)
All dimensions are in inches (cm).
Printed in Thailand
INSTALLER.
WALL OVEN INSTALLATION
2 1/8 " (5.4 cm)
C
E
D
24" Single Wall Ovens
PRODUCT DIMENSIONS
B
28 5/8 (72.7 cm) 21 7/8 (55.5 cm)
CUTOUT DIMENSIONS AND CABINET WIDTH
Max.
22 1/2 (57.2 cm) 23 1/2 (59.7 cm)
I I
Min.
G G
H H F F
31"*
(78.7 cm ) )
(5 cm)
Min.
2" (5 cm) Wide Wood Spacer if Needed
3. For a cutout height greater than the minimum (H),
add one 2 "(5 mm) wide wood shim of appropriate
height to each side of the opening under the appli-
ance side rails.
4. If the cabinet cutout is more than the minimum
dimension, the oven trim must be installed.
Figure 1
C D
22 3/4 (57.9 cm)
G H. Standard Height
(**Others, see note 3)
Min. Min.
28 1/4(71.8
cm)
1
United States
is 31" (78.7cm).
Minimum required distance is 4
½" (11.4cm).
Hole for Cord
3"
(7.6 cm)
2"
Electrical Junction Box
E
28 1/4 (71.8
cm)
I
Max.
28 7/8
24 (61 cm) Min
(73.3 cm)
809017903 Rev A
English – pages 1-9
