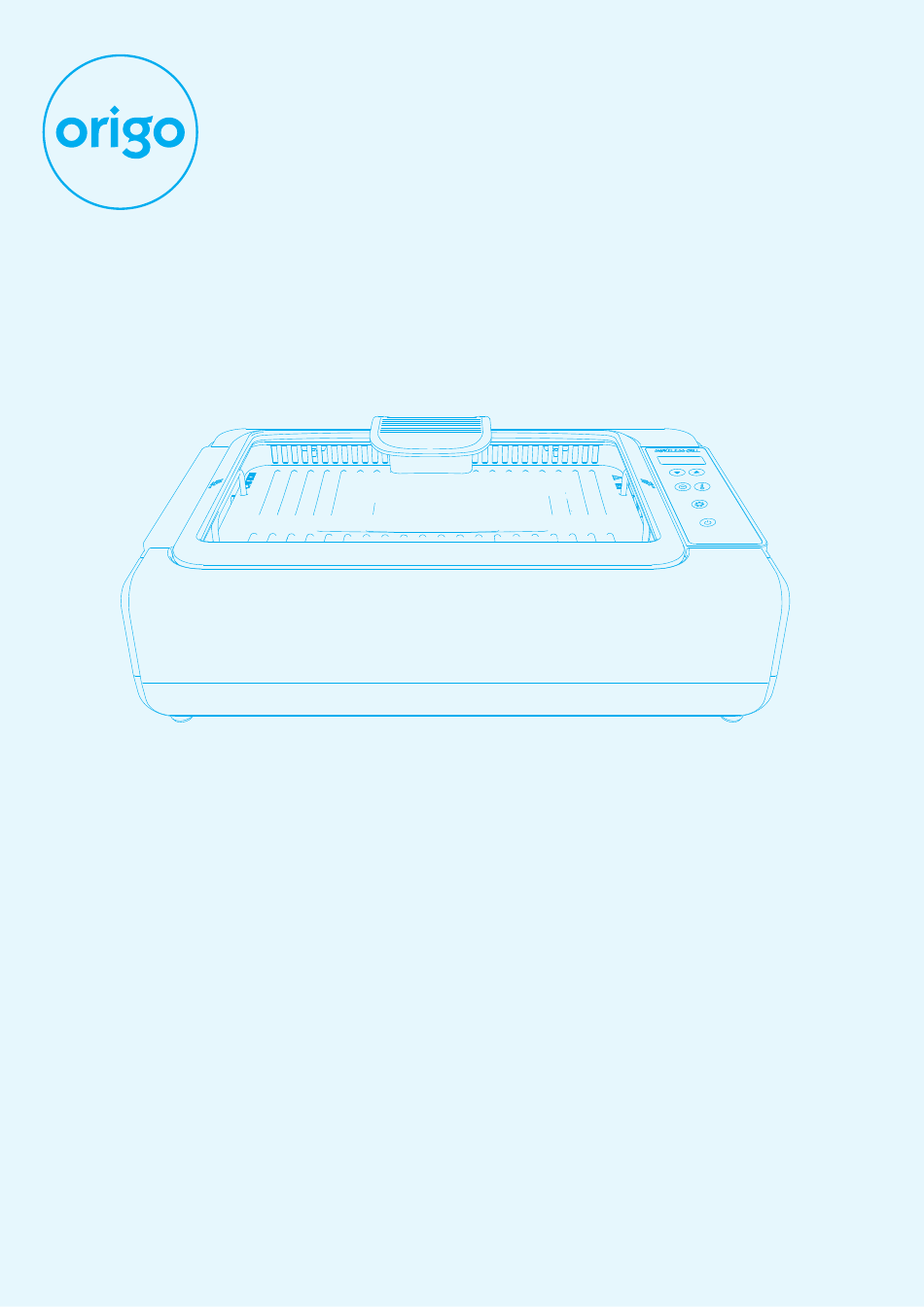

EG7500B/EG7500E/EG7500P
使用說明書
Instruction Manual
使用本產品前，請先細閱使用說明，並請妥善保存以便將來翻閱。
*
**
本說明書可於本公司網站下載 www.origo.hk。
Read all instructions carefully before using the appliance, and keep this
*
instruction for furture reference when necessary.
This instruction manual can be acquired at www.origo.hk.
**
無煙燒烤爐

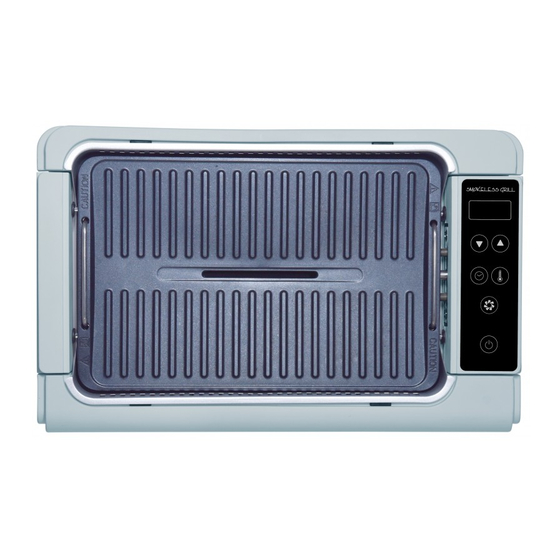

Smokeless Grill
SMOKELESS GRILL
Advertisement
Related Manuals for ORIGO EG7500E
Summarization of Contents
Important Safety Information
User Suitability and Supervision
Appliance not for persons with reduced capabilities or lack of experience, unless supervised. Children should not play with it.
Intended Use and Placement
For household/similar use. Place on stable surface. Not for external timers or remote controls.
Electrical Safety Precautions
Check voltage compatibility. Do not use with damaged cords/plugs. No extension cords. Repairs by professionals only.
Pre-Use Checks and Warnings
Inspect package for damage before use. Do not use if damaged. Check rating label voltage matches home mains.
Additional Safety Guidelines
Electrical and Location Hazards
Avoid overloading sockets, use near water/flammables, heat sources, or damp areas. Keep cord away from heat and walkways.
Operational Safety Rules
Do not dry burn. Do not heat canned goods before opening. Keep away from combustible materials.
Initial Use and Surface Care
Initial smoke/smell is normal. Do not touch hot surfaces before cool. Surface fading with long use is normal.
Main Parts Identification
Component Overview
Diagram illustrating key components: Glass Lid, Grill Plate, Heating Element, Control Panel, Power Socket, Grease Tray, Water Tray, Grill Base, Plug.
Preparation Before Use
Cleaning and Setup
Clean accessories with damp cloth. Place appliance on a level, stable surface. Remove all packaging materials.
Water Tray and Base Assembly
Place base on flat surface. Fill water tray to fill line, ensuring water is below heating element. Place water tray in base.
Component Installation
Place grease tray on base. Install heating element, aligning safety cut-off switches. Place grill plate on heating element.
Power Connection
Plug power cord into a 220-240V~50-60Hz electrical outlet. Grill is ready for use.
Using the Grill
Initial Operation Notes
First use may produce smoke/smell for ~60s due to protective oil. Grill auto-shuts off if heating element removed.
Operation Tips
Do not use without fan. Do not dry burn. Initial smoke/smell is normal. Surface fading with long use is normal.
Operating the Control Panel
Power On and Standby
Connect power, On/Off icon flashes. Press On/Off to enter standby mode, display shows '000'.
Temperature Adjustment
Use Temp Key with Up/Down keys to adjust temperature from 100℃ to 230℃.
Timer Adjustment
Use Timer Key with Up/Down keys to adjust cooking time from 20 to 120 minutes.
Fan Operation and Grilling
Press Fan Key to start fan (must run during grilling). Set 160℃, preheat 6 mins, then add food.
Shutdown and Cooling
Press On/Off Key to turn off. Unplug cord. Wait until completely cool before cleaning or moving.
Maintenance and Cleaning
General Cleaning Precautions
Always unplug before moving/servicing. Do not immerse base in water. Clean outside with damp cloth.
Cleaning Restrictions
Do not use abrasive, corrosive, or flammable cleansers. Do not use metal utensils on grill plate or other parts.
Specific Part Cleaning
Wipe outside with moist cloth. Do not soak grill plate. Do not remove/clean fan in base. Wash trays and lid separately.
Stubborn Dirt and Storage
Use warm soapy water for tough dirt. Soak grill plate with hot water/mild cleaner if needed. Store in cool, dry place.
Technical Specifications
Product Details
Model: EG7500B/EG7500E/EG7500P. Power Supply: 220-240V~50-60Hz. Rated Power: 1200W. Dimensions: 390x242x155 mm.
Warranty Information
Warranty Terms and Conditions
One year warranty (3 months commercial) for defects under normal use. Exclusions apply for misuse, unauthorized repair, and certain parts.
Service and Registration
Bring unit to service center. Requires official invoice. Register online within 10 days for an extra 3 months warranty.
