Marantz Slim-line NR1402 Specifications

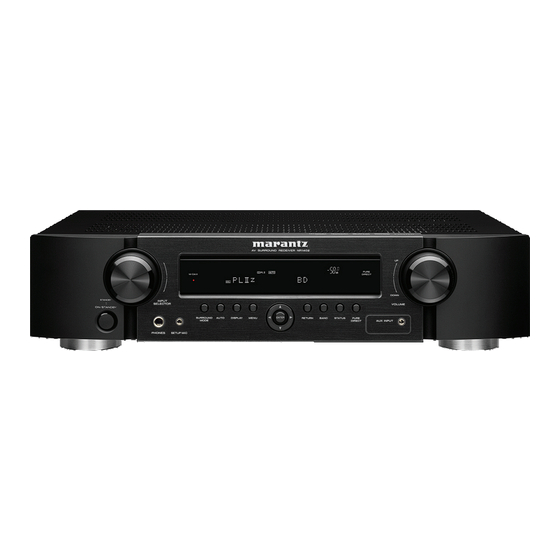

NR1402 "Slim-line" Home Theater Receiver
Put‐it anywhere convenience coupled with an incredibly flexible design; the Marantz NR1402 is the most potent Slim‐Line
series receiver to date. On Screen Display information is always available, even over HD images. An on‐screen Set Up
Wizard combines with Audyssey MultEQ, Dynamic EQ and Dynamic Volume to insure top performance while a program-
mable, 2.1 channel preamp output offers a variety of system upgrade possibilities. Why not add an amplifier and expand
your sensory horizons with surround back or front height channels?
AUDIO/VIDEO CONNECTIONS

7.1 Channel Processor

AM/FM Tuner

56Tuner Presets: Group A-G: each 8 channels

6 RCA Analog inputs (incl. Front mini jack input)

1 Optical, 1 Coaxial SPDIF Digital Inputs

4/1 HDMI ver.1.4a In/Out
CEC (Control)
ARC(Audio Return Channel)
HDMI In Stand By
Auto Lip Sync.
Deep Color, x.v.Color
Pass through in Standby mode

2/1 Component In / Out

3/1 Composite In / Out

Assignable HDMI / Component inputs

Front mini-jack for portable player

Headphone Out

Assignable 2.1 Channel Preamp-Out
ADVANCED CONNECTIONS

Bluetooth Wireless Audio Transmission Capability

External IR Receiver

Marantz D-Bus(RC-5) Remote In / Out
AUDIO/VIDEO PROCESSING

ANALOG DEVICES: SHARC 32-bit Processor

Dolby: True HD/Digital Plus&EX/Pro Logic IIz, IIx

Dolby: II/Virtual Speaker/Headphone

DTS: HD Master&High Res. Audio/ES/96/24/

DTS: Discrete&Matrix6.1/Neo:6/Express

DTS Neural Surround

Multi Ch Stereo

Audyssey MultEQ Auto Calibration w/ MIC

Audyssey Dynamic EQ / Dynamic Volume

9 Band EQ, -20dB - +6dB

Independent Crossover Setting for each speaker

Lip-sync (digital audio delay) 0-200 msec

Volume Control Setting: Limit, Power On Vol

Mute Level, Display type (dB or 0-99)

OSD output over HDMI

Set Up Wizard
NR1402 Home Theater Receiver
USER CONFIGURABLE FEATURES

Input Level Adjust

Input Assign (Component In/Digital In)

Input Rename

Input Skip

On Screen Display (TEXT)

Display Status Info.
MARANTZ AUDIO ADVANTAGE

All-discrete, 50w x 5 Class AB Output Stage

High Current Linear Power Supply

EI Core Power Transformer

Pure Direct / Source Direct

M-DAX (Marantz Dynamic Audio eXpander)

Fully Discrete Amplification

192kHz/24-bit Audio DACS
