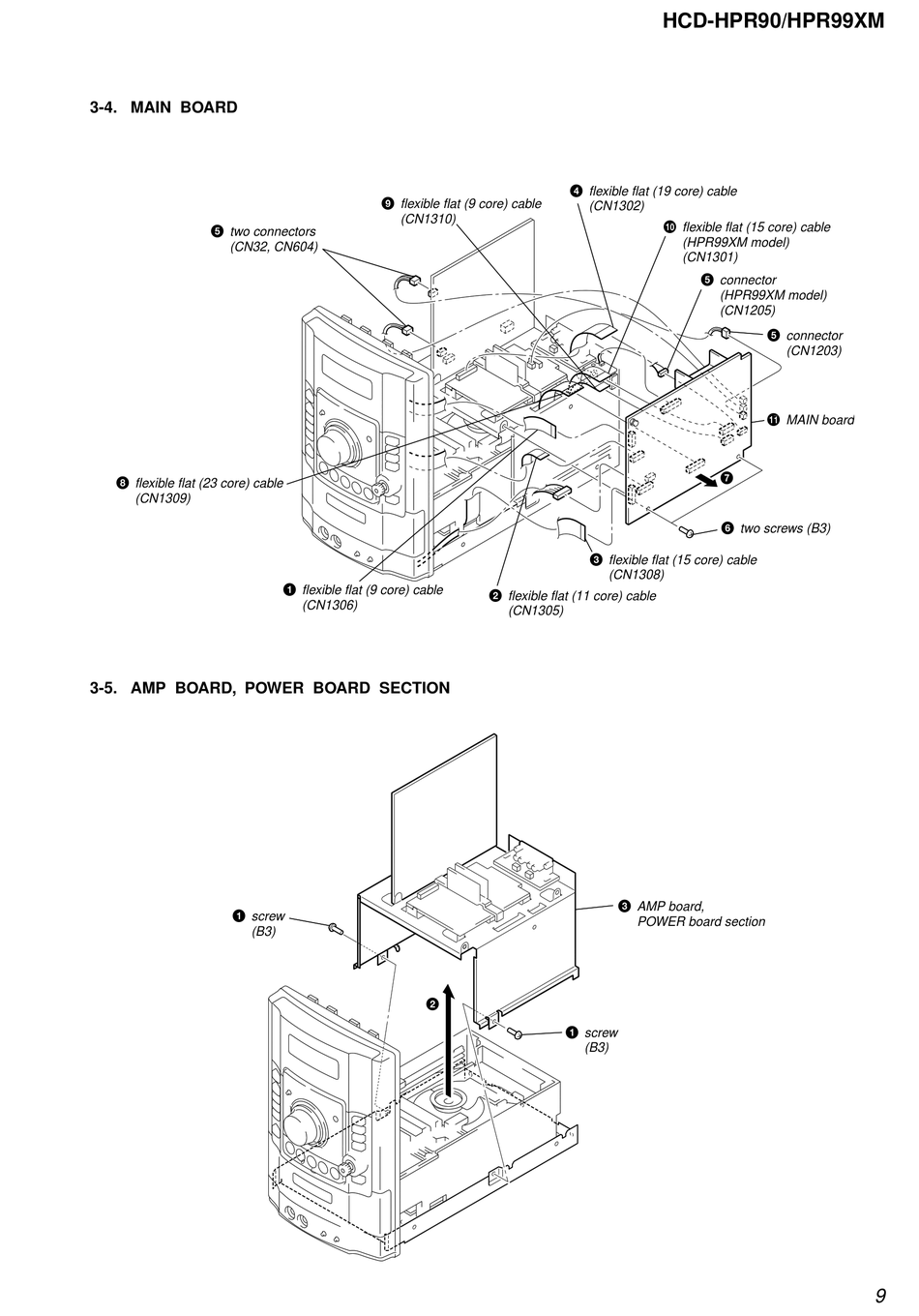

3-4. MAIN BOARD

5 two connectors
(CN32, CN604)
8 flexible flat (23 core) cable
(CN1309)

3-5. AMP BOARD, POWER BOARD SECTION

1 screw
(B3)
9 flexible flat (9 core) cable
(CN1310)
1 flexible flat (9 core) cable
(CN1306)
2
4 flexible flat (19 core) cable
(CN1302)
3 flexible flat (15 core) cable
(CN1308)
2 flexible flat (11 core) cable
(CN1305)
3 AMP board,
POWER board section
1 screw
(B3)
HCD-HPR90/HPR99XM
q; flexible flat (15 core) cable
(HPR99XM model)
(CN1301)
5 connector
(HPR99XM model)
(CN1205)
5 connector
(CN1203)
qa MAIN board
7
6 two screws (B3)
9
