HCD-HPR90/HPR99XM
Ver. 1.1
NOTE:
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet's Color
Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
7-1.

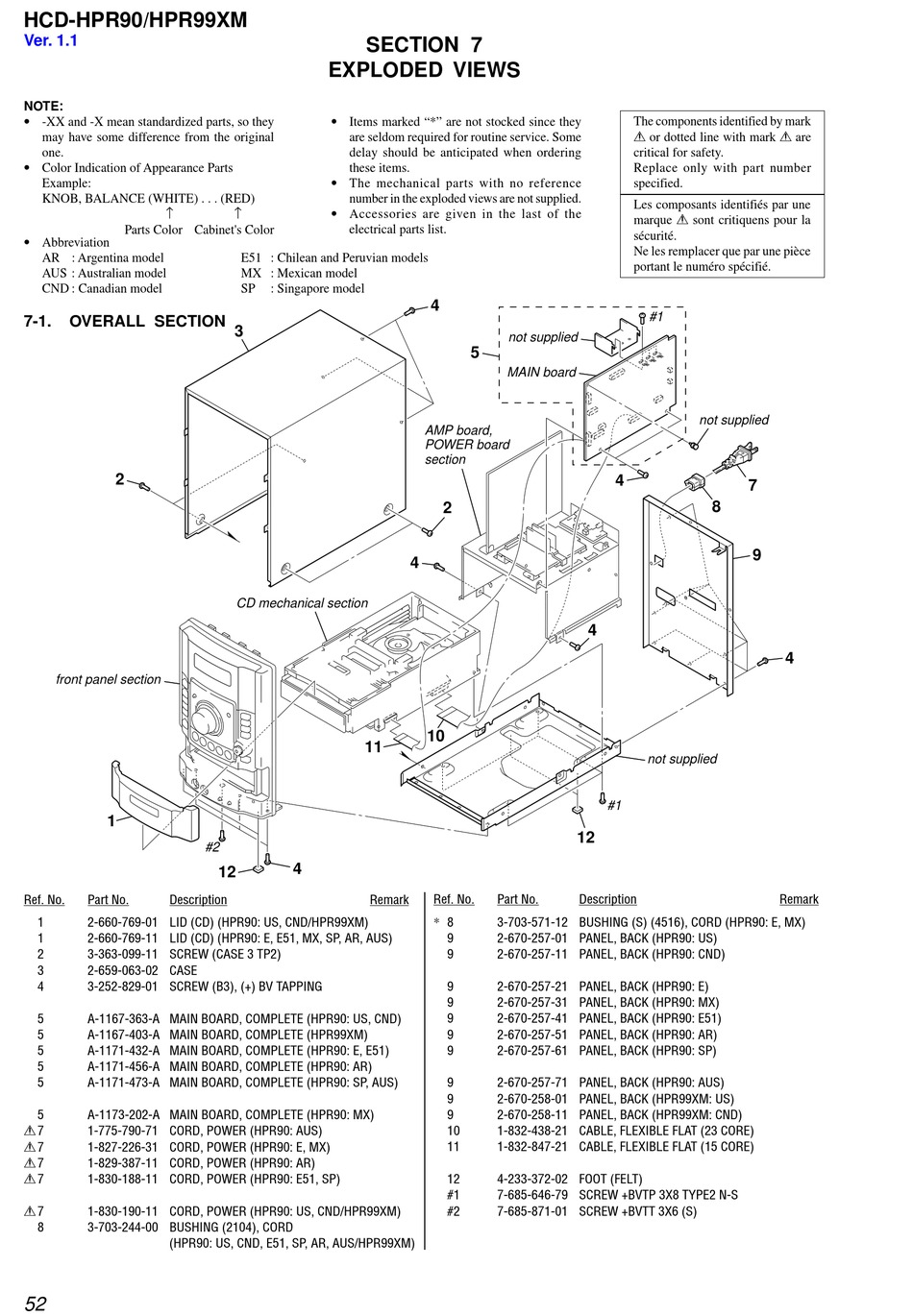

OVERALL SECTION

2
front panel section
1
Ref. No. Part No. Description
1 2-660-769-01 LID (CD) (HPR90: US, CND/HPR99XM)
1 2-660-769-11 LID (CD) (HPR90: E, E51, MX, SP, AR, AUS)
2 3-363-099-11 SCREW (CASE 3 TP2)
3 2-659-063-02 CASE
4 3-252-829-01 SCREW (B3), (+) BV TAPPING
5 A-1167-363-A MAIN BOARD, COMPLETE (HPR90: US, CND)
5 A-1167-403-A MAIN BOARD, COMPLETE (HPR99XM)
5 A-1171-432-A MAIN BOARD, COMPLETE (HPR90: E, E51)
5 A-1171-456-A MAIN BOARD, COMPLETE (HPR90: AR)
5 A-1171-473-A MAIN BOARD, COMPLETE (HPR90: SP, AUS)
5 A-1173-202-A MAIN BOARD, COMPLETE (HPR90: MX)
0 7
1-775-790-71 CORD, POWER (HPR90: AUS)
0 7
1-827-226-31 CORD, POWER (HPR90: E, MX)
0 7 1-829-387-11 CORD, POWER (HPR90: AR)
0 7
1-830-188-11 CORD, POWER (HPR90: E51, SP)
0 7 1-830-190-11 CORD, POWER (HPR90: US, CND/HPR99XM)
8 3-703-244-00 BUSHING (2104), CORD
(HPR90: US, CND, E51, SP, AR, AUS/HPR99XM)
52
SECTION 7

EXPLODED VIEWS

Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The mechanical parts with no reference
number in the exploded views are not supplied.
Accessories are given in the last of the
electrical parts list.
E51 : Chilean and Peruvian models
MX : Mexican model
SP : Singapore model
3
CD mechanical section
11
#2
4
12
Remark
4
not supplied
5
MAIN board
AMP board,
POWER board
section
2
4
10
12
Ref. No. Part No. Description
* 8 3-703-571-12 BUSHING (S) (4516), CORD (HPR90: E, MX)
9 2-670-257-01 PANEL, BACK (HPR90: US)
9 2-670-257-11 PANEL, BACK (HPR90: CND)
9 2-670-257-21 PANEL, BACK (HPR90: E)
9 2-670-257-31 PANEL, BACK (HPR90: MX)
9 2-670-257-41 PANEL, BACK (HPR90: E51)
9 2-670-257-51 PANEL, BACK (HPR90: AR)
9 2-670-257-61 PANEL, BACK (HPR90: SP)
9 2-670-257-71 PANEL, BACK (HPR90: AUS)
9 2-670-258-01 PANEL, BACK (HPR99XM: US)
9 2-670-258-11 PANEL, BACK (HPR99XM: CND)
10 1-832-438-21 CABLE, FLEXIBLE FLAT (23 CORE)
11 1-832-847-21 CABLE, FLEXIBLE FLAT (15 CORE)
12 4-233-372-02 FOOT (FELT)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
#1
not supplied
4
7
8
9
4
not supplied
#1
4
Remark
