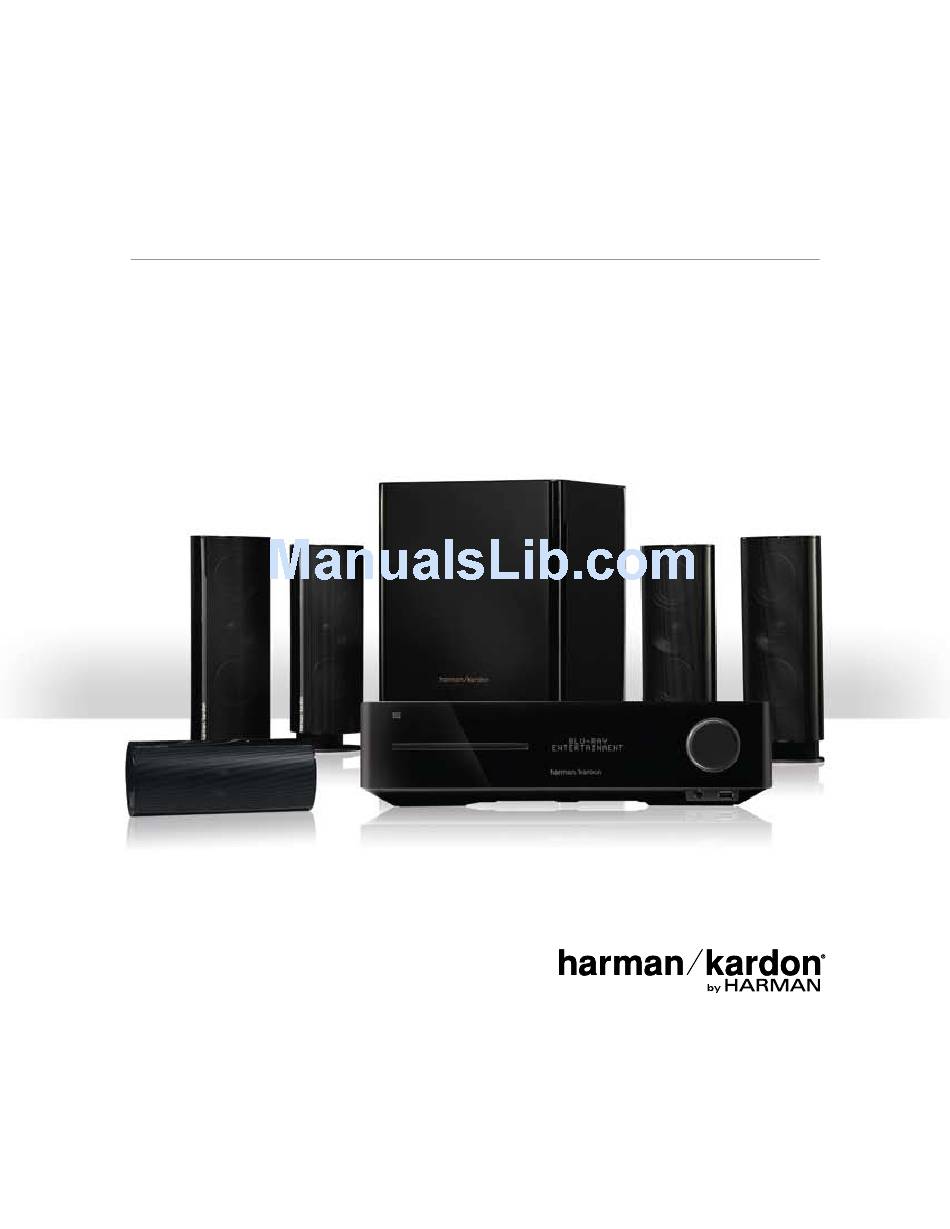

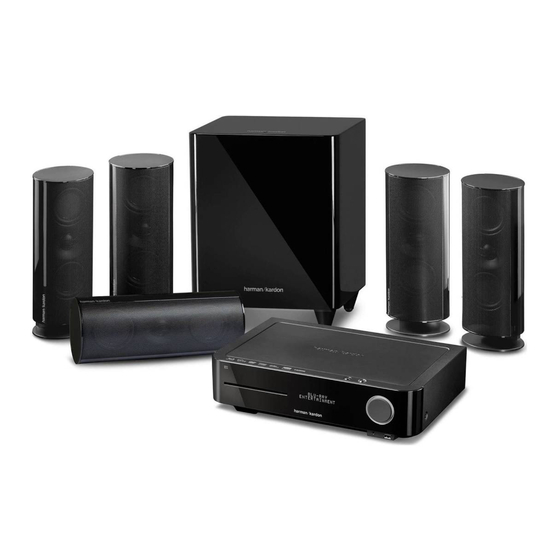

- Page 1 Integrated home theater system Quick-Start Guide...
-
Page 2: Connect The Speakers
Introduction, Speaker Placement and Connection 2.1-Channel Systems Thank you for choosing a harman kardon ® product! This quick-start guide contains all the information you need to connect and set up your new BDS integrated home theater system. Left Speaker Right Speaker... - Page 3 Connections 3.1 Soundbar System Front Right Front Left Satellite Satellite – – Center* Colored Red Band Green Band White Band Band – – – Colored Bands BDS Receiver (BDS 5.1 shown) to “+” Terminals SB 10 Soundbar – – – White Green White...
-
Page 4: Connect Other Devices
Connections Connect the Speakers (Continued) Subwoofer Connection Connect a TV or Video Display IMPORTANT: Do not plug the subwoofer’s AC power cord into an AC outlet at this time. HDMI Cable LFE Cable Connect to a Local Area Network (LAN)* Internet Connect Other Devices Network... - Page 5 Connections Connect Audio Sources Connect the AC Power Receiver Optical Out Audio Out -OR- 110V – 240V, 50Hz/60Hz Subwoofer Tape Deck Play Out Cable/Satellite Tuner Optical Out PL0004-01001 Digital Audio Source Coaxial Out USA: 120V, 60Hz EU: 220V – 230V, 50Hz/60Hz...
-
Page 6: Receiver Setup
Receiver Setup Set Up the Receiver To set up your BDS receiver you will use the remote to navigate through the on-screen menus and to make selections from them. Install the Batteries in the Remote Control Settings Button Home Button Cursor Controls OK Button Exit Button... -
Page 7: Setup Wizard
Setup Wizard Page: 1/5 1. Press the remote’s Settings button. The General Settings screen will appear. Welcome to the Harman Kardon BDS Setup Wizard. Some simple information is needed to ensure you get the best experience from your product. -
Page 8: Using The Receiver
Using the Receiver Using the Receiver Press the remote’s Home button to display the Home Menu screen: Home Menu Blu-ray Disc FM Radio Type:Disc Playlist Size:23684.875M Settings FS:UDF 1 / 5 Exit Option HOME OPTIONS The available sources are listed on the left. If a disc has been inserted into the receiver’s built-in disc slot, it will appear on the list as either “Blu-ray Disc,”... - Page 9 © 2010 HARMAN International Industries, Incorporated. All rights reserved. harman kardon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Blu-ray Disc and BD-Live are trademarks of the Blu-ray Disc Association. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
