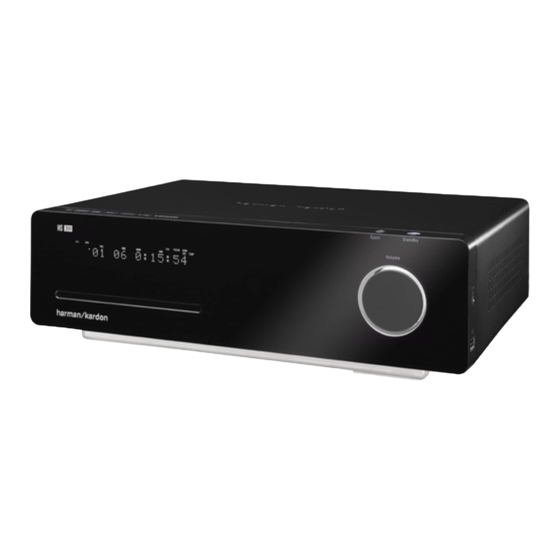

Harman Kardon HS 2X0/230 Series Service Manual

Harman Kardon HS 2X0/230 Series Service Manual

(hs 210 system and hs 280 system) 2 x 65w 2.1 receiver / home cinema systems

Advertisement

harman/kardon
harman/kardon

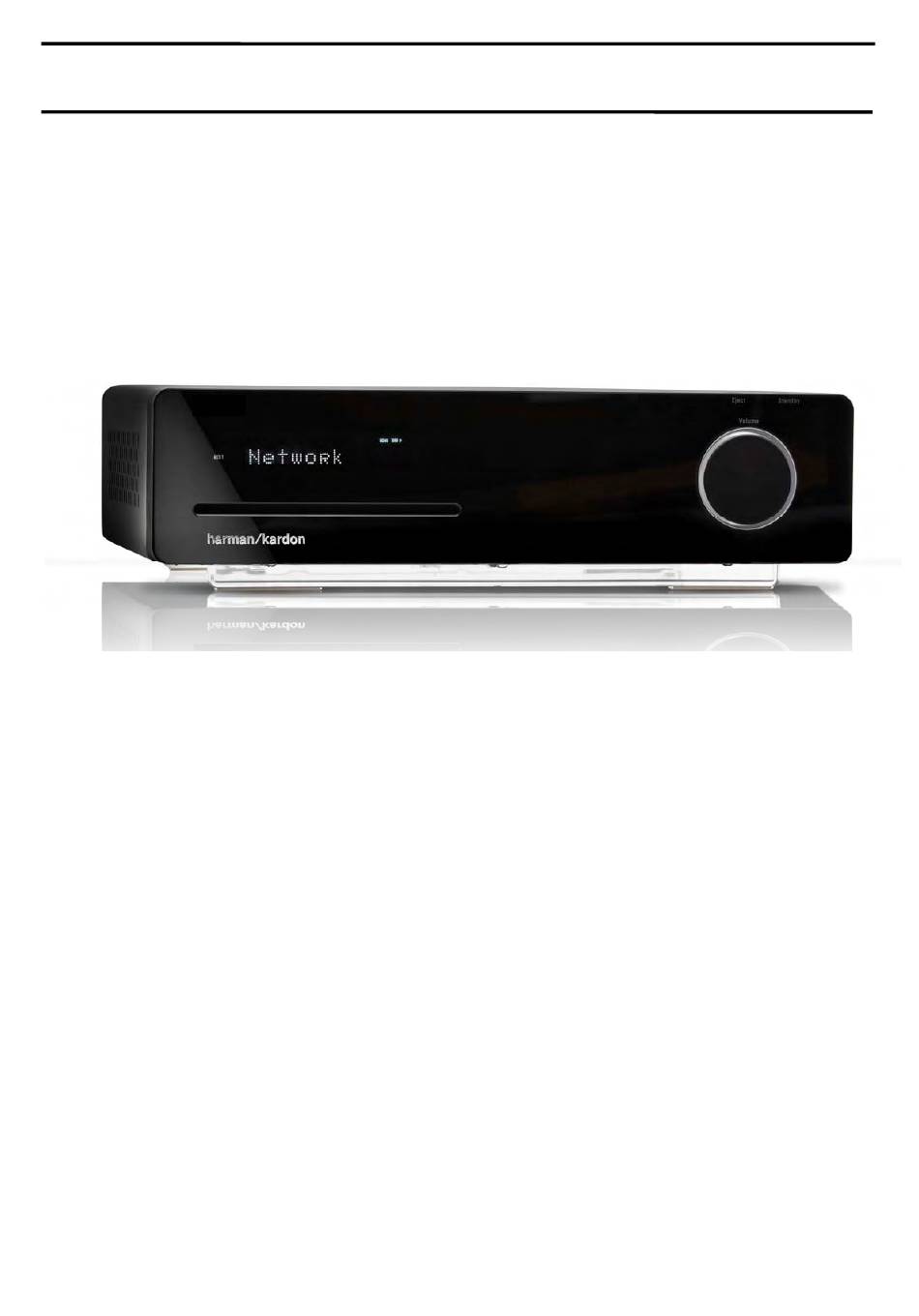

HS 2X0/230
(HS 210 system and HS 280 system)
2 x 65W 2.1 RECEIVER / HOME CINEMA SYSTEMS
2
ACESSORIES
3
FRONT AND REAR PANELS
TROUBLESHOOTING GUIDE
BASIC SPECIFICATIONS
EXPLODED VIEW AND PARTS
PACKAGE LISTS AND PARTS
NOTE: The HS 210 and HS 280 systems DVD/amplifier units are identical, named "HS 2X0"
on the rear panel, but featuring NO NAME-STICKER on the front panel.
The only difference is the loudspeakers included in the system box.
HS 210 comes with a HKTS 30 system in 2.1 configuration
HS 280 comes with a HKTS 60 system in 2.1 configuration.
Please refer to the HKTS 20+30+60 service manual for information on the speakers.
Released EU2010
CONTENTS
8
10
11
12
Harman
8500 Balboa Boulevard
Northridge, California 91329
Service Manual
ELECTRICAL PARTS LIST
SEMICONDUCTOR PINOUTS
4
PCB DRAWINGS
9
SCHEMATIC DIAGRAMS
Consumer Group, Inc.
HS 2X0/230 Service Manual
13
19
42
52
53
54
56-73
Rev 2, 01/2011
Page 1 of 73
