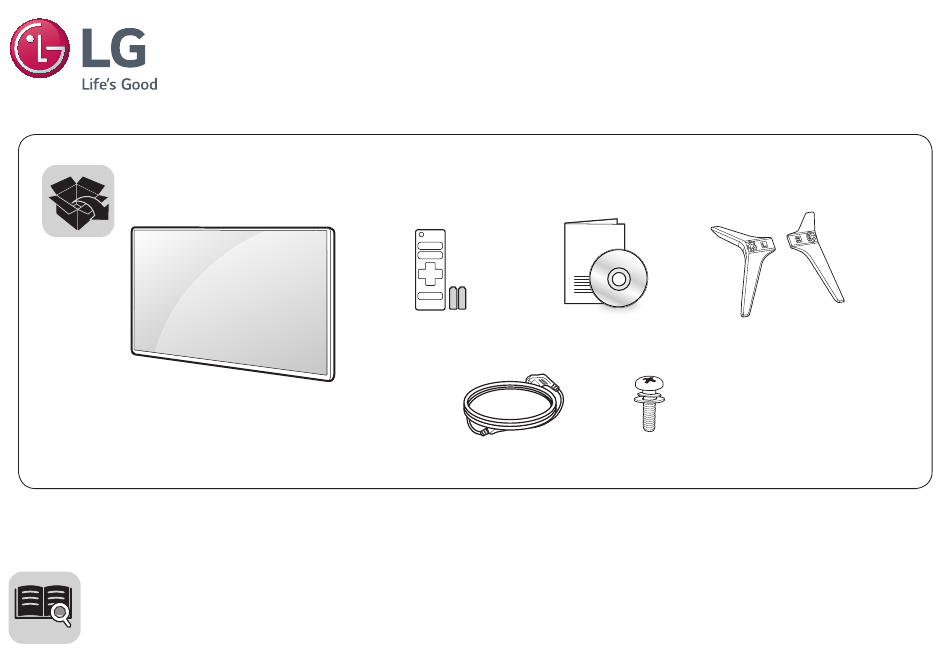

www.lg.com
AAA
X 2
X 4
(M4 x L16)
(M4 x L16)
32LV30**
43LV30**
LED TV
LV30**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43LV300C-ZA and is the answer not in the manual?

Questions and answers

Related Manuals for LG 43LV300C-ZA

Summary of Contents for LG 43LV300C-ZA

  • Page 1 LED TV LV30** (M4 x L16) (M4 x L16) 32LV30** 43LV30** www.lg.com...
  • Page 3 43LV30** 32LV30**...
  • Page 4 ANTENNA/ CABLE IN HDMI IN USB IN H/P OUT Satellite IN...
  • Page 5 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R...
  • Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 7 HDMI-DVI IN RGB IN RGB IN HDMI IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R AUDIO OUT DVI OUT AUDIO OUT RGB OUT...
  • Page 9 181.1 77.8 32LV300C-ZB 181.1 77.8 32LV300C-ZA 220.4 77.8 43LV300C-ZA AC 100-240 V~ 50/60 Hz...
  • Page 10 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com Copyright © 2017 LG Electronics Inc. All Rights Reserved.
  • Page 11 Warning! Safety instructions •  Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture. • ...
  • Page 12 Otherwise, •  Only use an authorized AC adapter and power cord approved by the product may fall over, which may cause injury or damage the LG Electronics. Otherwise, this may result in fire, electric shock, product. malfunction or product deformation.
  • Page 13 •  Please follow the installation instructions below to prevent the •  When moving or unpacking the product, work in pairs because the product from overheating. product is heavy. Otherwise, this may result in injury. - The distance between the product and the wall should be more • ...

  • Page 14: Lifting And Moving The Tv

    Lifting and moving the TV •  Use a certified cable with the HDMI logo attached. •  If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI®/ cable (3 m or less) Please note the following advice to prevent the TV from being scratched...

  • Page 15: Using The Button

    Using the button Mounting on a table 1 Lift and tilt the TV into its upright position on a table. •  Leave a 10 cm (minimum) space from the wall for proper (Depending on model) ventilation. You can simply operate the TV functions, using the button. 10 cm 2 Connect the power cord to a wall outlet.

  • Page 16: Securing The Tv To A Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please...

  • Page 17: How To Use Dual Lock

    How to use Dual Lock™ •  Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. •  When installing the wall mounting bracket, it is recommended to (Only when the item of the following form is provided) cover the stand hole using tape, in order to prevent the influx of (This feature is not available for all models.) dust and insects.

  • Page 18: Connections (Notifications)

    Connections (notifications) Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF Connect various external devices to the TV and switch input modes to cable (75 Ω). select an external device. For more information of external device’s CI module connection connection, refer to the manual provided with each device.

  • Page 19: Network Setup

    Remote control Network setup Wired network connection (Some buttons and services may not be provided depending on models (Depending on model) or regions.) This TV can be connected to a Pro:Centric server via the LAN port. After The descriptions in this manual are based on the buttons on the remote making the physical connection, the TV needs to be set up for network control.

  • Page 20: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 21: Troubleshooting

    Troubleshooting Abnormal Display •  If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with The software version can be updated for improvement in performance. product.

  • Page 22: Specifications

    Specifications CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV...
  • Page 23 HDMI/DVI-DTV supported mode Component port connecting information Horizontal Vertical Frequency Resolution Frequency (kHz) (Hz) Component ports on the TV 31.46 59.94 640 x 480 31.50 60.00 31.469 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.250 50.00 37.50...

  • Page 24: Supported Video Formats

    Supported video formats Supported audio formats •  Maximum: 1,920 x 1,080 @ 30p (only Motion JPEG 640 x 480 @ 30p) •  File type: MP3 •  .asf, .wmv [Bit rate] 32 Kbps ~ 320 Kbps [Video] MPEG-4 Part2, Xvid, H.264/AVC, VC1(WMV3, WVC1), MP43 [Sample freq.] 16 kHz ~ 48 kHz [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3 [Support] MPEG-1, MPEG-2, Layer2, Layer3...

  • Page 25: Supported Photo Formats

    Supported photo formats •  Category: 2D (jpeg, jpg, jpe) [Available file type] SOF0: Baseline, SOF1: Extend Sequential, SOF2: Progressive [Photo size] Minimum: 64 (W) x 64 (H), Maximum (Normal Type): 15,360 (W) x 8,640 (H), Maximum (Progressive Type): 1,920 (W) x 1,440 (H) • ...
  • Page 26 Record the model number and serial number of the Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 27 IR CODES •  This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER)  Remote control Button (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button  (INPUT) Remote control Button Remote control Button 10-19  Number Key 0-9 Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button    Remote control Button Remote control Button    Remote control Button Remote control Button Remote control Button...

  • Page 28: External Control Device Setup

    EXTERNAL CONTROL DEVICE Type of Connector: D-Sub 9-Pin Male SETUP RS-232C Setup •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control  device (such as a computer or an A/V control system) to control the  product’s functions externally. Pin name Connect the serial port of the control device to the RS-232C jack on the  product back panel. 3.5 V RXD (Receive data) •  RS-232C connection cables are not supplied with the product. TXD (Transmit data) IR OUT from TV GND  No Connection No Connection (5 V available in some models) No Connection No Connection (12 V available in some models) RS-232C IN (CONTROL & SERVICE) (*Not Provided)

  • Page 29: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal)     PC  01. Power 00 to 01      2  3  02. Aspect Ratio (See p. 4)     3  2  03. Screen Mute (See p. 5)     5  5  04. Volume      4  6 ...

  • Page 30: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01.  Power (Command: k a) ►To control Power On/Off of the set.   (Depending on Model) Transmission [k][a][  ][Set ID][  ][Data][Cr] Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] Data 00: Power Off  01: Power On [Command 1]: First command to control the TV. (j, k, m or x) [a][ ][Set ID][ ][OK/NG][Data][x] [Command 2]: Second command to control the TV. ►To Show TV is Power On/Off.   [Set ID]: You can adjust the set ID to choose desired monitor ID number  in option menu. Adjustment range is 1 to 99. When selecting Set ID  Transmission ‘0’ ,  every connected set is controlled. Set ID is indicated as decimal (1  [k][a][ ][Set ID][ ][FF][Cr] to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on transmission/ receiving protocol. [Data]: To transmit command data. Transmit  ‘ FF’ data to read status of  [a][ ][Set ID][ ][OK/NG][Data][x] command. [Cr]: Carriage Return *  Similarly, if other functions transmit ‘0 x FF’ data based on this for- mat, Acknowledgement data feed back presents status about each ...
  • Page 31 03.  Screen Mute (Command: k d) 05.  Volume Control (Command: k f) ►To select screen mute on/off. ►To adjust volume.      You can also adjust volume with the volume buttons on remote  Transmission control. [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][f][ ][Set ID][ ][Data][Cr] Data 00: Screen mute off (Picture on) Data Min: 00 to Max: 64        Video mute off *  Refer to “Real data mapping” 01: Screen mute on (Picture off) 10: Video mute on [f][ ][Set ID][ ][OK/NG][Data][x] [d][ ][Set ID][ ][OK/NG][Data][x] 06.  Contrast (Command: k g) *  In case of video mute on only, TV will display On Screen Display(OSD).  ►To adjust screen contrast.   But, in case of Screen mute on, TV will not display OSD. You can also adjust contrast in the PICTURE menu. Transmission 04.  Volume Mute (Command: k e) [k][g][ ][Set ID][ ][Data][Cr] ►To control volume mute on/off.   You can also adjust mute using the   (MUTE) on remote control. Data Min: 00 to Max: 64 Transmission * ...
  • Page 32 08.  Colour (Command: k i) 12.  Remote Control Lock Mode (Command: k m) ►To adjust the screen Colour. ►To lock the front panel controls on the monitor and remote control.     You can also adjust colour in the PICTURE menu. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr] Data 00: Lock off 01: Lock on Data Min: 00 to Max: 64 *  Refer to “Real data mapping” [m][ ][Set ID][ ][OK/NG][Data][x] [i][ ][Set ID][ ][OK/NG][Data][x] *  If you are not using the remote control, use this mode. When main  power is on/off, external control lock is released. *  In the standby mode, if key lock is on, TV will not turn on by power  09.  Tint (Command: k j) on key of IR & Local Key. ►To adjust the screen tint.   You can also adjust tint in the PICTURE menu. 13.  Balance (Command: k t) ►To adjust balance.   Transmission You can also adjust balance in the AUDIO menu. [k][j][ ][Set ID][ ][Data][Cr] Transmission Data Red: 00 to Green: 64 [k][t][ ][Set ID][ ][Data][Cr] * ...
  • Page 33 15.  Energy Saving (Command: j q) 17.  Equalize (Command: j v) ►To reduce the power consumption of the TV. You can also adjust  ►To adjust equalize.     Energy Saving in PICTURE menu. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving MSB                                                                                                                    LSB Level Function Description Data Low  Frequency Power 7 6 5 Frequency 4 3 2 1 0 Step Low  Minimum Power 0 0 0 1st Band 0 0 0 0 0 0(decimal) Low ...

  • Page 34: Data Structure

    Channel data range 22.  Input select (Command: x b) Min: 00 Max: 270F (0 to 9,999) (Main Picture Input) ►To select input source for main picture.   Transmission [a][ ][Set ID][ ][OK/NG][Data][x] [x][b][ ][Set ID][ ][Data][Cr] 19.  Programme Add/Skip (Command: m b) Data  Structure ►To set skip status for the current Programme.   MSB                                                                                                                     LSB Transmission [m][b][ ][Set ID][ ][Data][Cr] External Input Input Number Data 00: Skip 01: Add External Input Data [b][ ][Set ID][ ][OK/NG][Data][x] Analogue 20.  Key (Command: m c) Component ►To send IR remote key code.   Transmission [m][c][ ][Set ID][ ][Data][Cr] HDMI Data  IR CODES [c][ ][Set ID][ ][OK/NG][Data][x] Input Number Data Input1 21. ...
  • Page 35 *  Real data mapping Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) Step 16 (Set ID 16) Step 100   Step 110 Step 115 Step 116 Step 199 Step 254 Step 255...
