ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
www.lg.com

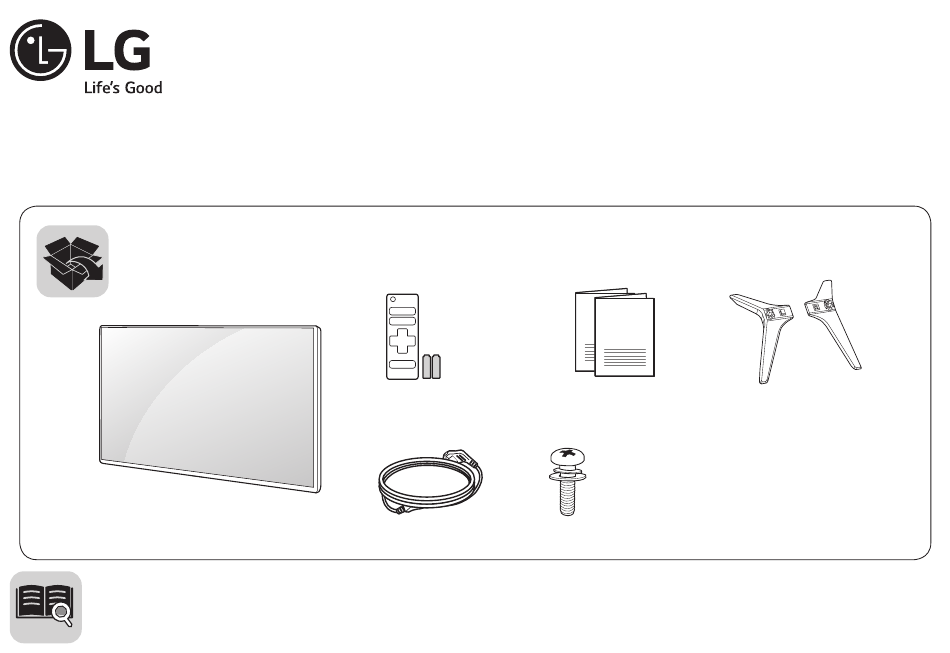

AAA
(M4 x L16)
X 2
32LV300C
X 4
43LV300C
32LV300C
43LV300C
P/No: MFL69893102 (1709-REV03)
LED TV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32LV300C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 32LV300C

Summary of Contents for LG 32LV300C

  • Page 1 LED TV ENGLISH Easy Setup Guide 32LV300C Please read this manual carefully before operating your set and retain it for future reference. 43LV300C ESPAÑOL Guía Rápida de Configuración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
  • Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas. 32LV300C 43LV300C...
  • Page 4 HDMI IN...
  • Page 7 : mm : kg 32LV300C-SA 181.1 181,1 77.8 77,8 0.72 A / 45 W 0,72 A / 45 W 32LV300C-SB 181.1 181,1 77.8 77,8 0.65 A / 40.5 W 0,65 A / 40,5 W 43LV300C-SA 220.4 220,4 77.8 77,8 0.9 A / 57 W...
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 32LV300C 43LV300C www.lg.com *MFL69872002* P/NO : MFL69872002 (1708-REV02)
  • Page 10 Warning! Important Safety • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with instructions the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Read these instructions.
  • Page 11 • Do not attempt to modify this product in any • Use only an authorized AC adapter and power way without written authorization from LG cord approved by LG Electronics. Otherwise, this Electronics. Unauthorized modification could may result in fire, electric shock, malfunction, or void the user’s authority to operate this product.
  • Page 12 • Never touch this apparatus or antenna during a • For an optimal connection, HDMI cables and lightning storm. USB devices should have bezels less than 10 mm • When mounting a TV on the wall, make sure not thick and 18 mm width. •...

  • Page 13: Lifting And Moving The Tv

    Lifting and Moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not place the product on the floor with When moving or lifting the TV, read the following its front facing down without padding.

  • Page 14: Mounting On A Table

    Mounting on a Table Securing the TV to a Wall (optional) (Depending upon model) 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 c m 1 0 c m 1 Insert and tighten the eye-bolts or TV brackets...

  • Page 15: Mounting On A Wall

    We recommend protective label that you use an LG brand wall mount. The LG wall • When using the wall mount, it is recommended mount is easy to adjust or to connect the cables.

  • Page 16: Connecting To An Antenna Or Cable

    Remote Control • Refer to the external equipment’s manual for operating instructions. • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast (Some buttons and services may not be provided or brightness. If noise is present, change the PC depending upon models or regions.) output to another resolution, change the refresh The descriptions in this manual are based on...

  • Page 17: Specifications

    Accesses the main menu. 1920 x 1080 67.50 60.00 Accesses the quick menu. : Except for 32LV300C Navigation button (up / down / left / right) Scrolls through menus or options. Selects menus or options and confirms your input. Returns to the previous screen.

  • Page 18: Supported Video Formats

    My Media Supported Files HDMI (DTV) supported mode Horizontal Vertical • External supported subtitle formats: Resolution Frequency (kHz) Frequency (Hz) .srt (SubRip), .smi (SAMI), .sub (SubViewer 31.46 59.94 MicroDVD, DVDSubtitleSystem, Subldx(Vobsub)), 640 x 480p .ass/.ssa (SubStation Alpha), .txt (TMplayer), .psb 31.50 60.00 (PowerDivx)

  • Page 19: Open Source Software Notice Information

    [Bit rate] 32 Kbps - 320 Kbps are available for download. [Sample freq.] 16 kHz - 48 kHz LG Electronics will also provide open source code [Support] MPEG-1, MPEG-2, Layer2, Layer3 to you on CD-ROM for a charge covering the cost •...
  • Page 20 TV. Some For more information about licenses, minute dot defects may be visible on the visit www.lg.com. screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

  • Page 21: Key Codes

    Key CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button...

  • Page 22: External Control Device Setup

    (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID: 0x0557, Product ID: 0x2008) USB to serial converter which is RS-232C IN not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 23: Customer Computer

    Customer Computer RS-232C (Serial port) RS-232C Configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real Data Mapping” 1 Press to access the main menus. 2 Press the Navigation buttons to scroll to OPTION and press 3 Press the Navigation buttons to scroll to Set ID and press 4 Scroll left or right to select a set ID number and select Close.

  • Page 24: Communication Parameters

    Communication Parameters Baud rate: 9600 bps (UART) Stop bit: 1 bit Data length: 8 bits Communication code: ASCII code Parity: None Use a crossed (reverse) cable. Command reference list (Depending upon model) DATA DATA COMMAND1 COMMAND2 COMMAND1 COMMAND2 (Hexadecimal) (Hexadecimal) 01.

  • Page 25: Transmission / Receiving Protocol

    Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 26 • Commands may work differently depending upon model and signal. 01. Power (Command: k a) 03. Screen Mute (Command: k d) • To control Power *On or Off of the set. • To select screen mute on/off. Transmission [k][a][ ][Set ID][ ][Data][Cr] Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00 : Power Off 01 : *Power On...
  • Page 27 07. Brightness (Command: k h) 12. Remote control lock mode (Command: k m) • To adjust screen brightness. You can also adjust • To lock the front panel controls on the monitor brightness in the PICTURE menu. and remote control. Transmission [k][h][ ][Set ID][ ][Data][Cr] Transmission [k][m][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 28 16. Color (Colour) Temperature (Command: x u) 19. Tune Command (Command: m a) • To adjust colour temperature. You can also adjust * This command may work differently depending Color (Colour) Temperature in the PICTURE upon model and signal. menu. * For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model Transmission [x][u][ ][Set ID][ ][Data][Cr]...
  • Page 29 Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] * Digital Antenna/Cable Data 00 : xx (Don’t care) [Data 02][x][a][ ][Set ID][ ][NG][Data 00][x] [Data 01][Data 02] : Major Channel Number * For South Korea, North/Latin America except Colombia Model Data 01 : High byte Channel Data * To tune channel to following physical/major/ Data 02 : Low byte Channel Data minor number.
  • Page 30 * Digital Antenna/Satellite 21. Key (Command: m c) • To send IR remote key code. Data 00 : xx (Don’t care) Transmission [m][c][ ][Set ID][ ][Data][Cr] [Data 01][Data 02] : Major Channel Number Data 01 : High byte Channel Data Data Key code - page 13.
  • Page 31 24. 3D (Command: x t) (only 3D models) 25. Extended 3D(Command: x v) (only 3D models) (Depending upon model) (Depending upon model) • To change 3D mode for TV. • To change 3D option for TV. Transmission [x][t][ ][Set ID][ ][Data 00][ ] Transmission [x][v][ ][Set ID][ ][Data 00][ ] [Data 01] [ ][Data 02][ ][Data 03][Cr] [Data 01][Cr]...
  • Page 32 26. Auto Configure (Command: j u) (Depending upon model) • To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x] Regulatory WARNING! Never place a television set in an unstable...
  • Page 34 The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL...
