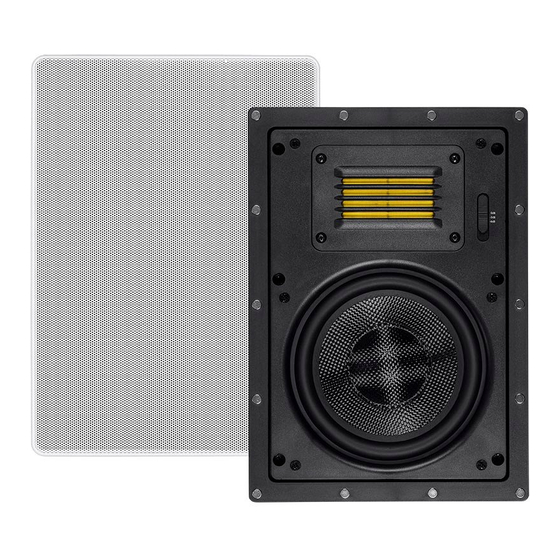

- Page 1 Amber In-wall & In-ceiling Speakers P/Ns 24431, 24432, 24433, 24434, 24435 User's Manual...
-
Page 2: Table Of Contents
INTRODUCTION ........................................ 4 FEATURES ..........................................4 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................5 Model 24431 ........................................5 Models 24432 and 24433 .................................. 5 Models 24434 and 24435 .................................. 5 IN-WALL VERSUS IN-CEILING SPEAKERS ..........................5 SPEAKER BREAK-IN ...................................... 6 SPEAKER WIRE PREPARATION................................ -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES These speakers are intended for indoor use only. Do not expose these speakers to water or moisture of any kind. If operating these speakers in a humid environment, ensure that no condensation occurs. Condensation could cause damage to the speaker cones and voice coils. ... -
Page 4: Introduction
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 5: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. Model 24431 1x 3-way in-wall center channel speaker... -
Page 6: Speaker Break-In
SPEAKER BREAK-IN In the same way that a new car requires a break-in period before it can be safely operated at high engine RPMs, speakers require a break-in period before they can be safely operated at maximum volume levels. Proper break-in ensures that the moving parts of the speaker (the cone and cone suspension) are allowed to flex and soften, losing the initial stiffness and allowing the speaker to move through its full intended range. - Page 7 stray wire strands shorting the connections, allow for use of heavier gauge speaker wire in most cases, and it is much easier to identify the polarity from a color coded ring on a plug then from a subtle marking along the length of a wire. Because the speaker wires will necessarily be run through your walls, you must use in-wall rated wire.
-
Page 8: Painting
When you are ready to prepare your speaker wires, first separate about 4" of wire, then strip about 1/4" (6mm) insulation from the end and twist it to prevent stray strands. If you plan to use banana or pin plugs (highly recommended), install the plugs on the wire. PAINTING The grille and frame can be painted to match your walls, making the speaker even less noticeable. -
Page 9: Installation
INSTALLATION Perform the following steps to install the speaker onto a wall composed of drywall. Note that the same procedures apply to ceiling installations. The speaker can be mounted to a surface that is between 3/8" and 1-1/4" thick, with at least 4" internal clearance. 1. - Page 10 10. Once you know your installation location is clear, use a drywall or keyhole saw to cut along the cut lines. 11. If you have not already done so, prepare your speaker wire in accordance with the Speaker Wire Preparation guidelines in the section above.
-
Page 11: High-Frequency Roll-Off
3. Replace the grille onto the speaker body. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 12: Specifications
SPECIFICATIONS Model 24431 Speaker Type 3-way in-wall center channel speaker Nominal Impedance 8 ohms Woofers 2x 5.25" carbon fiber cone Mid-range Driver 1x 3" carbon fiber cone Tweeter 1x 115 x 80 mm ribbon tweeter Power Handling Capacity 60 watts RMS, 120 watts peak... - Page 13 Model 24432 24433 Speaker Type 2-way in-wall speakers 2-way in-wall speakers Nominal Impedance 8 ohms 8 ohms Woofers 6.5" carbon fiber cone 8" carbon fiber cone Tweeter 115 x 80 mm ribbon tweeter 115 x 80 mm ribbon tweeter 60 watts RMS 80 watts RMS Power Handling Capacity 120 watts peak...
- Page 14 Model 24434 24435 Speaker Type 2-way in-ceiling speakers 2-way in-ceiling speakers Nominal Impedance 8 ohms 8 ohms Woofers 6.5" carbon fiber cone 8" carbon fiber cone ø46.5 x 20 mm air motion ø46.5 x 20 mm air motion Tweeter tweeter tweeter 60 watts RMS 80 watts RMS...
