Summary of Contents for Monoprice Harmony Capsule 200

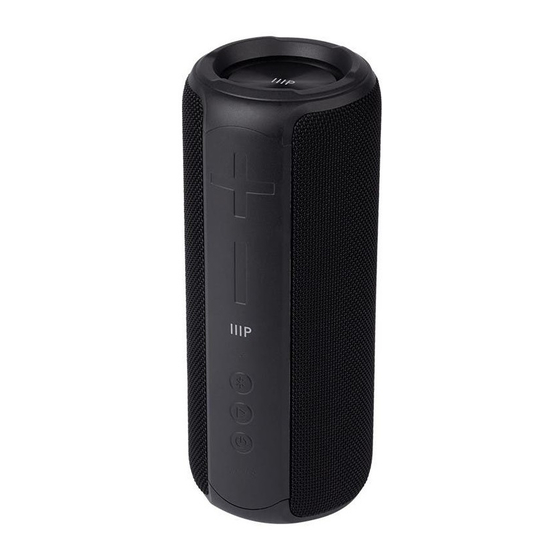

- Page 1 Harmony Capsule 200 Portable Bluetooth® Speaker P/N 43262 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. Do not expose this device to excessively high •... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 4: Product Overview
PRODUCT OVERVIEW Bluetooth Indicator Volume + Button Volume - Button Bluetooth® Button Play/Pause Button Power Button Battery Charge Indicator microSD™ Card Slot 3.5mm AUX Jack... - Page 5 10. USB Type-C® Charging Port 11. Microphone CHARGING Charge the battery before first use and at least once every two months to keep it fresh and capable of holding a full charge. We recommend that you charge the speaker for about 10 minutes prior to use, if it has been unused for at least 7 days.
-
Page 6: Bluetooth Pairing
BLUETOOTH PAIRING Press and hold the Power Button for 3 seconds to turn the speaker on. When the speaker is first powered on, it will automatically enter Bluetooth® pairing mode and the Bluetooth Indicator will flash white, indicating that it is in Bluetooth pairing mode. -
Page 7: Aux Playback
AUX PLAYBACK If your audio device does not have Bluetooth® or if you do not want to use Bluetooth, you can listen to audio using a wired connection to the 3.5mm AUX Jack on the speaker. Plug one end of the included 3.5mm Audio Cable in the 3.5mm AUX Jack on the speaker, then plug the other end into the headphones or other analog audio output on your audio source device. -
Page 8: Button Operation
formatted with the FAT16 or FAT32 file system. The mp3 files on the card can be in any subdirectory. Press and hold the Power Button for 3 seconds to turn the speaker on. Press the Bluetooth Button to switch between Bluetooth, AUX, and microSD™... - Page 9 Press the Power Button to enable Siri® functionality. The • speaker also supports the Huawei® intelligent voice assistant. Bluetooth Button With a device paired, but not connected, press and hold • the Bluetooth Button for 3 seconds to reconnect the last connected device.
- Page 10 When an incoming call is received, press the Play/Pause • Button to answer the call. With a call in progress, press the Play/Pause Button to • terminate the call. When an incoming call is received, press and hold the • Play/Pause Button for 2 seconds to reject the call.
- Page 11 Press and hold the Volume + Button for 2 seconds to skip • forward to the next track. Press and hold the Volume - Button for 2 seconds to skip • back to the previous track. TWS OPERATION This speaker features TrueWireless™ Stereo (TWS) functionality, which allows you to connect two 43262 speakers together to act as a stereo pair, with one speaker playing left channel audio and the other playing right channel audio.
-
Page 12: Technical Support
Check the website for support times and links. To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. -
Page 13: Specifications
SPECIFICATIONS 43262 Driver Size 1x ø66mm, 2x ø52mm Amplifier Power 1x 18 watts, 2x 6 watts Nominal Impedance 4Ω Bluetooth® Version Bluetooth Range Up to 32 feet (10 meters) Bluetooth Pairing Name MP43262 microSD™ Card Capacity 32GB microSD Card Formatting FAT16 or FAT32 Waterproof Level IPx7... -
Page 14: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right... - Page 15 equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference...
- Page 16 Monoprice, including the use of non-approved antennas, could void the user's authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 17 (2) this device must accept any interference received, including interference that may cause undesired operation. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
