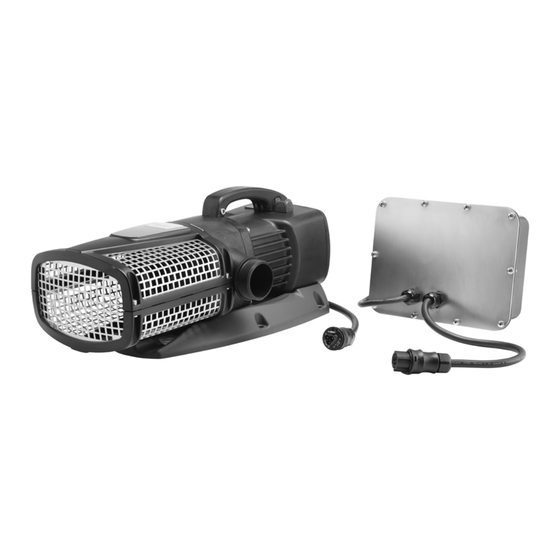

- Page 1 Downloaded from www.watergardeningdirect.com AquaMax Eco Expert 20000 / 27000 / 12 V...
- Page 2 Downloaded from www.watergardeningdirect.com - - AMX0076 AMX0075 AMX0074...
- Page 3 Downloaded from www.watergardeningdirect.com - - AMX0021 AMX0079 AMX0073...
- Page 4 Downloaded from www.watergardeningdirect.com - - AMX0023 AMX0077 AMX0078...
- Page 5 Downloaded from www.watergardeningdirect.com - - AMX0022 AMX0026...
- Page 6 Downloaded from www.watergardeningdirect.com - - PLX0004 FMR0031 AMX0024...
- Page 7 Downloaded from www.watergardeningdirect.com - EN - - EN - Translation of the original Operating Instructions W AR N I N G • This unit can be used by children aged 8 and above and by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
-
Page 8: Safety Information
Information about this operating manual You made a good choice with the purchase of this product AquaMax Eco Expert 20000 / 27000 / 12 V. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. -
Page 9: Scope Of Delivery
Product Description AquaMax Eco Expert 20000 / 27000 / 12 V is a filter and water course pump with an electronically adjustable flow rate. The pump is suitable for dry or submersed installation. It is suitable for use in swimming ponds. -
Page 10: Unit Configuration
Downloaded from www.watergardeningdirect.com - EN - Unit configuration B AquaMax Eco Expert 20000 / 27000 / 12 V Pump casing • The position of the outlet can be changed by fitting the pump casing rotated through 90°. Inlet (suction socket) Filter basket •... -
Page 11: Connecting The Hose
2. Slip the hose clip over the hose, fit the hose onto the hose connector and secure with the hose clip. Dry installation of the pump AquaMax Eco Expert 20000 / 12 V • Hoses or pipes can be connected at the inlet and outlet. Recommendation: –... -
Page 12: Integrating The Pump In The Egc Network
Downloaded from www.watergardeningdirect.com - EN - Connecting the switching power pack to the pump N O T E The pump will be destroyed, if water penetrates the plug connectors of the connection line. • Do not undo the union nuts on the plug connectors. Once the plug connectors of the filter pump and switching power pack have been inserted and have engaged, they can only be disconnected by means of a screw driver. -
Page 13: Seasonal Flow Control (Sfc)
Downloaded from www.watergardeningdirect.com - EN - Commissioning/start-up N O T E The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical components. • Do not connect the unit to a dimmable power supply. When started up, the pump automatically performs a pre-programmed self-test (Environmental Function Control (EFC)). -
Page 14: Maintenance And Cleaning
The impeller unit is guided in the motor block by a bearing. This bearing is a wear part and should be changed at the same time as the impeller unit. • Changing the bearing requires specialist knowledge and tools. Have the bearing changed by your OASE specialist dealer or send the pump to OASE. -
Page 15: Wear Parts
• If an electric cable permanently connected to the pump becomes damaged or is shortened. If repair work by OASE becomes necessary, always send both the pump and the switching power pack to OASE or give them to your specialist retailer. - Page 16 Downloaded from www.watergardeningdirect.com AquaMax Eco Expert 20000 / 12 V 12 V DC — 18 A 30 … 260 W IP 68 — 490 × 240 × 210 mm 11.4 kg ≤4 m 27000 / 12 V 12 V DC —...
- Page 17 Downloaded from www.watergardeningdirect.com AquaMax Eco Expert 20000 / 12 V 12 V DC — 18 A 30 … 260 W IP 68 ≤4 m — 490 × 240 × 210 mm 11.4 kg 27000 / 12 V 12 V DC —...
- Page 18 Downloaded from www.watergardeningdirect.com AquaMax Eco Expert 20000 / 12 V ≤19300 l/h 4.6 m +30 °C +40 °C 27000 / 12 V ≤27000 l/h 4.6 m G2½ +30 °C +40 °C 20000 / 12 V — — — — +30 °C +40 °C 27000 / 12 V Pumpun teho...
- Page 19 Downloaded from www.watergardeningdirect.com Empfohlene Wasserwerte ph-Wert Härte Freies Chlor Chloridgehalt Salzgehalt Gesamttrockenrückstand Temperatur Recommended water quality pH value Hardness Free chlorine Chloride content Salt content Overall dry residue Temperature Valeurs d'eau recommandées Valeur pH Dureté Chlore libre Teneur en chlorure Teneur en sel Résidu sec total Température...
- Page 20 Downloaded from www.watergardeningdirect.com Staubdicht. Wasserdicht bis 4 m Vor direkter Sonneneinstrahlung Nicht mit normalem Hausmüll Achtung! Tiefe schützen. entsorgen! Lesen Sie die Gebrauchsanlei- tung Dust tight. Submersible to 4 m Protect from direct sun radiation. Do not dispose of together with Attention! depth.
- Page 21 Downloaded from www.watergardeningdirect.com...
