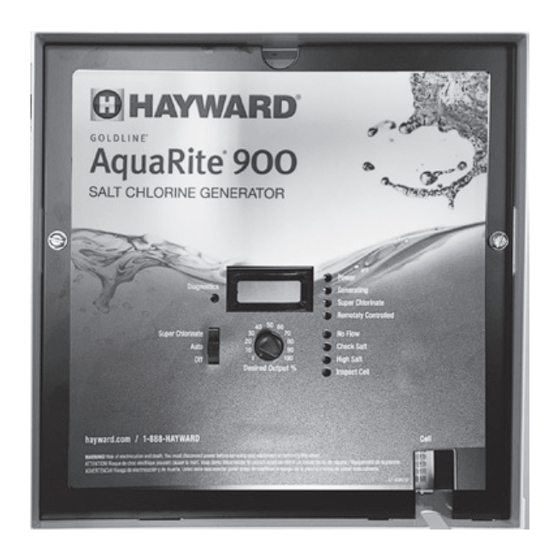

Hayward AquaRite AQR925 Owner's Manual
  1. Manuals
  2. Brands
  3. Hayward Manuals
  4. Portable Generator
  5. AquaRite AQR925
  6. Owner's manual

Hayward AquaRite AQR925 Owner's Manual

Electronic chlorine generator
Hide thumbs

Advertisement

Quick Links

Download this manual
AquaRite 900 series
Electronic Chlorine Generator
Owner's Manual
Hayward Pool Products
620 Division Street, Elizabeth NJ 07207
Phone (908)-355-7995
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
®
Contents
Operation..............................2
Installation.......................11
Troubleshooting.................. 15
Warranty..............................18
AQR940
AQR925
092623 RevD
