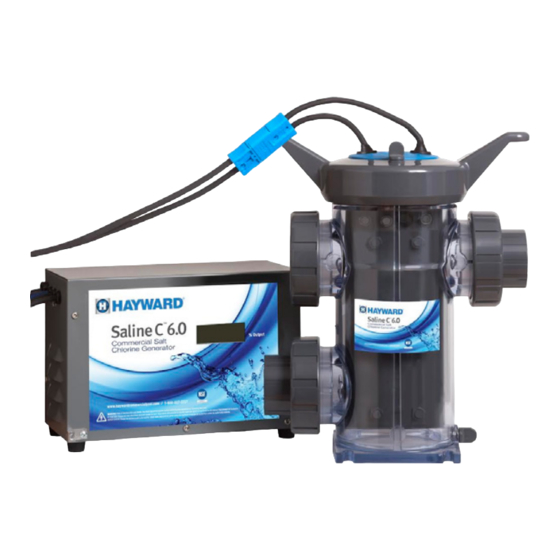

Hayward Saline C 6.0 Owner's Manual

Salt chlorine generator
Hide thumbs Also See for Saline C 6.0:

Advertisement

Quick Links

2019-2631
2019-10-10
TM
Saline C
6.0 Salt Chlorine Generator
CONTROLS BACTERIA AND ALGAE
in
Swimming Pool (and Spa) Waters
COMMERCIAL
A maximum of 283,000 L of water can be treated with
TM
Saline C
6.0 Salt Chlorine Generator
Maximum output of hypochlorous acid equivalent to 2.268 kg
of free available chlorine per day
For swimming pools, a range of 1.0 - 3.0 ppm of free available chlorine must be maintained.
For spas, a range of 3.0 - 5.0 ppm of free available chlorine must be maintained.
KEEP OUT OF REACH OF CHILDREN
READ THE LABEL AND OPERATING MANUAL BEFORE USING
REGISTRATION NO. 30927 PEST CONTROL PRODUCTS ACT
TM
WARNING: Operating the Saline C
6.0 Salt Chlorine Generator
without water flow through the cell can cause a buildup of flammable gases
which can result in FIRE OR EXPLOSION.
Do not use this device with bromide products.
NOTICE TO USER: This pest control product is to be used only in accordance with the
directions on the label. It is an offence under the Pest Control Products Act to use this
product in a way that is inconsistent with the directions on the label.
Hayward Commercial Pool Products
10101 Molecular Drive, Suite 200
Rockville, MD. 20850
Phone: (800) 657-2287
www.haywardcommercialpool.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Saline C 6.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hayward Saline C 6.0

Summary of Contents for Hayward Saline C 6.0

  • Page 1 It is an offence under the Pest Control Products Act to use this product in a way that is inconsistent with the directions on the label. Hayward Commercial Pool Products 10101 Molecular Drive, Suite 200 Rockville, MD. 20850 Phone: (800) 657-2287 www.haywardcommercialpool.com...
  • Page 2 This electrode must only be used on this model of chlorine generating device. READ THE LABEL AND REFER TO OWNER'S MANUAL OF THE SALINE C 6.0 SALT CHLORINE GENERATOR, BEFORE USING. Hayward Commercial Pool Products 10101 Molecular Drive, Suite 200 Rockville, MD.
  • Page 3 2019-2631 2019-10-10 Saline C Salt Chlorine Generator Owner’s Manual...

  • Page 4: Table Of Contents

    2019-2631 2019-10-10 TABLE OF CONTENTS INTRODUCTION WARRANTY INFORMATION SAFETY INFORMATION PREPARING YOUR WATER BEFORE INSTALLATION SALT CHART FOR CORRECT MAINTENANCE TOOLS AND PARTS REQUIRED FOR INSTALLATION INSTALLING YOUR SYSTEM PLUMBING 12-13 ELECTRICAL SPECIFICATIONS AND FUSE SIZING STARTING THE SYSTEM GENERAL OPERATION MAINTENANCE AND CLEANING...
  • Page 5 It is an offence under the Pest Control Products Act to use this product in a way that is inconsistent with the directions on the label. Hayward Commercial Pool Products 10101 Molecular Drive, Suite 200 Rockville, MD. 20850 Phone: (800) 657-2287 www.haywardcommercialpool.com...
  • Page 6 2019-2631 2019-10-10 Congratulations on purchasing your new Saline C 6.0 Salt Chlorine Generator. We trust that this system will offer you the ultimate in swimming environments, and give you years of trouble free operation. This user’s manual will explain in detail the operation of your new system, as well as water chemistry guides, warranty information, and much more.
  • Page 7 15,000 hours of operating time. Under no circumstances shall the replacement titanium electrodes exceed the original 15,000 hour warranty. • Hayward warranties will not be honored should it be shown that the operating and maintenance procedures have not been followed, particularly with regard to the correct maintenance of salt concentration and water chemistry.

  • Page 8: Safety Information

    • When installing your system, ensure that power is linked to the main pump power source for the pool to ensure that your Hayward system never operates when the pumps are off. All boxes on your Hayward system contain high voltage components.
  • Page 9 2019-2631 2019-10-10 When replacing the cell, only use replacement cells having a label that • clearly states that it is a replacement cell for the chlorine generating device Saline C 6.0 Salt Chlorine Generator, REGISTRATION NUMBER 30927, PEST CONTROL PRODUCTS ACT. Follow all aspects of the local and National Electrical Code(s) when •...

  • Page 10: Preparing Your Water Before Installation

    (liquid chlorine), through the process of electrolysis. In order for your Hayward system to operate correctly, sodium chloride (salt) must be added directly to the pool at least 24 hours before the installation of the equipment.
  • Page 11 2019-2631 2019-10-10 Use standard test kits to check water chemistry, and use either a conductivity tester or salt test strip to check saline levels. (Note that most conductivity testers require frequent calibration to ensure accurate readings, failure to calibrate the equipment will result in inaccurate readings.) How to Calculate volume of a pool For a rectangular shaped pool...

  • Page 12: Salt Chart For Correct Maintenance

    2019-2631 2019-10-10 The following is a chart to determine the amount of salt required to raise a pool or spa to 5000 ppm SALT CHART FOR CORRECT MAINTENANCE ppm Salt Levels Number of KG of Salt to Be Added ppm Salt Pool and or spa Volume (litres) 1,000 100,000...

  • Page 13: Tools And Parts Required For Installation

    2019-2631 2019-10-10 TOOLS AND PARTS REQUIRED FOR INSTALLATION Your Hayward system will include an installation kit comprising of the following items: Description Strainer clear bowl with 20 mesh PVC ball valve Sch. 40 PVC male adaptor Sch. 40 PVC nipple SCH 80...
  • Page 14 1. Your Hayward system requires a minimum of 75 Lpm of flow through the cell to produce the rated amount of chlorine. Be sure that if you use the pressure drop plumbing method [1] you have sufficient pressure drop across your filter to adequately flow 75 Lpm through the cell.
  • Page 15 2019-2631 2019-10-10 PRESSURE-DROP PLUMBING METHOD [1] Saline C 6.0 Salt Chlorine Saline C 6.0 Salt Chlorine Generator power supply Generator cell NOTES: THE RECTIFIER COOLING LINES MUST BE CONNECTED FROM THE SUCTION SIDE OF THE PUMP AND AFTER THE FILTER. ALWAYS USE FILTERED WATER. IF THERE IS A CONTROLLER PRESENT, THE OUTLET LINE THAT FEEDS THE CONTROLLER PROBES COULD BE CONNECTED TO THE RECTIFIER.
  • Page 16 120v outlet. Your Hayward system must be wired to the main pump power supply, so • that if the pump is shut down, the power to your Hayward system is lost. ELECTRICAL SPECIFICATIONS AND FUSE SIZING MODEL:...

  • Page 17: Starting The System

    2019-2631 2019-10-10 STARTING THE SYSTEM Once your Hayward system has been successfully wired and plumbed, it is ready for use. • Make sure that the valves to and from the cell are in the open position. Make sure that you have water flowing through the water-cooled heat sink •...

  • Page 18: General Operation

    2019-2631 2019-10-10 GENERAL OPERATION Your Hayward system operates when power is activated by the main pumps, and from your ORP controller, and will continue to operate for as long as power is applied from those two sources. • The system has an output range of 5-100% of the rated chlorine production, and can be adjusted by turning the black knob of the side of box 1 in a clockwise or anti-clockwise motion.

  • Page 19: Maintenance And Cleaning

    “life”, thus saving you money… Hayward offers a wide range of other products that can help you maintain salt levels in your pool, including conductivity controllers and saturated salt feeders for those...
