Hayward Goldline Controls Aquarite-CUL Manual

Electrolytic chlorine generator
Hide thumbs

Advertisement

Table of Contents

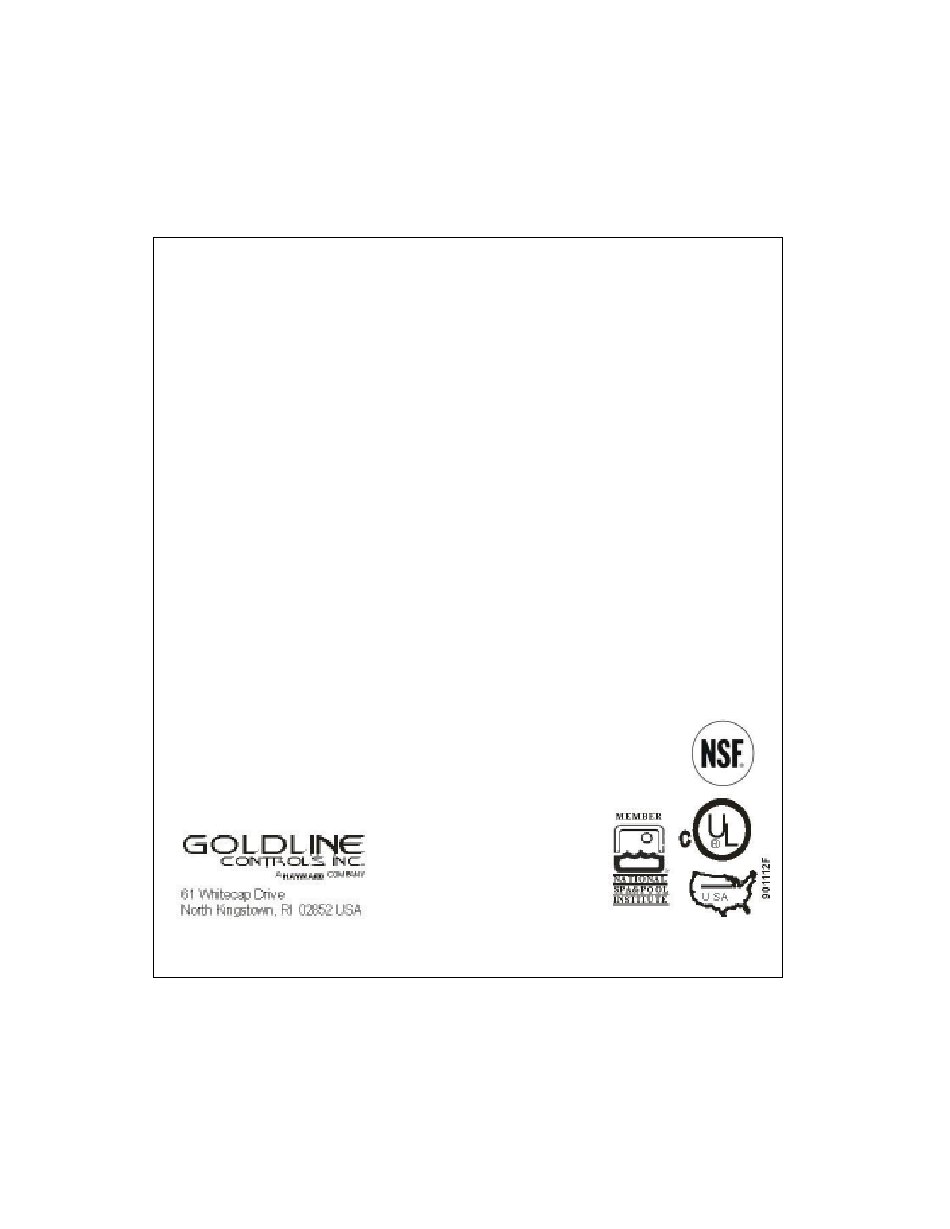

2019-2626
2019-10-10
Part No.
AQ-RITE-CUL
Aqua rite
Electrolytic Chlorine Generator
READ THE LABEL AND MANUAL BEFORE USING
REGISTRATION NUMBER 28325
PEST CONTROLS PRODUCT ACT
®
- CUL
DOMESTIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goldline Controls Aquarite-CUL and is the answer not in the manual?

Questions and answers

Related Manuals for Hayward Goldline Controls Aquarite-CUL

Summary of Contents for Hayward Goldline Controls Aquarite-CUL

  • Page 1 2019-2626 2019-10-10 Part No. AQ-RITE-CUL ® Aqua rite - CUL Electrolytic Chlorine Generator DOMESTIC READ THE LABEL AND MANUAL BEFORE USING REGISTRATION NUMBER 28325 PEST CONTROLS PRODUCT ACT...
  • Page 2 AquaRite - CUL ELECTROLYTIC CHLORINE GENERATOR CELL DOMESTIC REGISTRATION NUMBER 28325 PEST CONTROLS PRODUCTS ACT Replacement cell for the AquaRite CUL Electrolytic Chlorine Generator This cell must only be used on this model of chlorine generating device. Read the label, the Installation and Operation Manual of the AquaRite-CUL Electrolytic Chlorine Generator before using.
  • Page 3 ® AQUARITE CUL (Canada)Electrolytic Chlorine Generator CONTROLS BACTERIA AND ALGAE In Residential Swimming Pools and Spas READ THIS LABEL AND OPERATION MANUAL BEFORE USING. PRECAUTION: A maximum of 95,000 Litres (25,000 Gallons) of water can be treated with one AquaRite Cul Electrolytic Chlorine Generator unit. Operating the AquaRite CUL Electrolytic Chlorine Generator without water flow through the AquaRite CUL Electrolytic Chlorine Generator cell can cause a build-up of flammable gases which can result in fire or explosion .The AquaRite CUL Electrolytic Chlorine Generator protects itself against...
  • Page 4 Timer: Connect to load side. Remote Control unit: Connect to line power {Diagram} ENCLOSURE 3 – SUITABLE FOR INDOOR OR OUTDOOR MOUNTING. Goldline Controls, Inc. Registration# 28325 A Hayward Company Pest Control Products Act 61 Whitecap Drive DOMESTIC North Kingstown, RI. 02852 2580 Plymouth Dr.
  • Page 5 AquaRite CUL Electrolytic Chlorine Generator By Goldline Controls Inc., A Hayward Company CONTROLS BACTERIA AND ALGAE in Residential Swimming Pools and Spas DOMESTIC READ THE LABEL AND MANUAL BEFORE USING REGISTRATION NUMBER 28325 PEST CONTROL PRODUCTS ACT Goldline Controls, Inc.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: • READ AND FOLLOW ALL INSTRUCTIONS • Disconnect all AC power during installation. • KEEP OUT OF REACH OF CHILDREN • A green colored terminal marked "Earth Ground" is located inside the wiring compartment.

  • Page 7: Table Of Contents

    Table of Contents OPERATION General........................1 Water Chemistry......................1 Controls........................6 Maintenance.......................8 INSTALLATION Mounting........................9 Plumbing........................10 Wiring.........................11 TROUBLESHOOTING Troubleshooting......................14 WARRANTY Warranty........................16...

  • Page 8: General

    OPERATION The AquaRite CUL Electrolytic Chlorine Generator is an automatic chlorine generation system for pool or spa sanitation. A Maximum of 95,000 Litres (25,000 Gallons) of water can be treated with one Aquarite CUL Electrolytic Chlorine Generator unit. The operation requires a low concentration of salt (sodium chloride) in the pool water. These levels are low enough that it normally will not be tasted.
  • Page 9 Saturation index The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance". Your water is properly balanced if the Si is 0 ±.2.If the Si is below -0.2, the water is corrosive and plaster pool walls will be dissolved into the water.
  • Page 10 Salt Level Use the chart on page 4 to determine how much salt in Kg (or Pounds) need to be added to reach the recommended levels. Use the equations below (measurements are in feet/gallons and meters/liters) if pool size is unknown. Gallons Liters (pool size in feet)
  • Page 11 {Diagram}...
  • Page 12 {Diagram}...

  • Page 13: Controls

    Controls Main Switch AUTO: For normal operation, the Main Switch should be left in the AUTO position. In this position the AquaRite CUL Electrolytic Chlorine Generator will produce chlorine according to the "Desired Output %" adjustment setting for the entire filtering/pumping cycle. SUPER CHLORINATE: When you have an abnormally high bather load, a large amount of rain, a cloudy water condition, or any other condition which needs a large amount of purification to be introduced, put the Main Switch in the SUPER CHLORINATE position.
  • Page 14 "Desired Output %" adjustment knob The "Desired Output %" adjustment knob is located in the lower center of the AquaRite CUL Electrolytic Chlorine Generator control panel. This setting is used to control the amount of chlorine the AquaRite CUL Electrolytic Chlorine Generator generates.

  • Page 15: Maintenance

    Maintaining the AquaRite CUL Electrolytic Chlorine Generator System To maintain maximum performance, it is recommended that you open and visually inspect the AquaRite CUL Electrolytic Chlorine Generator Cell every 3 months or after cleaning your filter. The AquaRite CUL Electrolytic Chlorine Generator will remind you to do this by flashing the "Inspect Cell"...

  • Page 16: Installation

    INSTALLATION Installation must be performed in accordance with Local and NEC codes. {Diagram} Preparing Pool/Spa Water Refer to page 1 for recommended chemical levels. The pool's chemistry must be balanced BEFORE activating the AquaRite CUL Electrolytic Chlorine Generator. NOTE: If the pool does not have new water, add 1 liter (1 quart) of metal remover and 1 liter (1 quart) of non-copper based algaecide to the pool, per manufacturer’s instructions.

  • Page 17: Plumbing

    Plumbing Ensure that the AquaRite CUL Electrolytic Chlorine Generator installation does not constitute a cross connection with the local potable water supply. Consult local plumbing codes. AquaRite CUL Electrolytic Chlorine Generator flow switch and cell should be plumbed in the return line to the pool/spa.

  • Page 18: Wiring

    Wiring Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow Local and NEC electrical codes. To provide safe operation, the AquaRite CUL Electrolytic Chlorine Generator must be properly grounded and bonded. Input Power For stand alone operation: Wire the AquaRite CUL Electrolytic Chlorine Generator to the LOAD SIDE of the filter pump timer.
  • Page 19 Input Power for use with Pentair and Polaris controls: Wire the AquaRite CUL Electrolytic Chlorine Generator DIRECTLY to 120/240VAC power (not through timer or relay). {Diagram} Optional Pentair and Polaris controls: The Pentair and Polaris controls use a 4 wire connection to communicate to the AquaRite CUL Electrolytic Chlorine Generator and can be wired up to 152 meters (500 feet) apart.
  • Page 20 Polaris - Attach wires to proper screw terminals as shown below. Note that screw terminal "1" is marked on the Polaris PCB. {Diagram}...

  • Page 21: Troubleshooting

    Troubleshooting You may also call for technical assistance at 888-921-POOL. Technicians at the factory are available from 8:00 AM to 8:00 PM Eastern time, Monday through Friday. Be sure to have the following information when you call: Model and Serial # of control and cell Date of installation Installing Company or Dealer Salt level...
  • Page 22 "Check Salt" LED illuminated or flashing Check salt level in pool/spa. If salt level is low, add salt according to chart on page 4.Before adding large quantities of salt, it is advisable to have your salt level professionally checked. "HighSalt" LED illuminated Check salt level in pool/spa.
  • Page 23 Limited Warranty—Pool Automation & Chlorination Products 10/1/2004 This warranty statement is applicable to all pool automation and chlorination products manufactured by Goldline Controls, Inc. (Goldline) on or after October 1, 2004. See the appropriate warranty statement for other Goldline products or for pool automation and chlorination products produced prior to October 1, 2004. Aqua Rite/Trol/Logic—Residential pools in USA or Canada: Goldline warrants Aqua Rite, Aqua Trol, and Aqua Logic products (products with Goldline part numbers starting with AQ-RITE-, AQ-TROL-, AQ-LOGIC-, AQL-P-, AQL-PS-,or AQL-CL-) installed on private, residential swimming...
  • Page 24 {Diagram} Goldline Controls, Inc., A Hayward Company N. Kingstown, RI 02852 USA 888-921-POOL (7665) 092009 Copyright © 2004 Goldline Controls, Inc...
