peplink Transit Mini User Manual

For more information, please visit peplink.com
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pepwave MAX
User Manual

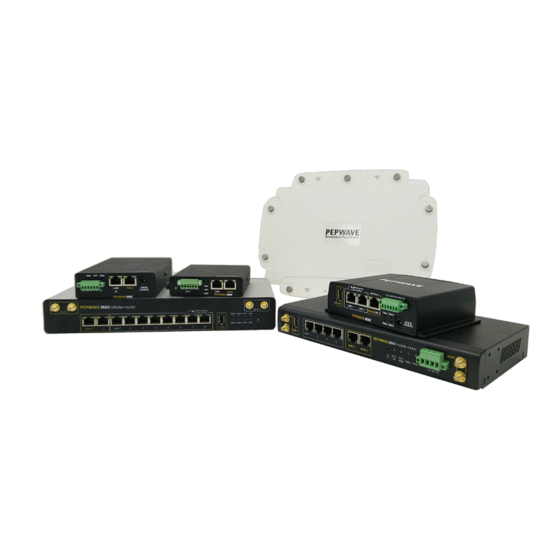

Pepwave Products:
MAX 700 / HD2 / HD2 IP67 / HD2 mini / HD2 Dome / HD4 / HD4 MBX /HD4 IP67 / Transit /
Transit Mini / BR1 Classic / BR1 MK2 / BR1 Slim / BR1 ENT / BR1 M2M / BR1 Mini / BR1 Mini
Core / BR1 ESN / BR1 Pro LTE / BR1 IP55 / BR1 IP67/ BR2 IP55 / On-The-Go / MAX HD2 /
HD4 with MediaFast / SpeedFusion Engine / UBR LTE / PDX
Pepwave Firmware 8.1.2
May 2021
Copyright & Trademarks
Specifications are subject to change without notice. Copyright © 2020 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are
trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transit Mini and is the answer not in the manual?

Questions and answers

Related Manuals for peplink Transit Mini

Summary of Contents for peplink Transit Mini

  • Page 1 Pepwave Products: MAX 700 / HD2 / HD2 IP67 / HD2 mini / HD2 Dome / HD4 / HD4 MBX /HD4 IP67 / Transit / Transit Mini / BR1 Classic / BR1 MK2 / BR1 Slim / BR1 ENT / BR1 M2M / BR1 Mini / BR1 Mini...

  • Page 2: Table Of Contents

    AP Controller Other Supported Features Pepwave MAX Mobile Router Overview MAX 700 MAX HD2 MAX HD2 IP67 MAX HD2 mini MAX HD2 Dome MAX Transit / MAX Transit Duo (CAT-12) MAX Transit (CAT-18) MAX Transit Mini BR1 ESN MAX HD2 and HD4 with MediaFast...
  • Page 3 Car Mount IP67 Installation Guide PDX Accessory Kit Installation Guide Connecting to the Web Admin Interface SpeedFusion Cloud Activate SpeedFusion Cloud Service Enable SpeedFusion Cloud Connect Clients to Cloud Link Wi-Fi to Cloud Optimize Cloud Application https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 4 Viewing MediaFast Statistics Bandwidth Bonding SpeedFusionTM / PepVPN PepVPN The Pepwave Router Behind a NAT Router IPsec VPN IPsec VPN Settings Outbound Policy Outbound Policy Adding Rules for Outbound Policy Algorithm: Weighted Balance Algorithm: Persistence Algorithm: Enforced https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 5 Intrusion Detection and DoS Prevention Content Blocking Application Blocking Web Blocking Customized Domains Exempted User Groups Exempted Subnets URL Logging Routing Protocols OSPF & RIPv2 Remote User Access L2TP with IPsec OpenVPN PPTP Authentication Methods Miscellaneous Settings https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 6 Wireless SSID Mesh / WDS Wireless Client Nearby Device Event Log Toolbox System Settings Admin Security Firmware Web admin interface : automatically check for updates Web admin interface : install updates manually The InControl method https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 7 Client List WINS Client UPnP / NAT-PMP OSPF & RIPv2 SpeedFusion Status Event Log WAN Quality Usage Reports Real-Time Hourly Daily Monthly Appendix A: Restoration of Factory Defaults Appendix B: FusionSIM Manual Appendix C: Declaration https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 8 Copyright @ 2021 Pepwave...

  • Page 9: Introduction And Scope

    This manual covers setting up Pepwave routers and provides an introduction to their features and usage. Tips Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction! https://youtu.be/13M-JHRAICA https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 10: Glossary

    Maximum Segment Size Network Address Translation PPPoE Point to Point Protocol over Ethernet Quality of Service SNMP Simple Network Management Protocol Transmission Control Protocol User Datagram Protocol Virtual Private Network VRRP Virtual Router Redundancy Protocol https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 11: Product Features

    4G LTE modem. Below is a list of supported features on Pepwave routers. Features vary by model. For more information, please see peplink.com/products. Supported Network Features 1.1.1 ●...

  • Page 12: Lan

    ● Splash screen of open networks, login page for secure networks ● Customizable built-in captive portal ● Supports linking to outside page for captive portal 1.1.6 Outbound Policy ● Link load distribution per TCP/UDP service https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 13: Ap Controller

    Quality of service for different applications and custom protocols ● User group classification for different service levels ● Bandwidth usage control and monitoring on group- and user-level ● Application prioritization for custom protocols and DSL/cable optimization https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 14: Other Supported Features

    ● UPnP / NAT-PMP ● Real-time, hourly, daily, and monthly bandwidth usage reports and charts ● IPv6 support ● Support USB tethering on Android 2.2+ phones * Not supported on MAX Surf-On-The-Go, and BR1 variants https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 15: Pepwave Max Mobile Router Overview

    MAX 700 2.1.1 Panel Appearance 2.1.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 16 Client(s) connected to wireless network LAN and Ethernet WAN Ports Green LED 10 / 100/ 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 17: Max Hd2

    MAX HD2 For certification information, please refer to Appendix B: Declaration Panel Appearance 2.2.1 https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 18 LAN and Ethernet WAN Ports 1000 Mbps Green LED 10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 19: Max Hd2 Ip67

    MAX HD2 IP67 2.3.1 Panel Appearance 2.3.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 20: Max Hd2 Mini

    MAX HD2 mini 2.4.1 Panel Appearance 2.4.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Cellular Indicators Disabled or no SIM card inserted...

  • Page 21: Max Hd2 Dome

    POE Disabled Blinking 10 / 100 / 1000 Mbps and Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports MAX HD2 Dome 2.5.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 22 Copyright @ 2021 Pepwave...

  • Page 23: Max Transit / Max Transit Duo (Cat-12)

    MAX Transit / MAX Transit Duo (CAT-12) 2.6.1 Panel Appearance 2.6.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 24: Max Transit (Cat-18)

    10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports MAX Transit (CAT-18) 2.7.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 25 The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Cellular Indicators Disabled or no SIM card inserted Cellular 1 / https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 26: Max Transit Mini

    MAX Transit Mini Panel Appearance 2.8.1 2.8.2 LED indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 27: Br1 Esn

    BR1 ESN Panel Appearance 2.9.1 2.9.2 LED indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 28: Max Hd2 And Hd4 With Mediafast

    Connected to wireless network(s) without traffic Cellular Indicators Disabled or no SIM card inserted Cellular Blinking slowly Connecting to network(s) Green Connected to network(s) 2.10 MAX HD2 and HD4 with MediaFast 2.10.1 Panel Appearance 2.10.2 LED Indicators https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 29 No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports Ethernet WAN Ports 1000 Mbps Green LED 10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 30: Max Hd4

    Port is not connected Port Type Auto MDI/MDI-X ports 2.11 MAX HD4 2.11.1 Panel Appearance 2.11.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 31 Auto MDI/MDI-X ports Ethernet WAN Ports 1000 Mbps Green LED 10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 32: Max Hd4 Mbx (Cat-12)

    2.12 MAX HD4 MBX (CAT-12) For certification information, please refer to Appendix B: Declaration 2.12.1 Panel Appearance 2.12.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators Status System initializing https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 33 Connected to wireless network(s) without traffic LAN and Ethernet WAN Ports Green LED 10 / 100 / 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 34: Max Hd2/4 Mbx (Cat-18)

    Boot up error Green Ready Wi-Fi AP and Wi-Fi WAN Indicators Disabled Intermittent Wi-Fi WAN / Blinking slowly Connecting to network(s) Cellular 1 / Blinking Connected to network(s) with traffic Cellular 2 Connected to network(s) without traffic https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 35: Max Hd4 Ip67

    2.14 MAX HD4 IP67 2.14.1 Panel Appearance 2.14.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 36: Max Br1 Classic

    2.15 MAX BR1 Classic For certification information, please refer to Appendix B: Declaration 2.15.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 37 Connecting to wireless network(s) Wi-Fi Blinking Connected to wireless network(s) with traffic Connected to wireless network(s) without traffic Cellular Indicators Disabled or no SIM card inserted Cellular Blinking slowly Connecting to network(s) Green Connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 38: Max Br1 Mk2

    Appendix B: Declaration 2.16.1 Panel Appearance 2.16.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 39 LAN and Ethernet WAN Ports 1000 Mbps Green LED 10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 40: Max Br1 Slim

    Connecting to wireless network(s) Wi-Fi Blinking Connected to wireless network(s) with traffic Connected to wireless network(s) without traffic Cellular Indicators Disabled or no SIM card inserted Cellular Blinking slowly Connecting to network(s) Green Connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 41: Max Br1 Mini

    Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports 2.18 MAX BR1 Mini For certification information, please refer to Appendix B: Declaration 2.18.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 42 Disabled or no SIM card inserted Cellular Blinking slowly Connecting to network(s) Green Connected to network(s) Wi-Fi Indicators Disabled intermittent Blinking slowly Connecting to wireless network(s) Wi-Fi Blinking Connected to wireless network(s) with traffic Connected to wireless network(s) without traffic https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 43: Max Br1 Mini Core

    The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Cellular Indicators Disabled or no SIM card inserted Cellular Blinking slowly Connecting to network(s) Green Connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 44: Max Br1 M2M

    2.20 MAX BR1 M2M 2.20.1 Panel Appearance 2.20.2 LED Indicators https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 45 Green Connected to network(s) LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 46: Max Br1 Ent

    Connected to network(s) LAN and Ethernet WAN Ports Green LED 10 / 100 / 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 47: Max Br1 Pro

    The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Cellular Indicators Disabled or no SIM card inserted Cellular Blinking Slowly Connecting to network(s) Green Connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 48: Max Hotspot

    10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports 2.23 MAX Hotspot 2.23.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 49: Max Br1 Ip55

    10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports 2.24 MAX BR1 IP55 2.24.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 50 Disabled or no SIM card inserted Blinking Connecting to network(s) in Standby Mode Green Connected to network(s) in Priority 1 (Active) LAN and WAN Indicators Powered-on device connected to Ethernet port Green No device connected to Ethernet port https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 51: Max Br2 Ip55

    Disabled Intermittent Blinking slowly Connecting to wireless network(s) Wi-Fi Blinking Connected to wireless network(s) with traffic Connected to wireless network(s) without traffic Cellular Indicators Disabled or no SIM card inserted Cellular Connecting or connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 52: Max Br1 Ip67

    10 Mbps / 100 Mbps or port is not connected Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports 2.26 MAX BR1 IP67 2.26.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 53: Max On-The-Go

    Connected to AP Status Indicators System initializing Status Booting up or busy Green Ready LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 54: Speedfusion Engine

    Port Type Auto MDI/MDI-X ports 2.28 SpeedFusion Engine 2.28.1 Panel Appearance 2.29 UBR LTE 2.29.1 Panel Appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 55 Data is transferring No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports Cellular Indicators Disabled or no SIM card inserted Cellular Blinking Slowly Connecting to network(s) Green Connected to network(s) https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 56: Pdx

    2.30 PDX 2.30.1 Panel Appearance 2.30.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators No battery installed Charging Status Blinking red Low Battery Green Full Charged https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 57: Advanced Feature Summary

    In Drop-in Mode, you can conveniently install your Peplink router without making any changes to your network. For any reason your Peplink router looses power, the LAN Bypass will safely and automatically bypass the Peplink router to resume your original network connection.

  • Page 58: Per-User Bandwidth Control

    High Availability via VRRP When your organization has a corporate requirement demanding the highest availability with no single point of failure, you can deploy two Peplink routers in High Availability mode. With High Availability mode, the second device will take over when needed.

  • Page 59: Usb Modem And Android Tethering

    USB Modem and Android Tethering For increased WAN diversity, plug in a USB LTE modem as a backup. Peplink routers are compatible with over 200 modem types. You can also tether to smartphones running Android 4.1.X and above. Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants)

  • Page 60: Sim-Card Ussd Support

    DPI Engine The DPI report written in the updated KB article will show further information on InControl2 through breaking down application categories into subcategories. https://forum.peplink.com/t/updated-ic2-deep-packet-inspection-dpi-reports-and- everything-you-need-to-know-about-it/29658 NetFlow NetFlow protocol is used to track network traffic. Tracking information from NetFlow can be sent to the NetFlow collector, which analyzes data and generates reports for review.

  • Page 61: Wi-Fi Air Monitoring

    Pepwave routers support Wi-Fi “Air Monitoring Mode” which used to troubleshoot remotely and proactively monitor Wi-Fi and WAN performance. The report can be viewed under InControl 2 > Reports > AirProbe Reports after enabling Wi-Fi Air Monitoring. Note: To enable this feature, go to https://<Device's IP>/cgi-bin/MANGA/support.cgi https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 62: Installation

    Card, connect to one of the WAN ports on the Pepwave router. Repeat the same procedure for other WAN ports. Connect the power adapter to the power connector on the rear panel of the Pepwave router, and then plug it into a power outlet. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 63: Configuring The Network Environment

    For advanced configuration, go to Section 9, Configuring the LAN Interface(s). ● WAN configuration For basic configuration, refer to Section 8, Connecting to the Web Admin Interface. For advanced configuration, go to Section 9.2, Captive Portal. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 64: Mounting The Unit

    The Pepwave MAX700/HD2 can be mounted in a vehicle using the included mounting brackets. Place the mounting brackets by the two sides and screw them onto the device. IP67 Installation Guide Installation instructions for IP67 devices can be found here: http://download.peplink.com/manual/IP67_Installation_Guide.pdf PDX Accessory Kit Installation Guide 5.4.1 Battery Set appearance https://www.peplink.com...
  • Page 65 ● Step 1: Lock the battery set in the slot with 2 pcs M3 screws. ● Step 2: Plug power cable into the socket https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 66 ● STEP 3: Lock the slot cover with 4 pcs M3 screws. 5.4.2 SFE-DUO Set appearance https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 67 ● STEP 1: Assemble SMA cables to the device ● STEP 2: Assemble bracket to the device https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 68 ● STEP 3: Assemble SMA connectors to the bracket https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 69 ● STEP 4: Lock the SFE-Duo set in the slot with 2 pcs M3 screws. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 70 ● STEP 5: Connect DC power & ETH port ● STEP 6: Lock the slot cover with 4 pcs M3 screws. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 71 Copyright @ 2021 Pepwave...

  • Page 72: Connecting To The Web Admin Interface

    You must change the default password on the first successful logon. ● Password requirements are: A minimum of 10 lower AND upper case characters, ● including at least 1 number. When HTTP is selected, the URL will be redirected to HTTPS by default. ● https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 73 Configuration changes (e.g. WAN, LAN, admin settings, etc.) will take effect only after clicking the Save button at the bottom of each page. The Apply Changes button causes the changes to be saved and applied. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 74: Speedfusion Cloud

    SpeedFusion Cloud With Peplink products, your device is able to connect to SpeedFusion Cloud without the use of a second endpoint. This service has wide access to a number of SpeedFusion endpoints hosted from around the world, providing your device with unbreakable connectivity wherever you are.* *SpeedFusion Cloud is supported in firmware version 8.1.0 and above.
  • Page 75 Select the devices that you wish to activate SpeedFusion Cloud on and Click ACTIVATE. From System > Features Add-ons, paste the license key into the window and click on Activate once you have received the license key. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 76 Copyright @ 2021 Pepwave...

  • Page 77: Enable Speedfusion Cloud

    Enable SpeedFusion Cloud Enable SpeedFusion Cloud from SpeedFusion Cloud > Choose Cloud Location. Choose Automatic > Click on the green tick button to confirm the change. Click on Apply Changes to save the change https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 78 By default, the router will build a SpeedFusion tunnel to the SpeedFusion Cloud https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 79 Copyright @ 2021 Pepwave...
  • Page 80 If you are running a latency sensitive service like video streaming or VOIP, a WAN Smoothing sub-tunnel can be created. Navigate to Speedfusion Cloud > Choose a cloud location > SFC. A Speedfusion tunnel configuration window will pop out. Click on the + sign to create the WAN Smoothing sub-tunnel. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 81 Copyright @ 2021 Pepwave...
  • Page 82 Click on Save and Apply Changes to save the configuration. Now, the router has 2 Speedfusion tunnels to the Speedfusion Cloud. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 83 Create an outbound policy to steer the internet traffic to go into Speedfusion Cloud. Please go to Advanced > Outbound Policy, click on Add Rule to create a new outbound policy. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 84: Connect Clients To Cloud

    Connect Clients to Cloud SpeedFusion Cloud provides a convenient way to route the LAN client to the cloud. From SpeedFusion Cloud > Connect Clients to Cloud. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 85: Link Wi-Fi To Cloud

    SpeedFusion Cloud provides a convenient way to route the Wi-Fi client to the cloud from SpeedFusion Cloud > Link Wi-Fi to Cloud. This option is available for Balance 20X, Balance 30 Pro, and Balance One. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 86 Create a new SSID for SpeedFusion Cloud. The new SSID will inherit all settings from one of the existing SSIDs including the Security Policy. Then click Save follow by Apply Changes. SpeedFusion Cloud SSID will be shown on Dashboard. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 87: Optimize Cloud Application

    Go to SpeedFusion Cloud > Optimize Cloud Application. Select a Cloud application to route through SpeedFusion Cloud from the drop down list > Click > Save > Apply Changes. Click the to remove a selected Cloud application to route through SpeedFusion Cloud. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 88: Configuring The Lan Interface(S)

    The IP address and subnet mask of the Pepwave router on the LAN. Network Settings Name Enter a name for the LAN. Enter a number for your VLAN. VLAN ID Inter-VLAN routing Check this box to enable routing between virtual LANs. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 89 This allows the device to inject Option 82 with Router Name information before DHCP Option 82 forwarding the DHCP Request packet to a PepVPN peer, such that the DHCP Server can identify where the request originates from. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 90 In addition to standard DHCP options (e.g., DNS server address, gateway address, Extended subnet mask), you can specify the value of additional extended DHCP options, as DHCP Option defined in RFC 2132. With these extended options enabled, you can pass additional configuration information to LAN hosts. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 91 - Advanced feature, please click the button on the top right hand corner of the Static Route section to activate and configure Virtual Network Mapping to resolve network address conflict with remote peers. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 92 NAT'ed and behaves like coming from the same Virtual IP Address. WINS Server Settings Check the box to enable the WINS server. A list of WINS clients will be displayed Enable at Status>WINS Clients. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 93 WAN/VPN/LAN DNS resolver is selected, all of the WAN’s DNS resolvers will selected. If a SpeedFusion peer is selected, you may enter the VPN peer’s DNS resolver IP address(es). Queries will be forwarded to the selected https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 94 Bonjour Forwarding Settings Enable Check this box to turn on Bonjour forwarding. Choose Service and Client networks from the drop-down menus, and then click Bonjour Service to add the networks. To delete an existing Bonjour listing, click https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 95 WAN connections. Some MAX units also support multiple WAN connections after activating drop-in mode, though a SpeedFusion license may be required to activate more than one WAN port. Please note the Drop-In Mode is mutually exclusive with VLAN. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 96 Access to this IP address will be passed through to the LAN port if this device is not Shared IP serving the service being accessed. The shared IP address will be used in https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 97 The following settings are displayed when creating a new LAN or editing an existing LAN. IP Settings IP Address & Enter the Pepwave router’s IP address and subnet mask values to be used on the Subnet Mask LAN. Network Settings https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 98 WINS server by entering this unit's LAN IP address in their DHCP WINS Servers setting. Therefore, all PC clients in the VPN can resolve the NetBIOS names of other clients in remote peers. If you have enabled this option, a list of WINS https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 99 MAC address and network name in circuit and remote IDs. Check this box to enable DHCP Option 82. Once DHCP is set up, configure LAN Physical Settings, Static Route Settings, WINS Server Settings, and DNS Proxy Settings as noted above. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 100: Port Settings

    On this screen, you can enable specific ports, as well as determine the speed of the LAN ports, whether each port is a trunk or access port, can well as which VLAN each link belongs to, if any. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 101: Captive Portal

    Fill in the necessary information to complete your connection to the server and enable authentication. This authenticates your clients through a LDAP server. Upon selecting this option, you will see the following fields: LDAP Server https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 102 Splash Page and redirecting clients to a URL you define. The Portal Customization menu has two options: . Clicking displays a pop-up previewing the captive portal that your clients will see. Clicking displays the following menu: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 103 If you would like to use your own set of terms and conditions, please enter them Conditions here. If left empty, the built-in portal will display the default terms and conditions. Custom Landing Fill in this field to redirect clients to an external URL. Page https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 104: Configuring The Wan Interface(S)

    You can also set priorities on the Dashboard. Click the Details button in the corresponding row to modify the connection setting. Important Note Connection details will be changed and become effective immediately after clicking the Save and Apply button. Ethernet WAN https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 105 This is the number of consecutive check failures before treating a connection as Retries down. Recovery This is the number of responses required after a health check failure before treating Retries a connection as up again. Bandwidth Allowance Monitor Settings https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 106 This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers: ● changeip.com Dynamic DNS ● dyndns.org Service Provider ● no-ip.org ● tzo.com ● DNS-O-Matic Select Disabled to disable this feature. See Section 9.5 for configuration details. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 107: Dhcp Connection

    WAN IP address assigned from the DHCP server.) When Use the following DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 108: Static Ip Connection

    DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields. 9.1.3 PPPoE Connection This connection method is suitable if your ISP provides a login ID/password to connect via PPPoE. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 109 DNS servers are obtained along with the WAN IP address assigned from the DHCP server.) When Use the following DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 110: L2Tp Connection

    DNS Servers servers assigned by the PPPoE server to be used for outbound DNS lookups over the WAN connection. (The DNS servers are obtained along with the WAN IP address assigned from the PPPoE server.) https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 111 When Use the following DNS server address(es) is selected, you can enter custom DNS server addresses for this WAN connection into the DNS server 1 and DNS server 2 fields. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 112: Cellular Wan

    EV-DO users, a unique MEID identifier code (in hexadecimal format) is used by the MEID carrier to associate the EV-DO device with the user. This information is presented in hex and decimal format. IMEI This is the unique ID for identifying the modem in GSM/HSPA mode. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 113 WAN connection is no longer in the highest priority and has entered the standby Standby State state. When Remain connected is chosen, bringing up this WAN connection to active makes it immediately available for use. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 114 SIM cards. For routers that support the SIM Injector, you may select the SIM Card “Use Remote SIM Only” to provision a SIM from a SIM Injector. Further details on the SIM Injector found is available here: https://www.peplink.com/products/sim-injector/. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 115 This setting allows you to configure the APN settings of your connection. If Auto is Operator selected, the mobile operator should be detected automatically. The connected device Settings will be configured and connection will be made automatically. If there is any difficulty https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 116 The following values are used by the threshold scale: To define the threshold manually using specific signal strength values, please click on the question Mark and the following field will be visible. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 117 Dynamic DNS Settings This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers: Dynamic DNS ● changeip.com Service ● dyndns.org Provider ● no-ip.org ● tzo.com https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 118: Wi-Fi Wan

    This setting specifies the state of the WAN connection while in standby. The Standby State available options are Remain Connected (hot standby) and Disconnect (cold https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 119 If you are setting up a network with many Wi-Fi devices in close proximity, then you Output Power can configure the output power here. Click the “boost” button for additional power. However, with that option ticked, output power may exceed local regulatory limits. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 120 This setting specifies the health check method for the WAN connection. This value Method can be configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS Lookup. For mobile Internet connections, the value of Method can be https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 121 Connections will be considered as up if DNS responses are received from any one of the health check DNS servers, regardless of a positive or negative result. By default, the first two DNS servers of the WAN connection are used as the health check DNS servers. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 122 WAN connection as up again. By default, Recover Retries is set to 3. Using the default setting, a WAN connection that is treated as down will be considered as up again upon receiving three consecutive successful ping/DNS lookup responses. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 123 Due to dynamic DNS service providers’ policies, a dynamic DNS host expires automatically when the host record has not been not updated for a long time. Therefore, the Pepwave MAX performs an update every 23 days, even if a WAN’s IP address did not change. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 124: Creating Wi-Fi Connection Profiles

    Available options: ● Open ● WPA3 -Personal (AES:CCMP) WPA2/WPA3 -Personal (AES:CCMP) ● Security ● WPA2 – Personal: AES:CCMP WPA2 – Enterprise: AES: CCMP ● ● WPA/ WPA2 – Personal: TKIP/AES:CCMP ● WPA/ WPA2 – ENterprise: TKIP/AES:CCMP https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 125: Wan Health Check

    This field allows you to specify two DNS hosts’ IP addresses with which connectivity Health Check is to be tested via DNS lookup. DNS Servers If Use first two DNS servers as Health Check DNS Servers is checked, the first https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 126 Pepwave router will treat the corresponding WAN connection as down. Retries Default health retries is set to 3. Using the default Health Retries setting of 3, the corresponding WAN connection will be treated as down after three consecutive https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 127: Dynamic Dns Settings

    DNS service provider to perform an IP address update within the provider’s records. The settings for dynamic DNS service provider(s) and the association of hostname(s) are configured via Network>WAN>Details>Dynamic DNS Service Provider/Dynamic DNS Settings. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 128 DNS service providers’ policy, a dynamic DNS host will automatically expire if the host record has not been updated for a long time. Therefore the Pepwave router performs an update every 23 days, even if a WAN’s IP address has not changed. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 129: Advanced Wi-Fi Settings

    Indicate the preferred frequency to use for clients to connect. Frequency Important Note Per FCC regulation, the country selection is not available on all models marketed in the US. All US models are fixed to US channels only. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 130 Wi-Fi AP Settings section, which can be found at AP>Settings. Other models will display a separate section called Wi-Fi AP Advanced Settings, which can be found at Advanced>Wi- Fi Settings. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 131 Select the range you wish to cover with your Wi-Fi, and the router will make Convertor recommendations for the Slot Time and ACK Timeout. This field is for specifying the unit wait time before transmitting a packet. By Slot Time default, this field is set to 9 µs. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 132 There are 4 relative power levels available – Max, High, Mid, and Low. The Output Power actual output power will be bound by the regulatory limits of the selected country. Note that selecting the Boost option may cause the MAX’s radio output to exceed local regulatory limits. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 133: Contenthub Configuration

    11.3 Configure a website to be published from the ContentHub This option allows you to sync a website to the Pepwave router, this website will then be published with the specified domain from the router itself and makes the content available to https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 134 Username and Password. This field determines how often the Router will search for updates to the Period source content. Bandwidth Used to limit the bandwidth for each client to access the web server. Limit https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 135 When the sync complete, there is a summary as shown in the screenshot below: To access the content, open a browser in MFA’s client and enter the domain configured before (such as http://mytest.com). https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 136: Configure An Application To Be Published From The Contenthub

    ● Python (version 2.7.12) ● Ruby (version 2.3.3) ● Node.js (version 6.9.2) First install the desired framework in “Package Manager” as below: After installing the framework, you can select the type to “Application” and configure the website: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 137 Mediafast router will only execute start.sh and stop.sh when the corresponding website is enabled and disabled respectively. 2. Compress your application files and the bash script to .tar.gz format. 3. Upload this tar file to the router. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 138: Mediafast Configuration

    Whitelist (cache the specified domains only) or Blacklist (do not cache Addresses the specified domains). Source IP This setting allows caching to be enabled on custom subnets only. Subnet If "Any" is selected, then caching will apply to all subnets. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 139: Scheduling Content Prefetching

    In order for Mediafast devices to cache and deliver HTTPS content, every client needs to have necessary certificates installed*. *See https://forum.peplink.com/t/certificate-installation-for-mediafast-https-caching/ Cache Control Check these boxes to cache the listed content types or leave boxes unchecked to disable Content Type caching for the listed types.
  • Page 140 To cancel a scheduled download, click Actions To edit a scheduled download, click To delete a scheduled download, click Click to begin creating a new scheduled download. Clicking the button will cause New Schedule the following screen to appear: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 141 Simply provide the requested information to create your schedule. Clear Web Cache To clear all cached content, click this button. Note that this action cannot be undone. Clear Statistics To clear all prefetch and status page statistics, click this button. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 142: Viewing Mediafast Statistics

    12.3 Viewing MediaFast Statistics To get details on storage and bandwidth usage, select Status>MediaFast. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 143: Bandwidth Bonding Speedfusiontm / Pepvpn

    WAN routers to bond multiple Internet connections to increase site-to-site bandwidth and reliability. SpeedFusion functionality securely connects your Pepwave router to another Pepwave or Peplink device (Peplink Balance 210/310/380/580/710/1350 only). Data, voice, or video communications between these locations are kept confidential across the public Internet.
  • Page 144 Click the New Profile button to create a new VPN connection profile for making a VPN connection to a remote Pepwave or Peplink device via the available WAN connections. Each profile is for making a VPN connection with one remote Pepwave or Peplink Device. https://www.peplink.com...
  • Page 145 CSV. If you wish to paste a CSV, click the icon next to the “Remote ID / Preshared Key” setting. Remote These optional fields become available when X.509 is selected as the Pepwave ID/Remote MAX’s VPN authentication method, as explained above. To authenticate VPN https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 146 Traffic will be stopped for links that exceed the specified millisecond value with Latency respect to the lowest latency link. (e.g. Lowest latency is 100ms, a value of 500ms Difference Cutoff means links with latency 600ms or more will not be used) https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 147 You could also specify a DNS server to resolve incoming DNS requests. Click the checkbox next to Backup Site to designate a backup SpeedFusion profile that will take over, should the main PepVPN connection fail. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 148 When Recommended (default) is selected, a health check packet is sent every five seconds, and the expected detection time is 15 seconds. When Fast is selected, a health check packet is sent every three seconds, and the expected detection time is six seconds. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 149: The Pepwave Router Behind A Nat Router

    Important Note Peplink proprietary SpeedFusion uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols to allow inbound and outbound traffic to pass through the firewall.
  • Page 150 After clicking the Status button at the top right corner of the SpeedFusion table, you will be forwarded to Status>SpeedFusion , where you can view subnet and WAN connection information for each VPN peer. Please refer to Section 22.6 for details. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 151 IP Subnets Must Be Unique Among VPN Peers The entire interconnected SpeedFusion network is a single non-NAT IP network. Avoid duplicating subnets in your sites to prevent connectivity problems when accessing those subnets. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 152: Ipsec Vpn

    WAN2 and WAN3 for failover. 14.1 IPsec VPN Settings Many Pepwave products can make multiple IPsec VPN connections with Peplink, Pepwave, Cisco, and Juniper routers. Note that all LAN subnets and the subnets behind them must be unique.
  • Page 153 Copyright @ 2021 Pepwave...
  • Page 154 Choose Main Mode if both IPsec peers use static IP addresses. Choose Mode Aggressive Mode if one of the IPsec peers uses dynamic IP addresses. For forced UDP encapsulation regardless of NAT-traversal, tick this checkbox. Force UDP https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 155 Group 2: 1024-bit Diffie-Hellman group. The larger the group number, the higher the security. Group 5: 1536-bit is the third option. Phase 2 SA This setting specifies the lifetime limit of this Phase 2 Security Association. By Lifetime default, it is set at 28800 seconds. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 156 WAN Connection Priority WAN Connection Select the appropriate WAN connection from the drop-down menu. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 157: Outbound Policy

    The settings for managing and load balancing outbound traffic are located at Advanced>Outbound Policy or Advanced>PepVPN, depending on the model. 15.1 Outbound Policy Outbound policies for managing and load balancing outbound traffic are located at https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 158 A default rule can be defined for connections that cannot be matched with any of the rules. The default policy is Normal Application Compatibility. Want to know more about creating outbound rules? Visit our YouTube Channel for a video tutorial! https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 159: Adding Rules For Outbound Policy

    Under the Service heading, click Default to change these settings. To rearrange the priority of outbound rules, drag and drop them into the desired sequence. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 160 By default, Auto is selected as the Default Rule. You can select Custom to change the algorithm to be used. Please refer to the upcoming sections for the details on the available algorithms. To create a custom rule, click Add Rule at the bottom of the table. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 161 This setting specifies the source IP Address, IP Network, MAC Address or Grouped Network for traffic that matches the rule. Source This setting specifies the destination IP address, IP network, Domain name, SpeedFusion Destination Cloud, PepVPN Profile or Grouped network for traffic that matches the rule. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 162 ● Lowest Latency ● Fastest Response Time For a full explanation of each Algorithm, please see the following article: https://forum.peplink.com/t/exactly-how-do-peplinks-load-balancing-algorithmns-work/8059 Load Distribution This is to define the outbound traffic weight ratio for each WAN connection. Weight https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 163: Algorithm: Weighted Balance

    WAN connection relative to the total weight. Use the sliders to change each WAN’s weight. For example, with the following weight settings: ● Ethernet WAN1: 10 ● Ethernet WAN2: 10 ● Wi-Fi WAN: 10 ● Cellular 1: 10 ● Cellular 2: 10 https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 164: Algorithm: Persistence

    WAN connections for e-banking and other secure websites. As a result, a client computer will communicate using one IP address, eliminating the issues mentioned above. There are two persistent modes: By Source and By Destination. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 165: Algorithm: Enforced

    The highest priority WAN connection available will always be used for routing the specified type of traffic. A lower priority WAN connection will be used only when all higher priority connections have become unavailable. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 166: Algorithm: Overflow

    WAN connection that is not in full load. Drag and drop to specify the order of WAN connections to be used for routing traffic. Only the highest priority healthy connection that is not in full load will be used. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 167: Algorithm: Least Used

    A latency sensitive application must be routed through the lowest latency WAN, regardless of the WAN’s available bandwidth. 15.2.8 Expert Mode Expert Mode is available on some Pepwave routers for use by advanced users. To enable the https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 168 VPN subnets will be routed to the corresponding VPN peer. You can create custom Priority or Enforced rules and move them above the bar to override the SpeedFusion routes. Upon disabling Expert Mode, all rules above the bar will be removed. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 169: Port Forwarding

    Internet services (e.g. HTTP, HTTPS, etc.). After selecting an item from the Protocol Selection Tool drop-down menu, the protocol and port number remain manually modifiable. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 170: Upnp / Nat-Pmp Settings

    16.1 UPnP / NAT-PMP Settings UPnP and NAT-PMP are network protocols which allow a computer connected to the LAN port to automatically configure the router to allow parties on the WAN port to connect to itself. That https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 171 LAN ports. When the options are enabled, a table listing all the forwarded ports under these two protocols can be found at Status > UPnP / NAT-PMP. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 172: Nat Mappings

    The system maps these addresses to a number of public IP addresses Network (specified below) to facilitate outbound traffic. This option is only available when IP Network is selected. Inbound This setting specifies the WAN connections and corresponding WAN-specific https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 173 Outbound Policy section. Also note that WAN connections in drop-in mode or IP forwarding mode are not shown here. Click Save to save the settings when configuration has been completed. Important Note Inbound firewall rules override the Inbound Mappings settings. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 174: Qos

    Once users have been assigned to a user group, their internet traffic will be restricted by rules defined for that particular group. Please refer to the following two sections for details. 18.2 Bandwidth Control You can define a maximum download speed (over all WAN connections) and upload speed (for https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 175: Application

    When Supported Applications is selected, the Pepwave router will inspect network traffic and prioritize the selected applications. Alternatively, you can select Custom Applications and define the application by providing the protocol, scope, port number, and DSCP value. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 176: Dsl/Cable Optimization

    Users will not be able to download data at full speed until the uplink becomes less congested. DSL/Cable Optimization can relieve such an issue. When it is enabled, the download speed will become less affected by the upload traffic. By default, this feature is enabled. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 177: Firewall

    Inbound (WAN to LAN) ● Internal Network (VLAN to VLAN) The firewall also supports the following functionality: ● Intrusion detection and DoS prevention ● Web blocking With SpeedFusion enabled, the firewall rules also apply to VPN tunneled traffic. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 178: Outbound And Inbound Firewall Rules

    The outbound firewall settings are located at Advanced>Firewall>Access Rules>Outbound Firewall Rules. Click Add Rule to display the following screen: Inbound firewall settings are located at Advanced>Firewall>Access Rules>Inbound Firewall Rules. Click Add Rule to display the following screen: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 179 Internal Network firewall settings are located at Advanced>Firewall>Access Rules>Internal Network Firewall Rules. Click Add Rule to display the following window: Inbound / Outbound / Internal Network Firewall Settings https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 180 IP & Port settings. This setting specifies the action to be taken by the router upon encountering traffic that matches the both of the following: Action ● Source IP & port ● Destination IP & port https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 181 Default rule is set as Allow for Outbound, Inbound and Internal Network access. If the default inbound rule is set to Allow for NAT-enabled WANs, no inbound Allow firewall rules will be required for inbound port forwarding and inbound NAT mapping rules. However, if the default https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 182: Apply Firewall Rules To Pepvpn Traffic

    When this feature is enabled, the Pepwave router will detect and prevent the following kinds of intrusions and denial-of-service attacks. ● Port scan NMAP FIN/URG/PSH Xmas tree Another Xmas tree Null scan SYN/RST SYN/FIN ● SYN flood prevention ● Ping flood attack prevention https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 183: Content Blocking

    Choose applications to be blocked from LAN/PPTP/PepVPN peer clients' access, except for those on the Exempted User Groups or Exempted Subnets defined below. 19.2.2 Web Blocking Defines website domain names to be blocked from LAN/PPTP/PepVPN peer clients' access https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 184: Customized Domains

    With the subnet defined in the field, clients on the particular subnet(s) can be exempted from the access blocking rules. 19.2.6 URL Logging Click enable, and the enter the ip address and port (if applicable) where your remote syslog server is located. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 185: Routing Protocols

    If you want to specify your own ID, enter it in the Custom field. This is an overview of the OSPFv2 areas you have defined. Click on the area name Area to configure it. To set a new area, click Add. To delete an existing area, click https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 186 Available options are MD5 and Text. Enter the authentication key next to the drop- down menu. Interfaces Determine which interfaces this area will use to listen to and deliver OSPF packets To access RIPv2 settings, click https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 187: Bgp

    Click the Advanced tab from the top bar, and then click the Routing Protocols>BGP item on the sidebar to configure BGP. Click "x" to delete a BGP profile. Click "Add" to add a new BGP profile. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 188 Time in seconds to wait for a keepalive message from the neighbor before considering the BGP connection is staled. Hold Time This value must be either 0 (infinite hold time) or between 3 and 65535 inclusively. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 189 Mask will filtered. Otherwise, routes within the Networks and Subnet will be filtered. Export to other When this box is checked, routes learnt from this BGP profile will export to other BGP BGP Profile profiles. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 190 When this box is checked, routes learnt from this BGP profile will export to the OSPF Export to OSPF routing protocol. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 191: Remote User Access

    Continue to configure the authentication method. 21.2 OpenVPN Select OpenVPN and continue to configure the authentication method. The OpenVPN Client profile can be downloaded from the Status > device page after the configuration has been saved. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 192: Pptp

    Click Add to input username and password to create an account. After adding the user accounts, click username edit account password. Note: The username must contain lowercase letters, numerics, underscore(_), dash(-), at sign(@), and period(.) only. The password must be between 8 and 12 characters long. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 193 Enter the matching LDAP server details to allow for LDAP server authentication. Radius Server: Enter the matching Radius server details to allow for Radius server authentication. Active Directory: Enter the matching Active Directory details to allow for Active Directory server authentication. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 194: Miscellaneous Settings

    (or longer) since the last heartbeat signal, the slave Pepwave router becomes active. ● The slave Pepwave router initiates the WAN connections and binds to a previously configured LAN IP address. ● At a subsequent point when the master Pepwave router recovers, it will once again https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 195 If Configuration Sync. is checked, the serial number of the master unit is required Number here for the feature to work properly. The HA pair must share the same Virtual IP. The Virtual IP and the LAN Virtual IP Administration IP must be under the same network. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 196 LAN segment. For example, a firewall sitting behind the Pepwave router should set its default gateway as the virtual IP instead of the IP of the master router. In drop-in mode, no other configuration needs to be set. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 197: Certificate Manager

    This section allows for certificates to be assigned to the local VPN, Web Admin SSL, Captive Portal SSL, OpenVPN CA, Wi-Fi WAN Client certificate and Wi-Fi WAN CA Certificate. The following knowledge base article describes how to create self-signed certificates and import it to a Peplink Product. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 198: Service Forwarding

    22.3 Service Forwarding Service forwarding settings are located at Advanced>Misc. Settings>Service Forwarding. Service Forwarding When this option is enabled, all outgoing SMTP connections destined for any host at TCP port 25 will be intercepted. These connections will be redirected SMTP Forwarding to a specified SMTP server and port number.

  • Page 199: Web Proxy Forwarding

    Redirected server settings for each WAN can be set here. If forwarding is disabled for a WAN, web proxy connections for the WAN will be simply forwarded https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 200: Dns Forwarding

    Some Internet services need to be specially handled in a multi-WAN environment. Pepwave routers can handle these services such that Internet applications do not notice being behind a multi-WAN router. Settings for service passthrough support are available here. Service Passthrough Support https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 201 IPsec NAT-T that your IPsec system uses by checking Define custom ports. If the VPN contains IPsec site-to-site VPN traffic, check Route IPsec Site-to-Site VPN and choose the WAN connection to route the traffic to. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 202: Uart

    TCP/IP network. The serial interface can be enabled and parameters can be set on the web admin page under Advanced > UART. Make sure they match the serial device you are connecting to. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 203 If in doubt, swap Rx and Tx, and RTS and CTS, at the other end and give it another go. Once connected, your serial device should be accessible on your Pepwave MAX router LAN IP address at the specified TCP port. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 204: Gps Forwarding

    Ignition Sensing detects the ignition signal status of a vehicle it is installed in. This feature allows the cellular router to start up or shut down when the engine of that vehicle started turned off. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 205: Ignition Sensing Installation

    . Orange DC IN connected to permanent negative feed (ground) Black DC IN connected to permanent positive feed (power 12VDC, 2A)). * Currently not functional; will be used for additional features in future firmware https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 206 Connectivity diagram for devices with 4-pin connector Connectivity diagram for devices with terminal block connection https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 207: Gpio Menu

    UTC from either an external NTP server or via GPS and ensuring that connected devices always receive the correct time. Compatible with: BR1 ENT, 700 HW3, HD2/4, Transit https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 208: Grouped Networks

    The created network groups can be used in outbound policies, firewall rules. 22.10 Remote SIM Management The Remote SIM management accessible via Advanced > Misc Settings > Remote SIM Management, which enables SIM Injector discovery. The default is disabled. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 209 Please note that some Pepwave routers support SIM Injector, may refer to the link: https://www.peplink.com/products/sim-injector/ or Appendix B for more details on FusionSIM Manual. Remote SIM Host Settings Remote SIM Host Settings Active LAN Check this box is to Auto LAN discovery of the remote SIM server .

  • Page 210: Sim Toolkit

    The correct values can be obtained from your carrier. The default and recommended setting is Auto. 22.11 SIM Toolkit The SIM Toolkit, accessible via Advanced > Misc Settings > SIM Toolkit, supports two functionalities, USSD and SMS. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 211 Enter your USSD code under the USSD Code text field and click Submit. You will receive a confirmation. To check the SMS response, click Get. After a few minutes you will receive a response to your USSD code https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 212 The SMS option allows you to read SMS (text) messages that have been sent to the SIM in your Pepwave router. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 213: Ap Controller

    To add a new SSID, click Add. Note that the following settings vary by model. The below settings ishows a new SSID window with Advanced Settings enabled (these are available by selecting the question mark in the top right corner). https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 214 LAN port). The default value of this setting is 0, which means VLAN tagging is disabled (instead of tagged with zero). This setting specifies whether or not Wi-Fi clients can scan the SSID of this Broadcast SSID wireless network. Broadcast SSID is enabled by default. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 215 WPA2 – Enterprise ● ● WPA/WPA2 - Personal (TKIP/AES: CCMP) ● WPA/WPA2 – Enterprise When WPA/WPA2 - Enterprise is configured, RADIUS-based 802.1 x authentication is enabled. Under this configuration, the Shared Key option should be disabled. When https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 216 If more than one MAC address needs to be entered, you can use a carriage return to separate them. RADIUS Server Settings Enter the IP address of the primary RADIUS server and, if applicable, the secondary Host RADIUS server. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 217: Wireless Mesh

    Enter the shared key in the text field. Please note that it needs to match the shared keys of Shared Key the other APs in the Wireless Mesh settings. Click Hide / Show Characters to toggle visibility. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 218: Settings

    Pepwave MAX does not detect whether the AP is capable of transmitting at both frequencies. Instructions to transmit at unsupported frequencies will be ignored by the AP. Operating Country This drop-down menu specifies the national / regional regulations which the AP https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 219 This field determines that maximum signal strength each individual client will Strength receive. The measurement unit is megawatts. Threshold Max number of This field determines the maximum clients that can be connected to APs under Clients this profile. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 220 This field is only available when Frame Aggregation is enabled. It specifies the Frame Length frame length for frame aggregation. By default, it is set to 50000. - Advanced feature. Click the button on the top right-hand corner to activate. Web Administration Settings https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 221 This field allows you to specify a new administrator password. You may also click Admin Password the Generate button and let the system generate a random password automatically. Navigating to AP>Settings on some Pepwave models displays a screen similar to the one shown below: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 222 There are 4 relative power levels available – Max, High, Mid, and Low. The actual output power will be bound by the regulatory limits of the selected country. This option is for setting the transmit bit rate for sending a beacon. By default, Beacon Rate 1Mbps is selected. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 223 This option allows you to enable frame aggregation to increase transmission Aggregation throughput. This setting allows choosing a short or long guard period interval for your Guard Interval transmissions. - Advanced feature, please click the button on the top right-hand corner to activate. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 224: Ap Controller Status

    No. of APs offline. This graph displays the number of clients connected to each network at any given No.of Clients time. Mouse over any line on the graph to see how many clients connected to a https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 225 In addition, you could use the sliders at the bottom to further refine your timescale. Events This event log displays all activity on your AP network, down to the client level. Click View Alerts to see only alerts, and click the More… link for additional records. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 226: Access Point (Usage)

    On the right of the table, you will see the following icons: Click the icon to see a usage table for each client: Managed Wireless Devices Click the icon to configure each client https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 227 SSID, at that point in time. On the Data Usage by menu, you can display the information by SSID or by AP send/receive rate. Click the Event tab next to Wireless Usage to view a detailed event log for that particular device: https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 228: Wireless Ssid

    Wireless SSID 24.3 In-depth SSID reports are available under AP > Controller Status > Wireless SSID. Click the blue arrow on any SSID to obtain more detailed usage information on each SSID. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 229: Mesh / Wds

    Mesh, and track activity by MAC address by navigating to AP > Controller Status > Mesh / WDS. This table shows the detailed information of each AP, including protocol, transmit rate (sent / received), signal strength, and duration. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 230: Wireless Client

    Here, you will be able to see your network’s heaviest users as well as search for specific users. Click the icon to bookmark specific users, and click the icon for additional details about each user: https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 231: Nearby Device

    Nearby Device 24.6 A listing of near devices can be accessed by navigating to AP > Controller Status > Nearby https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 232: Event Log

    Event Log 24.7 You can access the AP Controller Event log by navigating to AP > Controller Status > Event Log. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 233: Toolbox

    To receive new firmware packs, you can click Check for Updates to download new packs, or you can click Manual Upload to manually upload a firmware pack. Click Default to define which firmware pack is default. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 234: System Settings

    For security reasons, after logging in to the web admin Interface for the first time, it is recommended to change the administrator password. Configuring the administration interface to be accessible only from the LAN can further improve system security. Administrative settings configuration is located at System>Admin Security. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 235 This option specifies the time value for authentication timeout. Accounting This specifies the access address and port of the external accounting server. Server Accounting This field is for entering the secret key for accessing the accounting server. Server Secret https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 236 If LAN/WAN is chosen, the WAN Connection Access Settings form will be displayed. LAN Connection Access Settings Allowed LAN This field allows you to permit only specific networks or VLANs to access the Web UI. Networks https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 237: Firmware

    Using the router’s interface to automatically check for an update, using the router’s interface to manually upgrade the firmware, or using InControl2 to push an upgrade to a router. The automatic upgrade can be done from System > Firmware. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 238: Web Admin Interface : Install Updates Manually

    Upgrading to the special build can be done using this method, or using IC2 if you are using that to manage your firmware upgrades. A manual upgrade using the GA firmware posted on the site may also be recommended or required for a couple of reasons. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 239: The Incontrol Method

    All of the Peplink/Pepwave GA firmware can be found here Navigate to the relevant product line (ie. Balance, Max, FusionHub, SOHO, etc). Some product lines may have a dropdown that lists all of the products in that product line. Here is a screenshot from the Balance line.

  • Page 240: Time

    The settings for this are located at System > Schedule Enable scheduling, and then click on your schedule name or on the New Schedule button to begin. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 241: Email Notification

    Click on the desired times to enable features at that time period. You can hold your Schedule Map mouse for faster entry. 26.5 Email Notification Email notification functionality provides a system administrator with up-to-date information on network status. The settings for configuring email notifications are found at System>Email Notification. https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 242 This setting specifies the email address the Pepwave router will use to send reports. Address Recipient’s This setting specifies the email address(es) to which the Pepwave router will send Email Address email notifications. For multiple recipients, separate each email addresses using the https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 243 After Test Email Notification is clicked, you will see this screen to confirm the settings: Click Send Test Notification to confirm. In a few seconds, you will see a message with detailed test results. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 244: Event Log

    26.6 Event Log Event log functionality enables event logging at a specified remote syslog server. The settings https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 245: Snmp

    The Pepwave router can also send push notifications to mobile devices that have Push Events our Mobile Router Utility installed. Check the box to activate this feature. For more information on the Router Utility, go to: www.peplink.com/products/router- utility 26.7 SNMP SNMP or simple network management protocol is an open standard that can be used to collect information about the Pepwave router.
  • Page 246 This option allows you to enable SNMP version 3. To add a community for either SNMPv1 or SNMPv2, click the Add SNMP Community button in the Community Name table, upon which the following screen is displayed: https://www.peplink.com Copyright @ 2021 Pepwave...
  • Page 247 When MD5 or SHA is selected, an entry field will appear for the password. This setting specifies via a drop-down menu one of the following valid privacy protocols: ● NONE Privacy Protocol ● When DES is selected, an entry field will appear for the password. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 248: Sms Control

    (;). Optionally, you can add phone number(s) to the whitelist. Only matching phone White List numbers are allowed to issue SMS commands. Phone numbers must be in the E.164 International Phone Numbers format. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 249: Incontrol

    26.9 InControl InControl is a cloud-based service which allows you to manage all of your Peplink and Pepwave devices with one unified system. With it, you can generate reports, gather statistics, and configure your devices automatically. All of this is now possible with InControl.

  • Page 250: Feature Add-Ons

    Some Pepwave routers have features that can be activated upon purchase. Once the purchase is complete, you will receive an activation key. Enter the key in the Activation Key field, click Activate, and then click Apply Changes. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 251: Reboot

    You can select the firmware version you would like to reboot the device with. The firmware marked with (Running) is the current system boot up firmware. Please note that a firmware upgrade will always replace the inactive firmware partition. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 252: Tools

    10 times. Packet Size can be set to a maximum of 1472 bytes. The ping utility is located at System>Tools>Ping, illustrated below: A system administrator can use the ping utility to manually check the connectivity of a particular LAN/WAN connection. https://www.peplink.com Copyright @ 2021 Pepwave...

  • Page 253: Traceroute Test
