Summarization of Contents
General Safety Information
Work Area Safety
Keep area clean, lit, avoid hazards, and keep bystanders clear for safe operation.
Electrical Safety
Ensure proper grounding, avoid wet conditions, protect cords, and use correct extension cords.
Personal Safety
Stay alert, dress appropriately, avoid accidental starts, and use safety equipment.
Tool Use and Care
Tool Usage Guidelines
Use correct tool, ensure switch function, disconnect power, maintain sharpness, check for damage, keep dry.
Service Requirements
Tool service must be by qualified personnel using identical replacement parts.
Specific Safety Information
Switch Safety
Understand momentary switch function and risks of entanglement with power drive.
Cutter Safety
Ensure correct pipe size, keep hands clear, guards in place, stable setup, and secure power drive.
Product Description and Specifications
Product Description

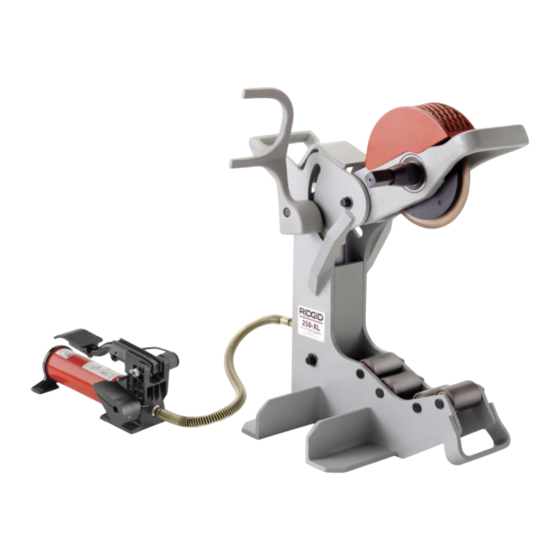

Overview of RIDGID 258/258XL Power Pipe Cutters and their cutting capabilities.
Technical Specifications
Details pipe capacity, dimensions, and weight for 258 and 258XL models.
Standard Equipment Included
Lists essential components shipped with the cutter frame, foot pump, and adapter.
Available Accessories
Lists optional items like power drives, transport carts, and specialized cutter wheels.
Assembly Instructions
Connecting Hydraulic Foot Pump
Connect foot pump to hydraulic cylinder via quick-disconnect coupling and relieve pressure.
Connecting 700 Power Drive
Install adapter into power drive and secure power drive to cutter's square drive.
Inspection and Setup Procedures
Daily Pipe Cutter Inspection
Inspect power drive, wheel, rollers, fluid, cords, and parts for damage before each use.
Work Area and Cutter Setup
Set up in a safe, well-lit, dry, level area with adequate clearance and proper power connection.
Using Pipe Supports
Importance of Pipe Support
Use supports to prevent cutter wheel damage and ensure proper pipe fall away from blade.
Pipe Support Placement
Position supports so pipe falls away from cutter; placement varies by pipe length and cutter position.
Operating Instructions
Standard Cutting Procedure
Support pipe, mark, position, advance cutter, engage power drive, seat wheel, and repeat pumping for cut.
Cutting Thin Wall Pipe
Use a specific thin wheel for Schedule 10-20 pipe with adjusted pumping and power drive use.
Special Procedures
Adjusting Pivot Arm for Pipe Size
Adjust pivot arm for 21/2"-4" or 6"-8" pipe sizes on the 258 model by repositioning hitch pin.
Changing the Cutter Wheel
Unplug tool, remove adapter/drive, loosen nut, and replace worn cutter wheel assembly.
Transporting the Cutter
Manual Transport Guidelines
Use hand-holds, remove power drive, and have two operators carry the unit.
Transport Cart Usage
Utilize an optional two-wheeled cart for easier transport of the cutter.
Maintenance and Service
Routine Maintenance Checks
Check rollers, ball transfers, screws, and hydraulic fluid levels regularly.
Machine Storage Recommendations
Store indoors, covered, in a locked area to prevent unauthorized access and damage.
Authorized Service and Repair
For issues not covered by maintenance, contact authorized service centers or the factory.
Service Contact Information
Provides contact details for Ridge Tool Company Technical Service Department for questions.
