NAPCO FIREWOLF Brochure

NAPCO FIREWOLF Brochure

Robust, flexible 24v commercial fire systems

Advertisement

Quick Links

Introducing the all new
Napco Commercial
Firewolf Series
Robust, flexible
24V commercial fire
systems supporting
up to 255 zones/
points using all-new
fire devices in hardwire,
wireless, conventional
& addressable
technologies

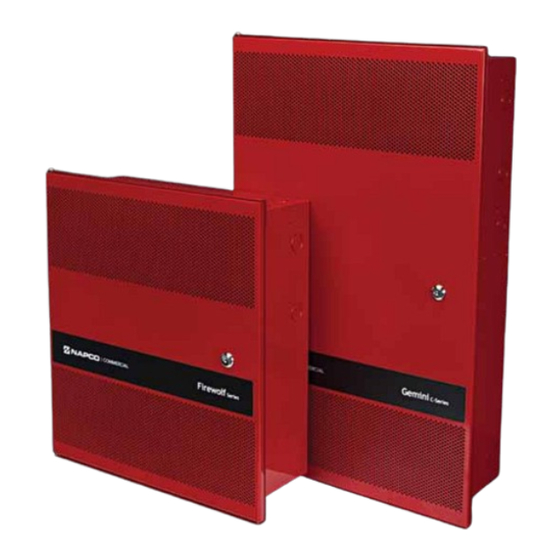

Gem-C Firewolf Series 24V Commercial
Intelligent Addressable Fire Panel,
NFPA72-compliant,
96 outputs, 4 onboard
NACs (6.5A total), expandable to 24, built in
Sync/Strobe/Horn Module (System Sensor &
Wheelock) and dual line DACT plus optional
TCP/IP reporting. Nearly a mile., max. wire
run – any wire type –ideal for retrofits. Also
supports legacy and conventional devices,
too. Powerful battery capacity up to 32Ah
total.
Features remote smoke obscuration
reporting
More zones/points – up to 255
4
More power – 7 amps
4
More NAC'as – 4 on board
4
Built in strobe/horn sync
4
More standby power
4
32 Amp hour battery capacity
4
Regulated 24V output
4
Compliances -
NFPA 72, UL Commercial
Fire, UL864 9th Ed., UL985. (CSFM, FM, MEA
listings pending.)
:
NAC Extender
provides nearly 7A and
4 onboard NACs with up to 2A ea; up to
16Ah total battery capacity. Easily distributes
synched bell and strobe outputs with built
in module. Monitors AC, battery trouble,
tamper and ground fault on Napco bus or
provides universal FACP support.
Regulated Auxiliary Power Supplies
Commercial fire, 12V regulated 2A models;
or 1.75A version with plug-in transformer
Firewolf Advanced Analog Addressable
Commercial Fire Devices
support auto-drift
compensation and maintenance alert function
Gemini-C New UL Commercial Wireless
Line
with supervised tamper & automatic,
continuously supervised signal strength
(requires no manual test activation).
Firewolf Menu-Driven Custom Alpha
Keypads
Same familiar Napco ez-
programming and usage. (Keyswitch support,
too.)
24V Addressable &
Conventional Fire
255, 128 or 32 point kits

Advertisement

loading
Need help?

Need help?

Do you have a question about the FIREWOLF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NAPCO FIREWOLF

  • Page 1 Sync/Strobe/Horn Module (System Sensor & in module. Monitors AC, battery trouble, Wheelock) and dual line DACT plus optional tamper and ground fault on Napco bus or TCP/IP reporting. Nearly a mile., max. wire provides universal FACP support. run – any wire type –ideal for retrofits. Also...
  • Page 2 14.25” x 5.2” (H x W x D) without cover. (*Note: Only 1 SLC is battery capacity. Regulated 24V Aux. power. Monitors AC, battery accomodated.) 16Ah battery backup capacity. trouble, tamper and ground fault on Napco bus - Also Provides Universal FACP support for easy standardization in upgrades INPUTS Up to 255 Zones.
  • Page 3 4 OR 7 AMP MAIN POWER SUPPLY BATTERIES BATTERIES MUST BE ALL WHEELOCK OR ALL SYSTEM SENSOR BATTERIES BATTERIES...
  • Page 4 NAPCO COMMERCIAL FIREWOLF SERIES SYSTEM ORDERING INFO. Napco Commercial Fire Kits GEMC-FW-255KT 255 Point GEM-C Firewolf™ 24V Commercial Fire System Kit • 24V Panel, 255 Points via commercial addressable, wireless or conventional fire devices, 4 on board NACs providing up to 6.5A notification power • 7 Amp, 24V Power Supply...

This manual is also suitable for:

Commercial firewolf seriesGemc-fw-255ktGemc-fw-128ktGemc-fw-32kt
