CLIVET WSAN-XIN MF 45.2 Installation And Operating Manual

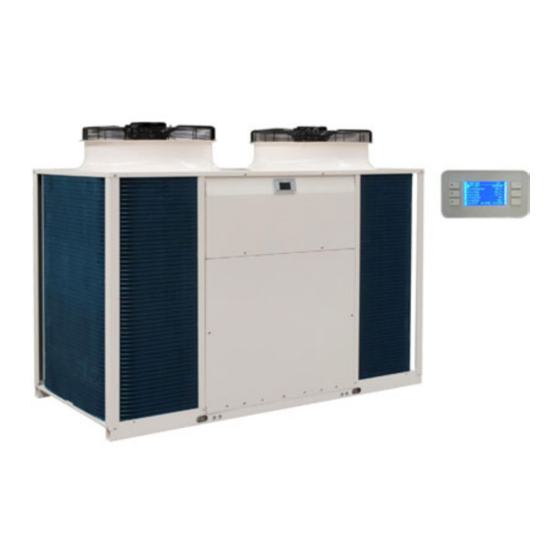

Multifunction heat pump with hot/chilled simuoltaneous water production for outdoor installation
Hide thumbs

Advertisement

Quick Links

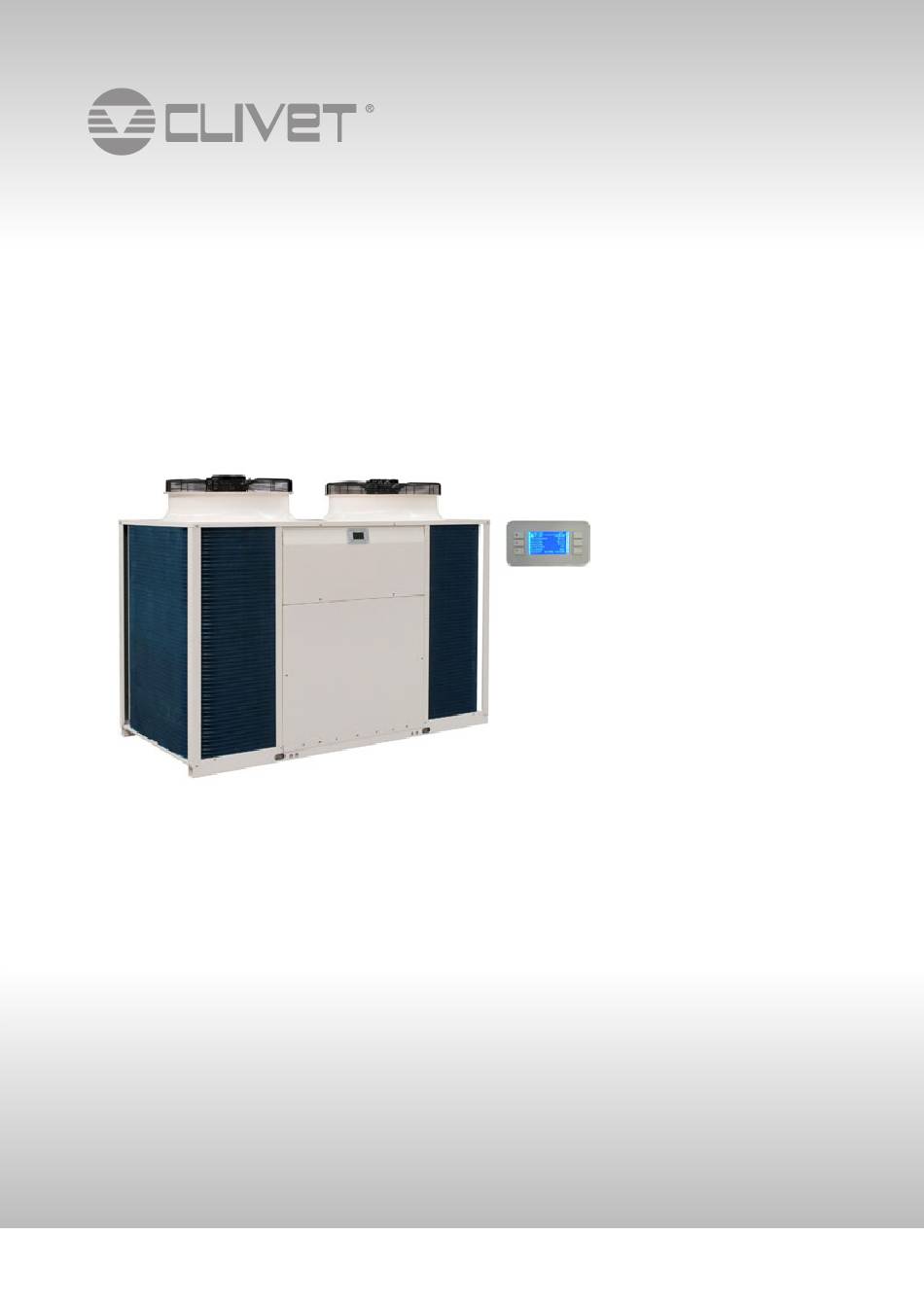

Installation and
operating manual
WSAN-XIN MF 18.2 - 45.2
Multifunction heat pump with hot/chilled simuoltaneous water production for
outdoor installation
M0M440M15-02
10-05-18

Advertisement

loading
Need help?

Need help?

Do you have a question about the WSAN-XIN MF 45.2 and is the answer not in the manual?

Questions and answers

Related Manuals for CLIVET WSAN-XIN MF 45.2

Summary of Contents for CLIVET WSAN-XIN MF 45.2

  • Page 1 Installation and operating manual WSAN-XIN MF 18.2 - 45.2 Multifunction heat pump with hot/chilled simuoltaneous water production for outdoor installation M0M440M15-02 10-05-18...
  • Page 2 Yours faithfully. CLIVET Spa The data contained in this manual is not binding and may be changed by the manufacturer without prior notice. Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia...

  • Page 3: Table Of Contents

    Index of contents General description Reception Positioning Water connections Electrical connections Start-up Control Maintenance Accessories Decommissioning Residual risks Technical information Dimensional drawings M0M440M15-02 WSAN-XIN MF 18.2-45.2...

  • Page 4: General Description

    Contact a certified service agent. Use original spares parts only. Using the unit in case of breakdown or malfunction: • voids the warranty • it may compromise the safety of the unit • may increase time and repair costs WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 5 Must be quoted when ordering spare parts. 1.14 Assistance request Note data from the serial number label and write them in the chart on side, so you will find them easily when needed. Series Size Serial number Year of manufacture Electrical wiringdiagram M0M440M15-02 WSAN-XIN MF 18.2-45.2...

  • Page 6: Reception

    Align the barycenter to the lifting point Use all the lifting brackets (see the dimensional section) Gradually bring the lifting belts under tension, making sure they are positioned correctly. 10. Before starting the handling, make sure that the unit is stable. WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 7 Keep packing material out of children’s reach it may be dangerous. Recycle and dispose of the packaging material in conformity with local regulations. Supports for handling: remove after the handling. Remove the coil protective mesh before the start-up M0M440M15-02 WSAN-XIN MF 18.2-45.2...

  • Page 8: Positioning

    HIGH PRESSURE (in summer) or LOW PRESSURE (in winter) 3.3 Saftey valve gas side The installer is responsible for evaluating the opportunity of installing drain tubes, in conformity with the local regulations in force (EN 378). WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 9 When a heat pump is running it produces a considerable amount of water due to the defrosting cycles of the external coil. The condensate must be disposed in order to avoid damages to people and things. M0M440M15-02 WSAN-XIN MF 18.2-45.2...

  • Page 10: Water Connections

    For details see: Technical Bulletin, “Considerations on the installation” section 4.5 Minimum system water content Minimum system water volumes are described within ‘General technical data’ section and they have to be satisfied to avoid continuous compressor switching on and off. WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 11 Electrically connect the flow switch at the inlet arranged on the XC terminal block. The flow switch must be set to the minimum reachable flow rate. A > 5 x Ø Ø B < A A. minimum distance M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 12 Leave various point of service free (wells, vent-holes etc). Neglecting the washing will lead to several filter cleaning interventions and at worst cases can cause damages to the exchangers and the other parts. 4.11 hydronic assembly For details see: 9 Accessories p. 45 WSAN-XIN MF 18.2-45.2 M0M440M15-02...

  • Page 13: Electrical Connections

    The cable must not touch the compressor and the refrigerant piping (they reach high temparatures). For details see: 9.5 Main isolator switch p. 48 5.5 Remote ON-OFF Do not perform short On Off cycles Do not use the remote On Off with thermoregulation function. Y E S N O ! M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 14 5.6 Connections performer by customer WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 15 12. write and run the command Ping 192.168.1.42 13. the message, connection is OK, will appear when successful 14. enter the browser (Crhome, Firefox ecc) 15. write and run the command http:/192.168.1.42 16. Userid = WEB 17. Password = SBTAdmin! M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 16 KNX bus, max 350 mt twisted pair with shield, ø 0,8 mm EIB/KNX cable marking recommende PSX - Mains power supply unit pwer supply unit N125/11 5WG1 125-1AB11 AC 120...230V, 50...60Hz KNX bus, max 350 mt WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 17 • The cable must have insulation features and non-flame propagation in accordance with applicable regulations. • The RS485 serial line must be kept as far away as possible from sources of electromagnetic interference. M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 18 AP1 module LED BUS communication with BACnet green communication ok green ready for communication yellow software ok but communication with AP1 yellow startup down flashing: software error BACnet server down fixed: hardware error restart after 3 sec WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 19 10. measure return and supply water temperature 11. measure super-heating and sub-cooling 12. check no anomalous vibrations are present 13. climatic curve personalization 14. climatic curve personalization 15. scheduling personalization 16. complete and available unit documentation M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 20 Check that the remote controls (ON-OFF etc) are connected and, if necessary, enabled with the respective parameters as indicated in the “electrical connections” section. Check that probes and optional components are connected and enabled with the respective parameters (“electrical connections” section and following pages). WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 21 Select Demand limit Demand limit Confirm Press 3 sec. Select Local connections Path: Main Menu / Unit parameters / Demand limit Parameters Short description Description P0200 setpointdemandlimit Parameter setting of the value % of demand limit M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 22 HSptHigh setpoint temperature value when the air temperature value is AirAtSptHigH P0613 AirAtSptHigH external air temperature value where the calculated setpoint takes on the value given by HSptHigh P0606 / P0609: Coooling P0610 / P0613: Heating WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 23 Value of the WR control signal corresponding to the correction of the set Heating equal to P0615 P0620 SWRMinH Value of the WR control signal corresponding to the correction of the set Heating equal to 0 P0616 / P0618: Cooling P0615, P0619, P0620: Heating M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 24 There must be suitable arresters to protect the serial lines from the effects of atmospheric discharges • The data line must be kept separate from the power conductors or powered at different voltage values and away from possible sources of electrical interference WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 25 Temperature Offset the master sum or subtract, depending on the way you set, in order of priority, to the set point of P0657 LNOffset the slave P0658 TypeRegMS Operation mode: 0=mode A; 1=mode B; 2=mode C P0659 LNAddress ProcessBus address unit M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 26 The above-described operating conditions must be considered outside the operating limits. In the event of compressor breakdown, due to operating in the above-mentioned conditions, the guarantee will not be valid and Clivet spa declines any responsibility.
  • Page 27 6.19 Configuration for 2-pipe system M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 28 6.20 Configuration for 4-pipe system WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 29 1 = 1 compr. On circuit 2 = 0 compr. On Heating capacity 7.3 Keys Symbol Name Description Info Main menu Alarm Alarm display Exit Cancel Previous level Keyboard settings Increases value Down Decreases value Confirm Enter Password M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 30 2° Setpoint Cool Enable by remote switch P0855 SetPointECOCooling Economic summer SetPoint P0577 SetPointHeating Setpoint Heat P0578 2SetPointHeating 2° Setpoint Heat P0579 SetPointECOHeating Economic winter SetPoint P0640 SetPointRecover Recovery Set Point P0580 ACSSetPoint domestic hot water set point WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 31 Option config P0052=1 Press 3 sec. Select Local connections * Unit Parameters menu is displayed 7.8 Display the status Step Display Action Menu/Variable Keys Notes Press Main menu Select Machine State Select General, circuit, ecc.. Exit M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 32 Compressor 3.1 Hours EEV PID 1 controller status EEV PID 2 controller status EEV PID 3 controller status Source EEV 1 Source EEV 2 User-side EEV Bitmap Alarms 1.1 Bitmap Alarms 2.1 Bitmap Alarms 3.1 Bitmap Alarms 4.1 WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 33 Source System Load 1180 High Pressure 1.1 1181 Compressor 1.1 Protection 1182 Compressor 2.1 Protection 1184 Source Fan 1.1 Protection 2180 High Pressure 1.2 2181 Compressor 1.2 Protection 2183 Compressor 2.2 Protection 2184 Source Fan 1.2 Protection M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 34 Source Pump 2.1 Command 2303 Compressor 1.2 Command 2304 Compressor 2.2 Command 2305 Liquid Injection 1.2 2306 Liquid Injection 2.2 2307 RecValve Battery 1.2 2308 RecValve Chiller 1.2 2309 RecValve Recovery 1.2 2310 Reversing Cycle Valve 1.2 WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 35 Alarm Alarm list detail Press 3 sec. Password Enter password Alarm list detail Press Alarm list Select Alarm Reset Select Executed Press 3 sec. Password management Select Log off For details see: General list of alarms M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 36 Recovery Inverter Protection Recovery side inverter overload protection Recovery ee0100 TimeOutModPOL98U POL98U module disconnected HW TimeOut ee0101 TimeOutModPOL98U_2 POL98U module disconnected HW TimeOut ee0102 TimeOutModPOL96U POL96U module disconnected HW TimeOut ee0103 TimeOutModPOL945 POL945 module disconnected HW TimeOut WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 37 Compressor 3 envelope alarm Circuit 1 ee1055 Alarm Inverter 1 Inverter 1 in alarm Inverter DFS ee1056 Alarm missing comunication inv1 Inverter 1 Modbus communication error Inverter DFS ee1057 Timeout comunication inv1 Inverter 1 communication timeout Inverter DFS M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 38 Inverter 1 communication timeout Inverter APY ee2040 Alarm Inverter 2 Inverter 2 in alarm Inverter APY ee2041 Alarm missing comunication inv2 Inverter 2 Modbus communication error Inverter APY ee2042 Timeout comunication inv2 Inverter 2 communication timeout Inverter APY WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 39 Vacuum Circuit Vaacum Alarm Circuit 1 FF1046 LimLp Low pressure limit Circuit 1 ff1047 DFRForced Defrost Forced Circuit 1 ff1048 DFRWaterTLow Low water temperature for defrost operation Circuit 1 ff1049 DFRTimeMax Defrost Maximum Time Circuit 1 M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 40 Sorgente 1 iI2017 Source Low Pressure Plant Source low water pressure Sorgente 2 iI2020 Source Low H2O Flow Source side low water flow Sorgente 2 II2021 Source H2O Freeze Alarm Source side water frost protection Sorgente 2 WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 41 * Refer to the local regulations; and ensure correct adherance. Companies and technicians that effect interventions of installation, maintenance/re- pairs, leak control and recovery must be CERTIFIED as expected by the local regulations. The leak control must be effected with annual renewal. M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 42 Verify that the aluminum fins are not bent or damaged, in the event of damages contact the authorized assistance center and get the fins straightened in order to restore the initial condition for an optimal air flow. WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 43 8.11 Compressor supply line shut-off valve Do not remove the seal Remove only if authorized by the manufacturer. Please contact the maker for informations. 8.12 crankcase heather Check: • closure • Operation M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 44 It’s recommended that the re-start after the stopping period is performed by a qualified technician, especially after seasonal stops or seasonal switching. When restarting, refer to what is indicated in the “start-up” section. Schedule technical assistance in advance to avoid hitches and to guarantee that the system can be used when required. WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 45 Accessories 9.1 Anti-vibration mount support Code Size BB200 - 60 Sh BB200 - 60 Sh BB200 - 45 Sh BB200 - 45 Sh PE182701 18.2-30.2 BEIGE BEIGE M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 46 2 x C22410043 3 - 6 2 x C22410044 PEM100004 25.2-30.2 1 - 2 2 x C22410045 4 - 5 2 x C22410062 3 - 6 2 x C22410047 PEM100015 35.2-40.2-45.2 1 - 6 6 x C22410092 WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 47 VNR = Non return valves SPA1 = Differential pressure switch user water side PU = Pump user side (VARYFLOW +) VSU = Water safety valve R19 = Hydronic assembly heaters SPA2 = System water pressure switch user side M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 48 SPA7 = Water differential pressure switch BT8 = Water inlet temperature probes YWR = DHW switching valve PRI = Hydronic assembly 1 inverter pump VSU = Water safety valve SPA8 = Circuit charging pressure switch 9.5 Main isolator switch WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 49 The user must not dispose of the unit at the end of its life cycle as urban waste, it must instead be handed over to appropriate collection centres as set forth by current standards or as instructed by the distributor. M0M440M15-02 WSAN-XIN MF 18.2-45.2...
  • Page 50 Do not remain in the vicinity of the safety valve and never leave the refriger- ating system taps closed. WSAN-XIN MF 18.2-45.2 M0M440M15-02...
  • Page 51 Configuration for 4-pipe system General technical data - Performance Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Cooling 100% - Heating 0% Cooling capacity 49,8 59,6 69,7 82,5 92,8 Compressor power input 14,5 18,1 20,5 25,6 30,4 35,0 42,2 Total power input 16,7 20,3 23,4...
  • Page 52 Configuration for 4-pipe system General technical data - Construction Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Compressor Type of compressors SCROLL INVERTER + SCROLL ON/OFF Refrigerant R-410A No. of compressors Oil charge (C1) Oil charge (C2) Refrigeration circuits Refrigerant charge (C1) 11,0 11,0 11,0...
  • Page 53 Configuration for 4-pipe system Sound levels Standard unit Sound levels refer to units with full load under nominal test conditions. The sound pressure level refers to a distance of 1 meter from the outer surface of the unit operating in open Sound power level (dB) Sound Sound...
  • Page 54 2. Standard unit operating range with air flow automatic modulation 3. Unit operating range with automatic staging of the compressor capacity not compatible with Clivet integrated pumping unit (HYG1 - HYG2 - VARYP - HYGR1V) Operating range - Cooling 100% - Heating 100% Twu [°C] = Water outlet temperature from the user side of the heat exchanger (2-4 pipes)
  • Page 55 Configuration for 2-pipe system General technical data - Performance Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Cooling 100% - Heating 0% Cooling capacity 49,8 59,6 69,7 82,5 92,8 Compressor power input 14,5 18,1 20,5 25,6 30,4 35,0 42,2 Total power input 16,7 20,3 23,4...
  • Page 56 Configuration for 2-pipe system General technical data - Construction Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Compressor Type of compressors SCROLL INVERTER + SCROLL ON/OFF Refrigerant R-410A No. of compressors Oil charge (C1) Oil charge (C2) Refrigeration circuits Refrigerant charge (C1) 11,0 11,0 11,0...
  • Page 57 Configuration for 2-pipe system Sound levels Standard unit Sound levels refer to units with full load under nominal test conditions. The sound pressure level refers to a distance of 1 meter from the outer surface of the unit operating in open Sound power level (dB) Sound Sound...
  • Page 58 3. Unit operating range with automatic staging of the compressor capacity not compatible 3. Unit operating range with automatic staging of the compressor capacity not compatible with Clivet integrated pumping unit (HYG1 - HYG2 - VARYP - HYGR1V) with Clivet integrated pumping unit (HYG1 - HYG2 - VARYP - HYGR1V) Operating range - Cooling 100% - Heating 100% Twu [°C] = Water outlet temperature from the user side of the heat exchanger (2-4 pipes)
  • Page 59 Admissible water flow-rates Minimum (Qmin) and maximum (Qmax) admissible water flow for the unit to operate correctly. User side exchanger (2/4 - pipes) Size 18.2 20.2 25.2 30.2 35.2 40.2 45.2 Qmin [l/s] Qmax [l/s] 11,5 11,5 13,6 Recovery exchanger (2/4 - pipes) Size 18.2 20.2...
  • Page 60 Dimensional drawings DAAM418 2_20 2_0 REV00 Size 18.2 -20.2 22/10/2015 Return for the user side Ø 2” Victaulic Compressor compartment Supply to the user side Ø 2” Victaulic Power input Return for the recovery side Ø 2” Victaulic Lifting brackets (removable) Supply to the recovery side Ø...
  • Page 61 Dimensional drawings DAAM425 2_30 2_0 REV00 Size 25.2 -30.2 22/10/2015 Return for the user side Ø 2”1/2 Victaulic Compressor compartment Supply to the user side Ø 2” 1/2 Victaulic Power input Return for the recovery side Ø 2”1/2 Victaulic Lifting brackets (removable) Supply to the recovery side Ø...
  • Page 62 Dimensional drawings DABM435.2_40 2_45.2_0 REV00 Size 35.2 - 40.2 - 45.2 14/09/2015 Return for the user side Ø 2” 1/2 Victaulic Compressor compartment Supply to the user side Ø 2” 1/2 Victaulic Power input Return for the recovery side Ø 2” 1/2 Victaulic Lifting brackets (removable) Supply to the recovery side Ø...
  • Page 63 Page intentionally left blank...
  • Page 64 CLIVET GmbH (Hydronic and Applied Division) Hummelsbütteler Steindamm 84, 22851 Norderstedt - Germany Tel. + 49 (0) 40 32 59 57-0 - Fax + 49 (0) 40 32 59 57-194 - info.de@clivet.com CLIVET GmbH (VRF, Residential and Lightcom Division) Eisenstrasse 9c, 65428 Rüsselsheim/Frankfurt - Germany Tel.
