Quick Start Guide

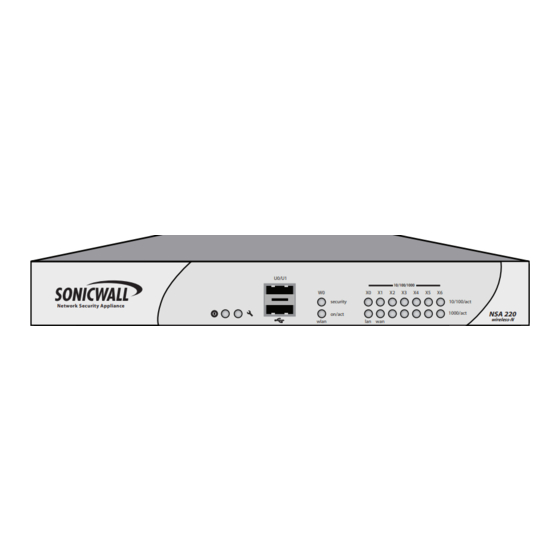

SonicWALL NSA Series Appliances
1
Check Package Contents
Verify that your package includes the following
contents:
220 220W
SonicWALL NSA or NSA
Appliance
Ethernet Cable
Standard Power Adaptor and Cord
DB9 -> RJ45 (CLI) Cable
*
Wireless Antennas (3) included with NSA
Power cords are included with units in North
America only.
C
M
Y
CM
MY
CY
CMY 3
Connect the SonicWALL NSA Appliance
K
Connect the SonicWALL NSA 220 series
appliance to the network using standard
Ethernet cables as shown in the illustration.
Internet router
or modem
lan wan
Connect the included power cable and adaptor,
and plug into an appropriate outlet.
lan
U0/U1
Series
Network Security Appliance
220W only
The NSA 220 series appliance powers on and
the orange "test" LED blinks during the boot
sequence. Continue to Step 4 when the "test"
LED is no longer lit.
Internet
Service
This process may take up to 2 minutes.
Provider
Network Security Appliance
2 min
Network Security Appliance
120V AC
(U.S.)
2
Register
Registration MUST be completed prior to
10/100/1000 connecting to the appliance.
W0 X0 X1 X2 X3 X4 X5 X6
security 10/100/act
on/act 1000/act NSA 220
wireless-N
wlan lan wan
In a Web browser, navigate to
http://www.mysonicwall.com/.
If you do not have a MySonicWALL account,
click the Not a Registered User? link to
create an account.
Under the Quick Register section of your
*
MySonicWALL account, enter the Activation
Key or Serial Number of the SonicWALL NSA
series appliance you are registering.
Con rm your serial number, enter a friendly
name for your appliance, and enter your
authentication code in the Quick Register >
Add New Product section.
Click Register.
4
Configure the Management Host &
Setup Wizard
With your computer connected to the X0 port
on the SonicWALL appliance, con gure your
IP with an address on the 192.168.168.0/24,
such as 192.168.168.20.
Using the computer connected to the LAN
port of the SonicWALL NSA 220 series
appliance, navigate to http://192.168.168.168/
in a Web browser.
The Setup Wizard takes you through several
basic steps to get your SonicWALL NSA series
U0/U1
10/100/1000
appliance con gured for your network.
W0 X0 X1 X2 X3 X4 X5 X6
security 10/100/act
on/act 1000/act NSA 220
wlan lan wan wireless-N
After the Setup Wizard, the appliance may
reboot. Please wait a few minutes while the
appliance reboots to save the updated settings.
U0/U1
10/100/1000
W0 X0 X1 X2 X3 X4 X5 X6
security 10/100/act
on/act 1000/act NSA 220
wlan lan wan wireless-N
