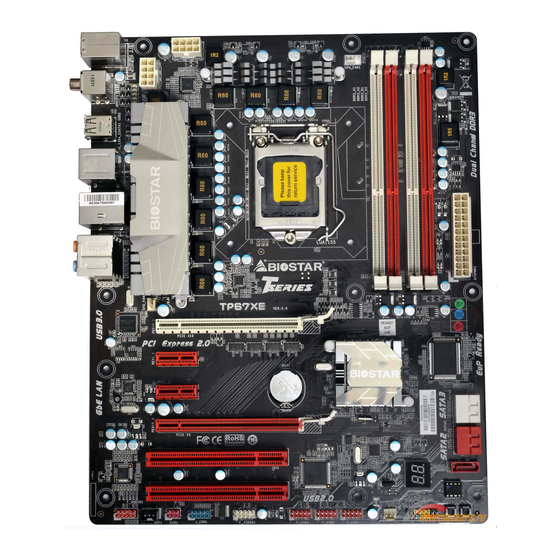

TP67XE UEFI BIOS Manual
UEFI BIOS Setup.......................................................................................1
1 Main Menu...............................................................................................3
2 Advanced Menu.......................................................................................4
3 PCIPnP Menu........................................................................................16
4 Boot Menu..............................................................................................19
5 Chipset Menu.........................................................................................22
6 O.N.E Menu...........................................................................................23
7 Exit Menu...............................................................................................29
i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Biostar TP67XE - BIOS
Summary of Contents for Biostar TP67XE - BIOS
- Page 1 TP67XE UEFI BIOS Manual UEFI BIOS Setup..................1 1 Main Menu....................3 2 Advanced Menu..................4 3 PCIPnP Menu..................16 4 Boot Menu....................19 5 Chipset Menu..................22 6 O.N.E Menu...................23 7 Exit Menu....................29...
-
Page 2: Uefi Bios Setup
TP67XE UEFI BIOS Manual UEFI BIOS Setup Introduction T he purpose of this manual is to describe the s ettings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. UEFI BIOS determines what a computer can do without accessing programs from a disk. -
Page 3: Using Setup
TP67XE UEFI BIOS Manual Supported CP Us T his AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility. In the UEFI BIOS setup utility, you will see General Help description at the top right corner, and this is providing a brief description... - Page 4 TP67XE UEFI BIOS Manual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system inform ation. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save &...
-
Page 5: Advanced Menu
TP67XE UEFI BIOS Manual 2 Advanced Menu T he Advanced Menu allows you to configu re the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. - Page 6 TP67XE UEFI BIOS Manual PCI ROM Priority In case o f multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer T his item sets the value to be programmed into PCI Latency Timer Register. Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks / 128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224...
-
Page 7: Wake System W Ith Fixed Time
TP67XE UEFI BIOS Manual ACPI Settings/WakeUp Event control BIOS SETUP UTILITY Advanced When EuP Enabled,System meets EuP Control [Disabled] EuP requirement. ACPI Sleep State [S3 (Suspend to RAM)] PME Wake up from S5 [Disabled] Wake system with Fixed Time [Disabled] Wake up date [EveryDay] Wake up hour... - Page 8 TP67XE UEFI BIOS Manual Wake up date You can choose which date the system will boot up. Wake up hour / Wake up minute / Wake up second You can choose the system boot up time, input hour, minute and second to specify. Ring-In Wake up from S5 T his item enables the system to wake from S5 using Ring-In event.
-
Page 9: Cpu Configuration
TP67XE UEFI BIOS Manual CPU Configuration BIOS SETUP UTILITY Advanced CPU Configuration Number of cores to enable in each processor package. EMT64 Processor Speed Processor Stepping Microcode Revision Processor Cores Intel HT Technology Active Processor Cores [All] Limit CPUID Maximum [Disabled] Select Screen Execute-Disable Bit... - Page 10 TP67XE UEFI BIOS Manual Hardware Prefetcher T he processor has a hardw are prefetch er that automatically analy zes its requirements and prefetches dat a and instructions from the memory into the Level 2 cache that are likely to be required in the near future. T his reduces the latency associated with memory reads.
-
Page 11: Sata Configuration
TP67XE UEFI BIOS Manual SATA Configuration BIOS SETUP UTILITY Advanced (1) IDE Mode. (2) AHCI Mode. SATA Configuration (3) RAID Mode. SATA Mode [IDE Mode] Serial-ATA Controller 0 [Compatible] Serial-ATA Controller 1 [Enhanced] SATA Port1: SATA Port2: SATA Port3: Select Screen SATA Port4: Select Item Select... -
Page 12: Usb Configuration
TP67XE UEFI BIOS Manual Spin Up Device If this item is enabled for any of ports, Staggered Spin Up will be performed, and only the drives that have this option enabled will spin up at boot. Otherwise, all drives spin up at boot. Options: Disabled (Default) / Enabled Hot Plug... -
Page 13: Smart Fan Control
TP67XE UEFI BIOS Manual Port 60/64 Emulation T his item enables I/O port 60h/64h emulation support. T his should be enabled for the complete USB keyboard legacy support f o r non-USB aware OSes. Options: Enabled (Default) / Disabled SMART FAN Control BIOS SETUP UTILITY Advanced CPU FAN Smart control... -
Page 14: Super Io Configuration
TP67XE UEFI BIOS Manual Fan Ctrl On(℃ ) When CPU temperature is higher than this value, the CPU fan controller will turn on. 20 (℃) (Default) Options: Fan Ctrl Start Value T his item sets CPU FAN Start Speed Value. Options: 50 (Default) Fan Ctrl Sensitive... -
Page 15: Serial Port 0 Configuration
TP67XE UEFI BIOS Manual Serial Port 0 Configuration BIOS SETUP UTILITY Advanced Enable or Disable Serial Port Serial Port 0 Configuration (COM) Serial Port [Enabled] Device Settings Change Settings [Auto] Select Screen Select Item Select Enter Change Opt. General Help Optimized Defaults Save &... - Page 16 TP67XE UEFI BIOS Manual Change Settings T his item selects an optimal setting for Super IO device. Options: Auto (Default) H/W Monitor BIOS SETUP UTILITY Advanced ShutDown Temperature PC Health Status ShutDown Temperature [Disabled] CPU temperature System temperature CPU Fan Speed SYS FAN1 Speed SYS FAN2 Speed CPU Vcore...
-
Page 17: Chipset Menu
TP67XE UEFI BIOS Manual 3 Chipset Menu T his section describes con figuring the PCI bus system. PCI, or Personal Computer Interconn ect, is a system which allows I/O devices to operate at speeds nearing the speed o f the CPU itself uses when communicating with its own special components. Notice Beware o f that setting inappropriate values in items of this menu may cause system to malfunction. -
Page 18: South Bridge Configuration
TP67XE UEFI BIOS Manual VT-d T his item enables/disables VT -d function. Options: Disabled (Default) / Enabled PCI Express Port T his item allows user to control PCI Express x16 Port. Options: Auto (Default) / Disabled / Enabled PEG Force GEN1 Some non-graphics PCI-E devices may not follow PCI-E Speci f ication and may incorrectly report their Gen cap ability or link width. - Page 19 TP67XE UEFI BIOS Manual Azalia HD Audio T his item enables/disables Azalia HD Audio. Options: Enabled (Default) / Disabled High Precision Timer T his item enables/disables the High Precision Event T imer. Options: Enabled (Default) / Disabled All USB 1.0/2.0 Devices T his item enables/disables All USB 1.0/2.0 Devices.
- Page 20 TP67XE UEFI BIOS Manual Launch PXE OpROM T his item enables/disables Boot Option for Legacy Network D evices. Options: Disabled (Default) / Enabled Launch Storage OpROM T his item enables/disables Boot Option for Legacy Mass Storage Devices with Option ROM. Options: Enabled (Default) / Disabled Onboard PCIE Giga LAN...
- Page 21 TP67XE UEFI BIOS Manual 4 Boot Menu T his menu allows you to setup the system boot options. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Number of seconds to wait for Boot Configuration setup activation key. Setup Prompt Timeout Bootup NumLock State [On]...
-
Page 22: Interrupt 19 Capture
TP67XE UEFI BIOS Manual Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When set to Enabled, this item allows the option ROMs to trap interrupt 19. Options: Disabled (Default) / Enabled Boot Option #1/#2/#3 T he 3 items specify the boot devi ce prio rity sequence from the availabl e devices. -
Page 23: Security Menu
TP67XE UEFI BIOS Manual 5 Security Menu BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Set Setup Administrator Password Description Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. -
Page 24: Start Page
TP67XE UEFI BIOS Manual 6 O.N.E Menu T his submenu allows you to change voltage and clock of various devices. (Howev er, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.) Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. - Page 25 TP67XE UEFI BIOS Manual CPU Base Clock (1/100 MHz) T his item sets CPU Base Clock. Options: 10000 (Default) CPU Core Current Max (Amp) T his item sets the Max instantaneous current allowed at any given time. Options: 150 (Default) Power Limit 1 Value (Watt) T his item sets the power limit value which CPU must not exceed over a specific time.
- Page 26 TP67XE UEFI BIOS Manual CPU C1 E C1E is “Enhanced Halt State” function, this f unction helps to save power and decrease heat by lowering CPU frequen cy while the processor is not working. Options: Enabled (Default) / Disabled DDR3 DRAM M ultiplier T his item allows you to set DDR3 DRAM Multiplier.
- Page 27 TP67XE UEFI BIOS Manual Write Recovery Time (tWR) T his item allows you to select Internal Write to Read Command Delay of DDR3. Options: 8 (Default) / 3 ~ 31 Row Refresh Cycle Time (tRFC) T his item allows you to select Minimum Refresh Recovery T ime of DDR3. Options: 59 (Default) / 15 ~ 255 Write to Read Delay (tWTR)
- Page 28 TP67XE UEFI BIOS Manual CPU Request Vcore T his item sets CPU Request Vcore. Phase Control T his item sets PWM Phase Control method. Options: CPU Power State (Default) / Full On PWM Work Frequency T his item sets PWM Work Frequency. Options: Auto (Default) / 200 KHz / 185 KHz / 165 KHz / 145 KHz PWM I-OUT Override...
-
Page 29: Pch Voltage
TP67XE UEFI BIOS Manual PCH Voltage T his item sets PCH Voltage. Vcc IO T his item sets CPU High frequency I/O logic power supply. DDR3 Slot 1/2/3/4 Information T hese items display SPD information of DDR3 memory. BIOS SETUP UTILITY O.N.E DDR3 Module Information Memory Type... -
Page 30: Discard Changes And Exit
TP67XE UEFI BIOS Manual 7 Exit Menu T his menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Exit system setup without Discard Changes and Exit saving any changes.
