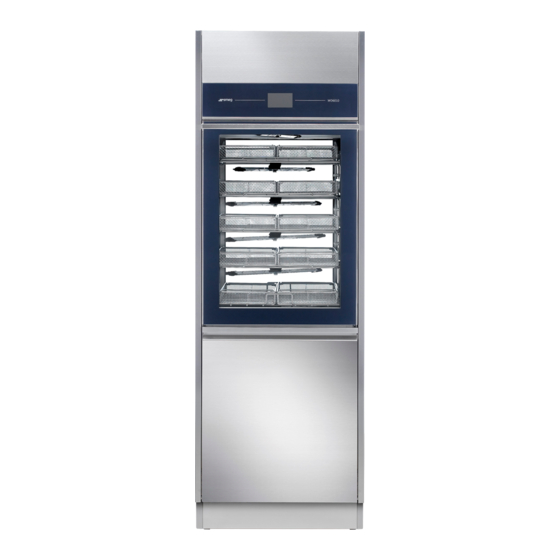

WD6010 – GW6010
PACKAGE REMOVAL, PREPARATION FOR MOVEMENT (REFER TO THE INSTRUCTION MANUAL FOR COMPLETENESS)
Models
Max machine net weight (without packaging material)
Max gross weight
Storage Temperature range
The base of the appliance is secured to a pallet, which is used for lifting and transporting it. When moving the
appliance around, a forklift truck must be used. Images used: illustrative purposes only.
PACKAGE REMOVAL AND PREPARATION FOR MOVEMENT
Procedure to follow to remove the package, referring to the following images:
A.1 – Remove the package.
A.2 – Check that all lower panels are not installed.
A.3 – Open the lower metallic panels (both the loading side and the unloading side) to have access to the fixing
screws. The fixing screws to the pallet, both on the loading side ("unclean side") that on the unloading side ("clean
side"), must be unscrewed in order to remove the machine from the pallet.
A.4 - Lateral machine unload: insert the forks of the forklift truck from the side, paying attention to remain under the
lateral plate (forks width about 430mm). place the machine on the floor;
A.5 - The machine is now standing on the wheels and can be positioned (short paths).
A.6 - Once the machine has been placed, screw or unscrew the feet in order to adjust its position and level it.
A.1
A.3
19510091207
WD7010 – GW7010
A.2
x 2
A.4
Smeg S.p.A. - Instruments Division -
WD7015 – GW7015
WD6010, GW6010,
WD7010, GW7010
300 kg
340 kg
5°C – 40°C
instruments@smeg.it
WD7015,
GW7015
400 kg
450 kg
