Tyco TY2231 Manual

Series TY-FRB – 2.8, 4.2, 5.6, and 8.0 K-Factor
Upright, Pendent, and Recessed Pendent Sprinklers
Quick Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp171
General
Description

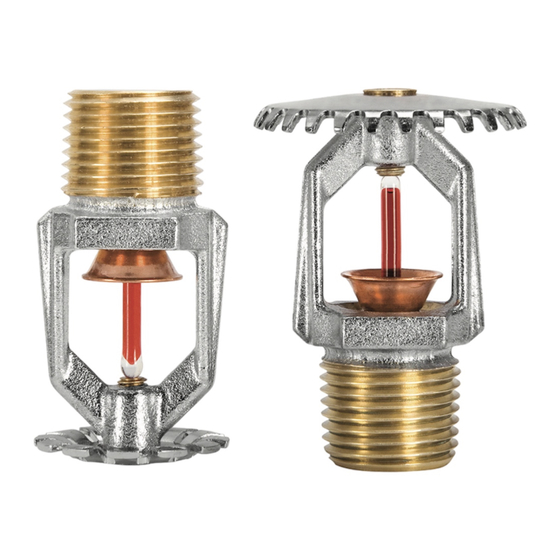

The TYCO Series TY-FRB 2.8, 4.2, 5.6,
and 8.0 K-factor Upright, Pendent,
and Recessed Pendent Sprinklers
described in herein are quick response,
standard coverage, decorative 3 mm
glass bulb-type spray sprinklers. They
are designed for use in light or ordinary
hazard, commercial occupancies such
as banks, hotels, and shopping malls.
The sprinkler, where applicable, is
intended for use in areas with a finished
Page 1 of 12
ceiling. This recessed pendent sprin-
kler uses one of the following recessed
escutcheons:
• Two-piece Style 10 (1/2 in. NPT)
or Style 40 (3/4 in. NPT) Recessed
Escutcheon with 1/2 in. (12,7 mm) of
recessed adjustment or up to 3/4 in.
(19,1 mm) of total adjustment from
the flush pendent position.
• Two-piece Style 20 (1/2 in. NPT)
or Style 30 (3/4 in. NPT) Recessed
Escutcheon with 1/4 in. (6,4 mm) of
recessed adjustment or up to 1/2 in.
(12,7 mm) of total adjustment from
the flush pendent position.
The adjustment provided by the
recessed escutcheon reduces the
accuracy to which the fixed pipe drops
to the sprinklers must be cut.
Corrosion-resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
what would be obtained when exposed
to corrosive atmospheres. Although
corrosion-resistant coated sprinklers
have passed the standard corrosion
tests of the applicable approval agen-
cies, the testing is not representative
of all possible corrosive atmospheres.
Consequently, it is recommended that
the end user be consulted with respect
to the suitability of these coatings for
any given corrosive environment. The
effects of ambient temperature, con-
centration of chemicals, and gas/
chemical velocity, should be consid-
ered, as a minimum, along with the cor-
rosive nature of the chemical to which
the sprinklers will be exposed.
An intermediate level version of the
Series TY-FRB Pendent Sprinklers
is detailed in technical data sheet
TFP356. Sprinkler guards are detailed
in technical data sheet TFP780.
NOTICE
The Series TY-FRB 2.8, 4.2, 5.6,
and 8.0 K-factor Upright, Pendent,
and Recessed Pendent Sprinklers
described herein must be installed
and maintained in compliance with
this document and with the applicable
standards of the National Fire Protec-
tion Association (NFPA), in addition to
DECEMBER 2022
Worldwide
www.tyco-fire.com
Contacts
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
NFPA 13 prohibits installation of 1/2 in.
NPT sprinklers with K-factors greater
than 5.6 in new construction. They are
intended for retrofit in existing sprinkler
systems only.
Sprinkler
Identification
Number (SIN)
TY1131 . . . Upright 2.8K, 1/2 in. NPT
TY1231 . . Pendent 2.8K, 1/2 in. NPT
TY2131 . . . Upright 4.2K, 1/2 in. NPT
TY2231 . . Pendent 4.2K, 1/2 in. NPT
TY3131 . . . Upright 5.6K, 1/2 in. NPT
TY3231 . . Pendent 5.6K, 1/2 in. NPT
TY4131 . . . Upright 8.0K, 3/4 in. NPT
TY4231 . . Pendent 8.0K, 3/4 in. NPT
TY4831 . . . Upright 8.0K, 1/2 in. NPT
TY4931 . . Pendent 8.0K, 1/2 in. NPT
TFP171
