Product End-of-Life Disassembly Instructions
Product Category: Desktops
Marketing Name / Model
[List multiple models if applicable.]

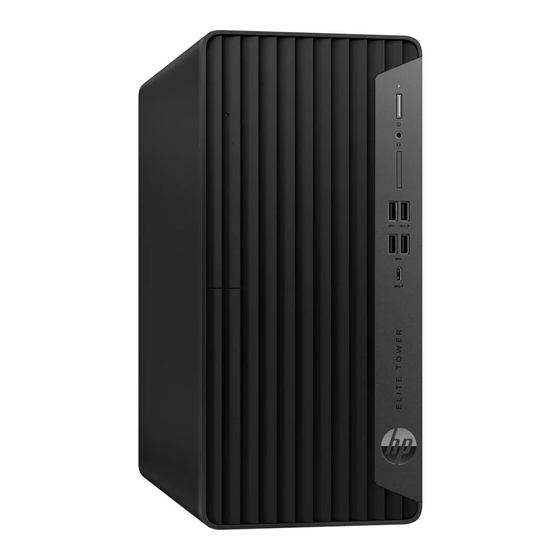

HP Elite Tower 600 G9 Desktop PC; HP Elite Tower 680 G9 Desktop PC; HP Elite Tower 800 G9 Desktop PC; HP Elite Tower 880 G9
Desktop PC; HP Z1 G9 Tower Desktop PC
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the
disassembly of HP Inc. products to remove components and materials requiring selective treatment, as defined by EU directive
2012/19/EC, Waste Electrical and Electronic Equipment (WEEE).
NOTE: Recyclers should sort plastic materials into resin streams for recycling based on the ISO 11469 plastic marking code on the
plastic part. For any questions on plastic marking or identification of location of parts or components requiring selective treatment,
please contact
HP's Sustainability
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment. An "X" in the list of components and parts indicates the product
contains the component or part requiring selective treatment
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA) with a surface greater than 10 sq cm
Batteries, excluding Li-Ion batteries. This includes
standard alkaline, coin or button style batteries
Li-Ion batteries. Includes all Li-Ion batteries if more
than one is provided with the product (such as a
detachable notebook keyboard battery, etc.)
Mercury-containing components. For example,
mercury in lamps, display backlights, scanner lamps,
switches, batteries
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm. Includes background illuminated
displays with gas discharge lamps
EL-MF877-00
Template Revision D
last updated May-2022
Contact.
Components and parts requiring selective treatments
☒ Main board (MB) PCB
☒ Solid state drive (SSD) PCB
☐ Wireless WAN module (WWAN) PCB
☐ Touch module PCB
☒ Power supply PCB
☒ External Keyboard (KB)
☒ External Mouse
☒ Others: HDD PCB, Memory PCB
☒ RTC/CMOS battery
☐ Others: _____________
Li-ion battery(ies) are attached to the product by:
☐ screws
☐ snaps
☐ adhesive
☐ other. Explain
☐ Panel LCD
HP Inc. instructions for this template are available at
EL-MF877-01
Quantity of
items
included in
product
8
1
0
0
0
Page 1
Advertisement
Related Manuals for HP Elite Tower 800 G9
Summarization of Contents
Items Requiring Selective Treatment
Printed Circuit Boards (PCB) or Printed Circuit Assemblies (PCA) with a surface greater than 10 sq cm
Identifies PCBs/PCAs over 10 sq cm requiring selective treatment.
Batteries, excluding Li-Ion batteries
Specifies non-Li-Ion batteries like alkaline or button cells for selective treatment.
Li-Ion batteries
Covers all Li-Ion batteries, including detachable ones, for selective treatment.
Mercury-containing components
Identifies components with mercury like lamps or switches for selective treatment.
Liquid Crystal Displays (LCD) with a surface greater than 100 sq cm
LCDs over 100 sq cm, especially with gas discharge lamps, need selective treatment.
Cathode Ray Tubes (CRT)
CRT components are listed for selective treatment.
Capacitors / condensers (Containing PCB/PCT)
Capacitors containing PCB/PCT require selective treatment.
Electrolytic Capacitors / Condensers measuring greater than 2.5 cm in diameter or height
Large electrolytic capacitors (over 2.5 cm) need selective treatment.
External electrical cables and cords
External electrical cables and cords require selective treatment.
Gas Discharge Lamps
Gas discharge lamps are listed for selective treatment.
Plastics containing Brominated Flame Retardants
Plastics with brominated flame retardants require selective treatment.
Components and parts containing toner and ink
Parts with toner or ink, like cartridges, require selective treatment.
Components and waste containing asbestos
Components containing asbestos must be treated selectively.
Components, parts and materials containing refractory ceramic fibers
Materials with refractory ceramic fibers require selective treatment.
Components, parts and materials containing radioactive substances
Items containing radioactive substances need selective treatment.
Components containing chlorofluorocarbons (CFC), hydrochlorofluorocarbons (HCFC) or hydrofluorocarbons (HFC), hydrocarbons (HC)
Components with CFCs, HCFCs, HFCs, or HC require selective treatment.
Tools Required for Disassembly
Hexagon Screw Driver
Specifies the use of a Hexagon Screw Driver for disassembly.
Crisscross Screw Driver
Specifies the use of a Crisscross Screw Driver for disassembly.
Soldering Iron
Indicates a Soldering Iron is required for certain component removal.
Product Disassembly Process
Disassembly Steps
Details the step-by-step procedure for removing components and the external enclosure.
Component Location Guidance
Provides information on locating selective treatment components within the main unit.
