Connection of a repeater

Main-unit
Repeater
INSTALLATION

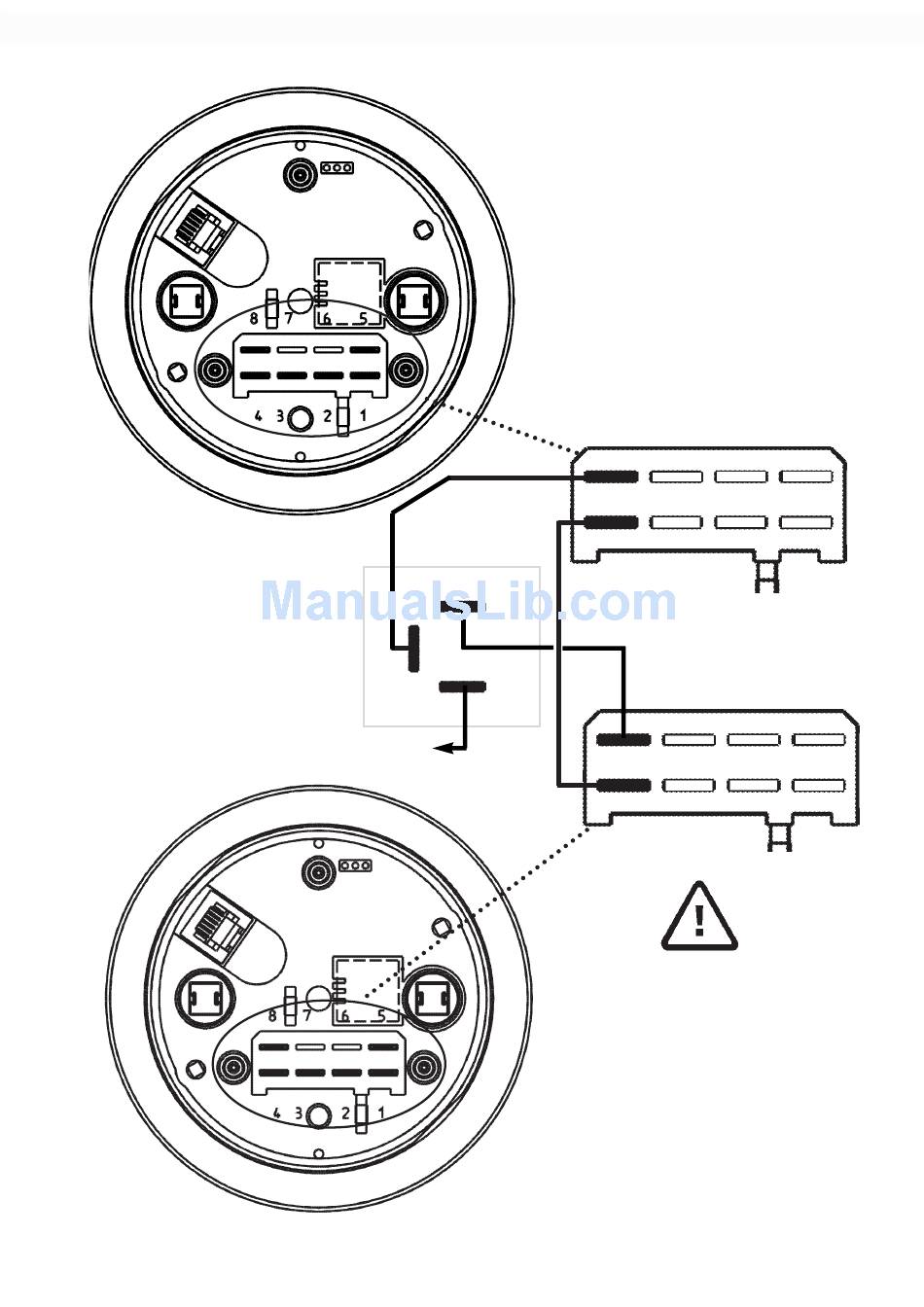

Make the power supply con-
nection for the repeater the
same as the main unit (see
page 44). The connection bet-
ween the main and the repea-
ter, including the alarm buzzer,
is shown in the diagram below.
-1
-
+
A B
S 1
Note that the unit, keel depth
and alarm must also be set
(see page 33) on the repeater.
8
4
8
4
45
