Draper 28815 User Manual

12v dcac inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

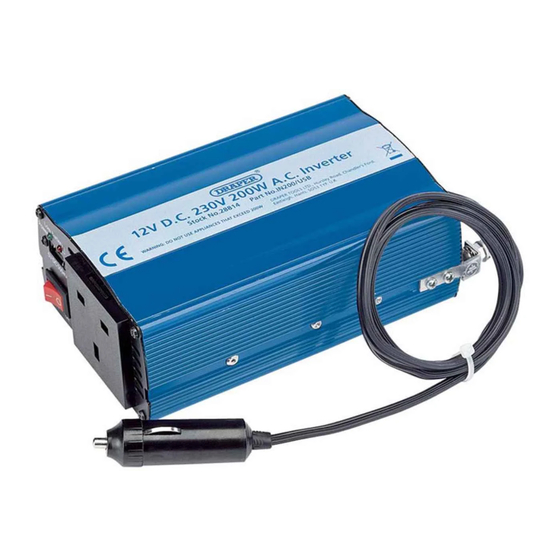

12V DC AC
INVERTER
28814, 28815
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of
the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28815 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 28815

Summary of Contents for Draper 28815

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy of continuous improvement determines the right to make modifications without prior warning.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISIONS ........................2 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT ......... 2 COPYRIGHT © NOTICE ....................2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    INTRODUCTION 4.1 SCOPE Stock No.28814 Part No.IN200/USB – Converts 12V DC to 230V AC using power via connection lead to car cigarette lighter plug. Stock No.28815 Part No.IN400/USB – Converts 12V DC to 230V AC using power via battery connection leads.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Additional Safety Instructions For 12V Dc Inverters

    HEALTH AND SAFETY INFORMATION f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 8: Connection To The Power Supply

    HEALTH AND SAFETY INFORMATION − Personal items of jewellery, such as rings, bracelets, necklaces and watches must be removed before attempting to work around the vehicle’s battery. Short circuited current can be powerful enough to weld metallic items to the vehicle and will cause severe burns and injuries. −...

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION Model 28815 pictured. (14) (10) (11) (12) Model 28814 IN200/USB only. (13) (15) (1) 230V AC Power outlet. (11) Black ring spade connector (negative). (2) On/Off switch. (12) 12V DC car accessory/cigarette lighter socket connector plug. (3) 5V DC USB Output.

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparation

    12V DC POWER INLET CONNECTIONS – FIGS. 1– 4 Note: Prior to any connection, ensure the ON/OFF switch is in the off position. Model 28814 IN200/USB (FIG.1) − Insert the 12V DC connector (12) into the (12) vehicle’s cigarette lighter socket, ensuring that it is fully plugged in.

  • Page 12: Grounding Connection

    PREPARATION GROUNDING CONNECTION – (14) FIG. 5 WARNING! Before using this equipment you must provide a ground connection to the inverter. On the casing of the inverter is an earthing terminal (14). This earthing terminal is connected to the case of the inverter and also to the earth terminal (14) of the AC output socket.

  • Page 13: Operation

    OPERATION 230V AC OUTPUT – FIG. 6 Most electrical tools, appliances and equipment have a rating label indicating the power consumption in amps or watts. Calculate the power consumption of these items you will be using simultaneously, keeping the rating under the inverter’s maximum capacity.

  • Page 14: Fuse Replacement

    − In the event of the fuse blowing, remove the 12V DC car cigarette lighter − 12V DC battery connector leads (12) (model 28814 IN200/USB only). − Pull out the blown fuse (16) and replace with a fuse of the same rating and design determining the cause of the fault prior to re-using.

  • Page 15: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Note: Remove the product from the power supply before carrying out adjustment, servicing or maintenance. Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The product must be correctly ventilated during tool operation.
  • Page 16 10. MAINTENANCE AND TROUBLESHOOTING 10.2 TROUBLESHOOTING GUIDE – continued Television interference ‘Snow’-like, picture − Locate the inverter as far appearance. Picture signal is as possible from the breaking up. television, the antenna and the antenna cables. − Adjust the orientation of the inverter antenna cables and the TV power cord to reduce...

  • Page 17: Disposal

    11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 18: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Read the instruction manual. Warning! Warning! Keep out of the reach of children. Risk of electric shock. Do not use this product in wet or 12V power. damp conditions. DC current. Mandatory action required. 230V power.
  • Page 19 NOTES – 19 –...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
