Summary of Contents for Draper 23245

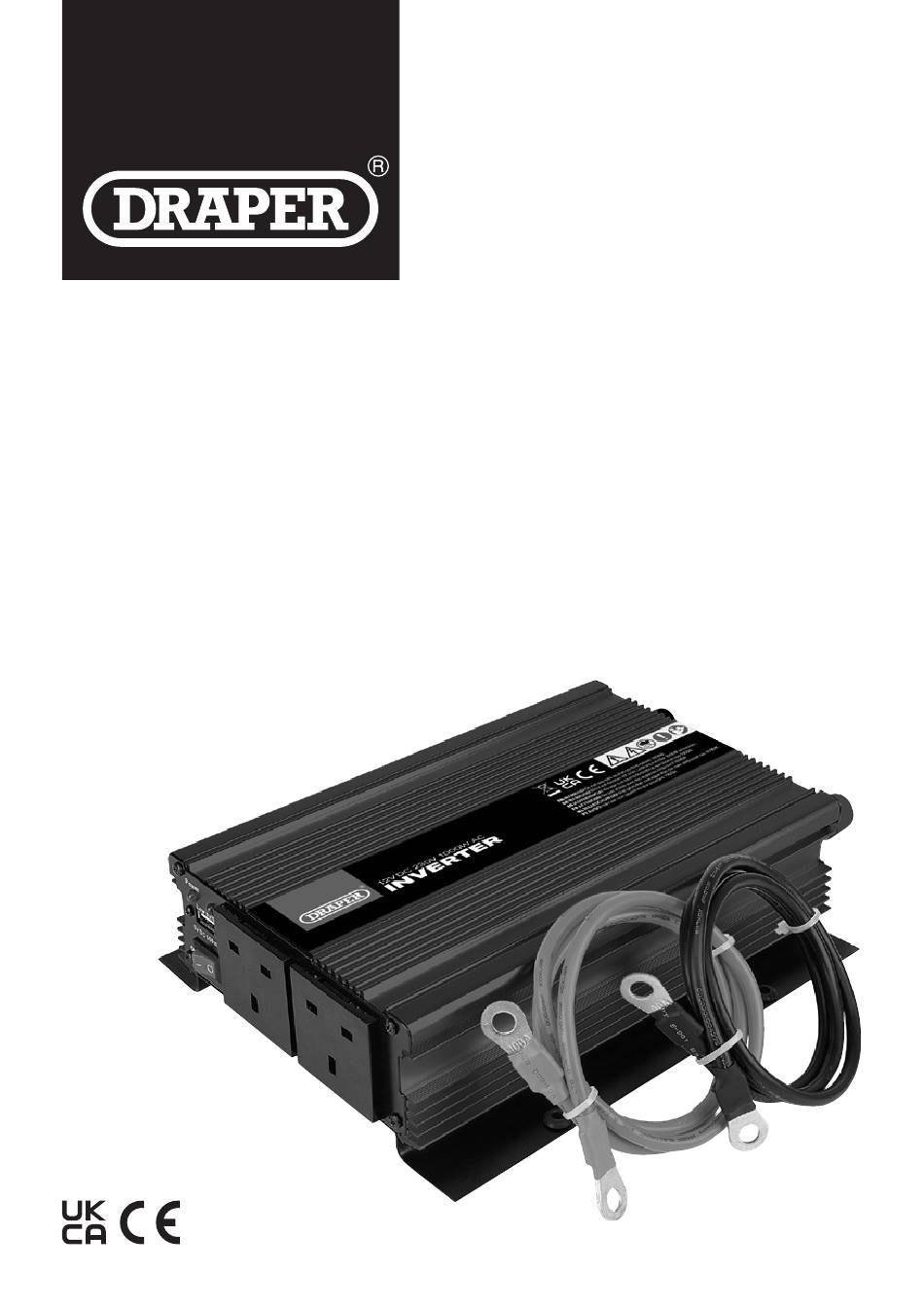

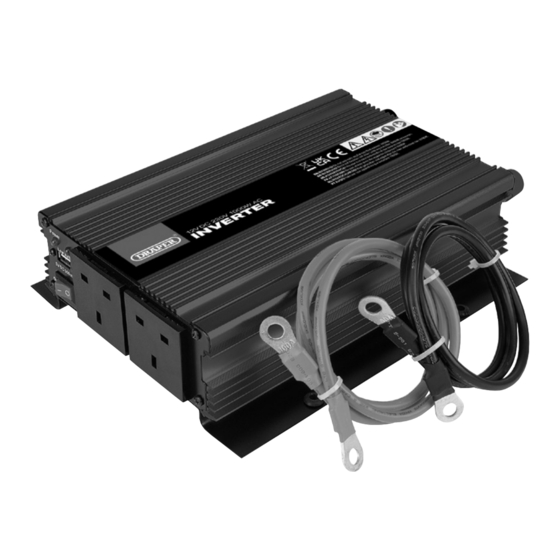

- Page 1 Original Instructions Version 3 12V DC 230V 1000W AC INVERTER 23245...
-
Page 2: Copyright © Notice
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 12V DC Vehicle Battery Safety 4.2 Explanation of symbols 5. Identification and Unpacking 5.1 Product Overview 6. -
Page 4: Product Introduction
Any other application beyond the conditions established power via connection with the vehicle’s battery. Ideal for for use will be considered misuse. Draper Tools accepts no use in caravans, mobile homes and boats and for responsibility for improper use of this product. -
Page 5: Health And Safety Information
10.6 and 15 Volts DC and must be able to supply doubt contact the manufacturer of the appliance sufficient current to operate the load. before connecting to the inverter. Draper Tools Limited accepts no liability for damage caused in • NEVER exceed the input voltage of 15V DC. -
Page 6: Explanation Of Symbols
4. Health and Safety Information 4.2 Explanation of Symbols WEEE – Waste Electrical & Electronic Equipment Read the instruction manual Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Keep out of the reach of children UK Conformity Assessed DO NOT use in wet or damp conditions European conformity... -
Page 7: Identification And Unpacking
Carefully remove the product from the packaging and missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be examine it for any signs of damage that may have occurred during shipment. If any part is damaged or found at the back of this manual. -
Page 8: Preparing The Inverter
6. Preparing the Inverter • Before connecting ensure nothing is plugged in and the inverter is switch off. 6.1 Power Inlet connections - Fig. 1. 1. Attach the required DC connector to the inverter. First remove the black (negative) terminal cap (7) and fit the black (negative) fork spade wire connector (10a) to the terminal, refit the cap and tighten securely Ensure it is positioned away from the positive terminal. -
Page 9: Usb Output
7. Inverter Operation 7.4 USB Output 1. Insert the USB cable into the USB socket (3) and switch on (2). • The current drawn will vary depending on the load placed on the battery. • Start and run the vehicle regularly to avoid starting problems due to a flat battery. -
Page 10: Maintenance And Troubleshooting
8. Maintenance and Troubleshooting 8.1 General Maintenance • Important: Any maintenance, servicing or repairs • When not in use store the inverter in a safe, dry, should be carried out by authorised and suitably childproof location. qualified personnel. • Always disconnect the inverter from the power supply before carrying out any maintenance. -
Page 11: Disposal
It also does not cover any damage caused by misuse, be free from defective materials and workmanship. Full careless or unsafe handling, modifications, or repairs details of the warranty period can be found on the Draper carried out by any personnel other than an authorised Tools Website. - Page 12 Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
