1000W AC Inverter
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
12V DC 230V
Stock No.23245
EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS FOR
Part No.IN1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper IN1000

Summary of Contents for Draper IN1000

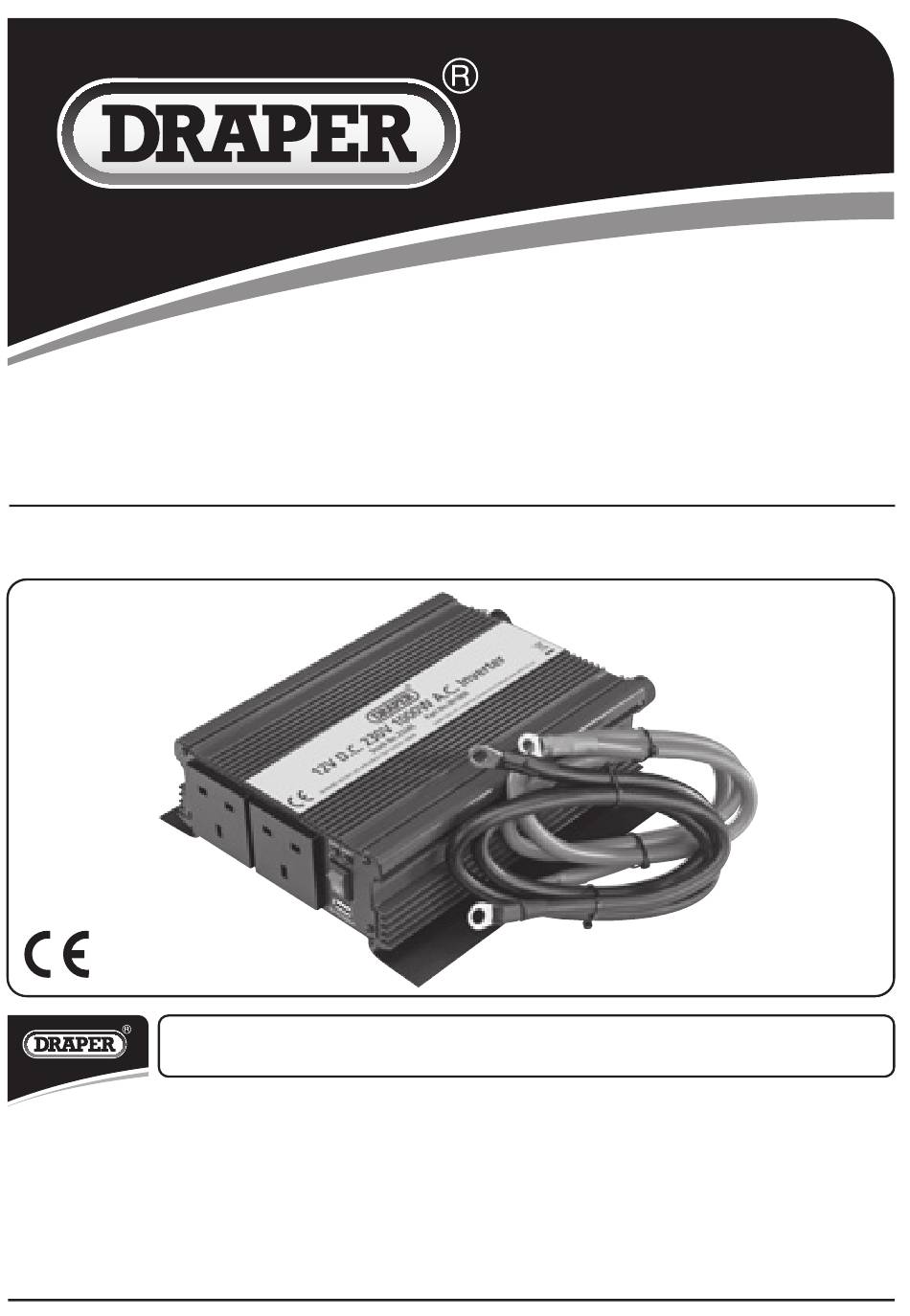

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    Converts 12V DC to 230V AC using power via battery connector leads. Ideal for use in caravans, boats and heavy goods vehicles etc. 4.2 SPECIFICATION Stock no..........................23245 Part no..........................IN1000 Input voltage ........................12V DC Output voltage...................... AC 230V/50Hz USB output ......................DC 5.0V/500mA Fuse ...........................

  • Page 6: Health & Safety Information

    AC power source. These types of device can cause damage to the inverter. If in doubt, contact the manufacturer of the appliance before connecting to the inverter. Draper Tools Limited accepts no liability for damage caused in any way by incorrect or inadvertent connection.

  • Page 7: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION AC Power outlet Red terminal (positive) On/Off switch Black terminal (negative) USB Output DC Earth terminal LED power indicator Anchor points (both sides) LED low battery indicator...

  • Page 8: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the inverter.

  • Page 9: Preparing The Inverter

    PREPARING THE INVERTER 8.1 POWER INLET CONNECTIONS - FIG. 1 To attach the desired DC connector loosen terminal (Black/Negative). Pass the Black fork spade behind the terminal and tighten securely. Ensure it is away from the positive terminal. follow the same process to attach the red fork spade to terminal (Red/Positive).

  • Page 10: Basic Inverter Operations

    BASIC INVERTER OPERATIONS 9.1 CONNECTING - FIG. 2 Prior to connection ensure the on/off switch is in the off position. The battery connectors. Attach the red connector to the battery positive terminal and the black connector to the negative terminal. 9.2 AC OUTPUT - FIG.

  • Page 11: Explanation Of Symbols

    10. EXPLANATION OF SYMBOLS 10.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish...

  • Page 12: Disposal

    11. DISPOSAL 11.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST PJDH0716...
