MANUAL
FOR ASSEMBLY AND OPERATION OF ELECTRIC FLOW-THROUGH
BOILER/MODULE WITH THREE STAGE ELECTRONIC CONTROL
PASSPORT
OF ELECTRIC BOILER WITH THREE STAGE ELECTRONIC CONTROL

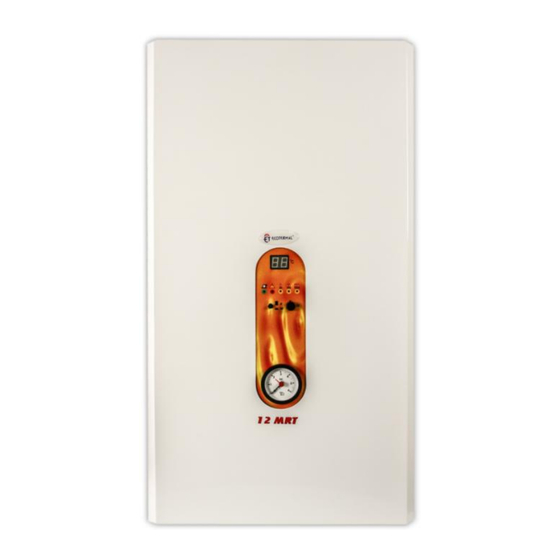

ECOTERMAL MRT/MODULE-T 6, 8, 10, 12, 15, 22, 30 kW
Bourgas 8000, 47 Slivnitsa str., tel: 056/814 681; 056/814 215; fax: 056/814 584
Sofia 1000, Druzhba 1 Complex, 39-41 Prof. Tzvetan Lazarov blvd.,
tel/fax: 02/979 0545; 02/979 0448
E – mail:
sales@ecotermal-bg.com
www.ecotermal-bg.com
1
Advertisement
Table of Contents
Related Manuals for Ecotermal MRT 30 kW
Summary of Contents for Ecotermal MRT 30 kW
- Page 1 PASSPORT OF ELECTRIC BOILER WITH THREE STAGE ELECTRONIC CONTROL ECOTERMAL MRT/MODULE-T 6, 8, 10, 12, 15, 22, 30 kW Bourgas 8000, 47 Slivnitsa str., tel: 056/814 681; 056/814 215; fax: 056/814 584 Sofia 1000, Druzhba 1 Complex, 39-41 Prof. Tzvetan Lazarov blvd., tel/fax: 02/979 0545;...
-
Page 2: Table Of Contents
Dear clients! ECOTERMAL Company is thanking you for the good choice you made! Please get familiar in detail with the present manual in order to use the full scale of the advantages of the electric boilers with three stage electronic control that will secure for you comfortable, ecologic and economic heating through their quality, reliable and modern automation. -
Page 3: Recommendations
2. INTRODUCTION The flow-through electric boiler ECOTERMAL is a modern ecological source of heat designated for story and central heating of small and average size houses and production facilities. The main advantages of heating with electric power are mostly cost effectiveness, high efficiency, environmental friendliness and compactness. -
Page 4: Technical Description Of The Boiler
can be integrated also in existing heating systems parallel with solid fuel boiler (exemplary diagrams are shown on Fig. 1 and 2 page 10). It is recommended for safer operation the electric boilers to be mounted in systems operating with a pump securing enforced circulation of the heat medium. - Page 5 The mainboard is joined by the individual elements shown in respective power wires arrangement. When replacing the boiler sensor or mainboard, but not replace the sensor, it is possible to obtain the temperature difference. For this purpose it is necessary to adjust the reading by trimmer potentiometer P2.
- Page 6 4.3. WIRING DIAGRAM To power wire X1 is getting operational power 240V/50Hz. It is secured by built-in breaker FS1 – 0.25 A. The three cables labeled R, S and T, must be submitted three phases of the contactors for power - pos.13. Relays are connected to six power wires X6 in scheme with a total zero.
- Page 7 follow the indicated polarity when connected. In a reverse connection does not fail, but the temperature is unreal. 4.4. DIFFERENT OPTIONS AND SPECIFIC RULES TO BE FOLLOWED DURING INSTALLATION AND USE. - By Boiler Thermo regulator The set point of the controller is set by the potentiometer for manual adjustment located on the front control panel and it is permanent.
-
Page 8: Operation Manual
economical in terms of protection of the electrical installation. (Ideal option for heating one premise). 5. OPERATION MANUAL - The customer has to provide water supply and electricity to the installation. - The customer monitors for leaks and controls the operating pressure in the system. - Adjust the boiler or room temperature depending on the operating principle of the installation and personal preferences. - Page 9 1. Boiler should be mounted at a place suitable for servicing (free access thereto) and possibility of opening the front lid. 2. Boiler should be mounted suspended on the wall at minimum height of 1 m off the floor. 3. Water filter should be mounted at the cold water intake before the pump by observing the direction marked on the filter itself (boiler fixture), in accordance with the attached manufacturer’s instructions.
-
Page 10: Method Of Connecting The System To A Solid Fuel Boiler, Fig
Method of connecting the system to a solid fuel boiler Fig. 1 1. Safety valve by temperature 7. Return valve 2. Air bleeder 8. Water filter 3. Shut off valve 9. Safety valve by pressure 4. Electric heater 10.Solid fuel boiler 5. - Page 11 2. Electric heater 8. Shut off valve 3. Electric boiler 9. Manifold Box 4. Expansion vessel 5. Circulation pump 6. Water filter ELECTRICAL BOILER MRT 6 - 30 kW 1. Frame 9. Pressure-gauge 2. Safety Valve 2.5 bar–½” 10. Heaters 4.
- Page 12 Fig.3 MODULE T 6 – 30 KW 1. Frame 7. Control Module 2. Safety Valve 2.5 bar–½” 8. Water Container 4. Automatic Breaker 9. Pressure-gauge 5. Emergency (blocking) Thermostat 10. Heaters 6. Air Bleeder 12. Control Panel...
-
Page 13: Control Panel, Fig
13. Pressure-gauge Valve 15. Thermostat Pocket Fig.4 CONTROL PANEL 1. Digital Display 2. LED Indication– First Stage ON 3. LED Indication of activated emergency thermostat 4. LED Indication of circulation pump condition 5. Button – set/current temperature 6. Pressure-gauge 7. Potentiometer of boiler’s temperature 8. - Page 14 МRТ 6 - 30 6 - 30 height length width Module-T 6 – 30 6 - 30 height length width Maximum power 6, 8 10,12 Comutations level Boiler body volume Supply voltage 240/400 240/400 240/400 Fig. 6 Dimensions of electric boilers/module with three stage control Tab.
- Page 15 Cross-section of power supply cables to electric network Р [ kW] Cross-section [mm heater fuse Electrical boilers Electrical modules 5 x 2,5 11,11 5 x 2,5 Weight, Power, Weight, Power, kW Model Model ( 3 x 2,5 + 1,5 ) + 1 х 4 13.89 ( 3 x 4 + 2,5 ) + 1 х...
- Page 16 MODEL Module Т EQUIPMENT √ − Expansion tank √ − Circulation pump √ − Water filter √ √ Safety valve Blocking (emergency) √ √ Thermostat √ √ Air bleeder √ √ Mounting brackets Tab. 6 Note: The manufacturer reserves the right to make construction changing of the product.
