PASSPORT

OF ELECTRIC FLOW THROUGH BOILER; MODULЕ; BOILER WITH DHW

ECO-LCD 3-6 kW, 8-16 kW, 12-24 kW

ECO-LCD Modul 3-6 kW, 8-16 kW, 12-24 kW

ECO-LCD Combi 3-6 kW, 8-16 kW, 12-24 kW

ECO-LCD Mobile 3-6 kW, 8-16 kW, 12-24 kW

ECO-LCD/K 3-6 kW, 8-16 kW

Burgas 8000, 47 "Slivnitza "str., tel. 056/ 81 42 15 056/ 81 46 81,

E – mail:

@ecotermal-bg.com

ecotermal

www.ecotermal.com

Need help?

Do you have a question about the ECO-LCD and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecotermal ECO-LCD

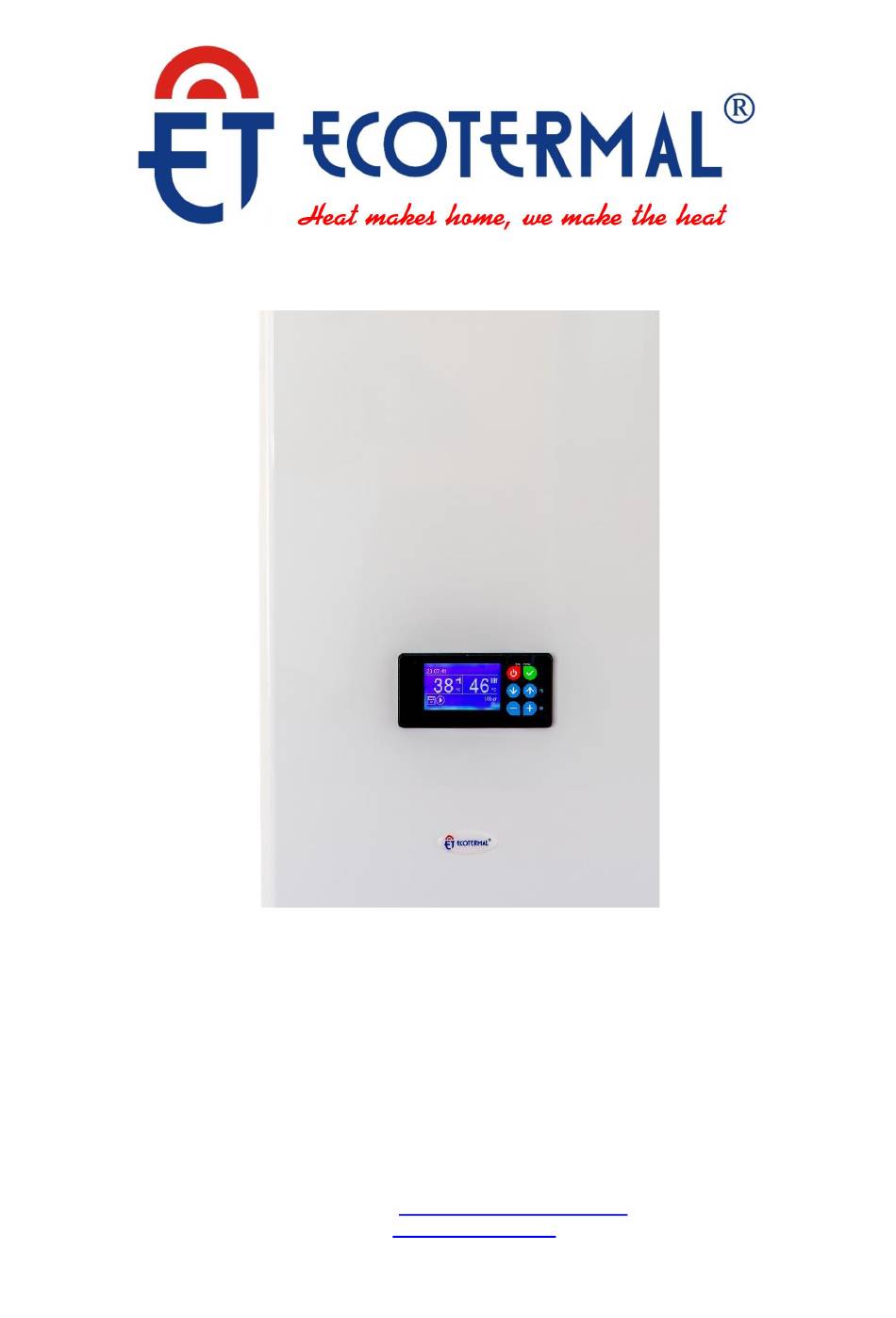

Page 1 OF ELECTRIC FLOW THROUGH BOILER; MODULЕ; BOILER WITH DHW ECO-LCD 3-6 kW, 8-16 kW, 12-24 kW ECO-LCD Modul 3-6 kW, 8-16 kW, 12-24 kW ECO-LCD Combi 3-6 kW, 8-16 kW, 12-24 kW ECO-LCD Mobile 3-6 kW, 8-16 kW, 12-24 kW ECO-LCD/K 3-6 kW, 8-16 kW Burgas 8000, 47 “Slivnitza “str., tel.
Page 2 Dear customers! „ECOTERMAL” Ltd. Appreciates the good choice you have made! Please get familiar with the present manual in order to use the full scale of advantages of electric boilers with relay control that will secure comfortable, environmentally-friendly and efficient heating through quality, reliability and modern automation.
Page 3 1. RECOMMENDATIONS This Electrical Boiler is not intended for use by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions. Children must not play with the Electric boiler. Safe exploitation and assembly instructions manual must be observed.
Page 4 3. TECHNICAL DESCRIPTION OF BOILER/MODULE Control panel 1. Display 2. Power/ESC button Menu /ОК button 4. Up/Down navigation buttons / DHW Temperature set 5. Plus / Minus buttons /CH Temperature set HOME SCREEN 1. Time display: Displays current time 2. Notification area : Displays notification icons Control panel established USB connection with computer Weather temperature readout Wireless network is connected...
Page 5 Week timer icon: Active for present day Frost protection icon: Frost protection is active 6. Water /heat carrier/ pressure readout: Displays the water pressure of the installation in bars 7. Output power indicator: Displays the output power of the boiler. ●...
Page 6 ● Week timer programming Press the Menu button to enter the main menu. Use buttons to select Week program and press Menu button to enter Week timer menu. Steps for week timer programming Highlight the day of the week by pressing buttons Select the day of week by pressing buttons Highlight the Enable switch by pressing buttons Press buttons...
Page 7 Settings Press the Menu button to enter the main menu . Use buttons to select Settings and press Menu button to enter Settings menu. Date/Time Use buttons to highlight Year/Month/Date, Hours / Minutes / Seconds. Press buttons to adjust. Highlight Return and press or press button to exit.
Page 8 4. BOILER STRUCTURE ● ELECTRIC DIAGRAM...
Page 9 ● BOILER / only heating 1. Safety valve 6. Flow meter 11. Temperature sensor output 2. Circulation pump 7. Motherboard 12. Heating element 3. Air bleeder 8. Control board Triacs 13. Temperature sensor 4. Temperature sensor input 9. Terminal block 14.
Page 10 ● MODULE / only heating 1. Safety valve 6. Terminal block grounding 11. Heating element 2. Air bleeder 7. Automatic circuit breaker 12. Temperature sensor Triacs 3. Mother board 8. Flow meter 13. Switch at temperature of 120°C 4. Control board Triacs 9.
Page 11 ● BOILER heating and DHW /domestic hot water/ 1. Circulation pump 12. Safety valve 2. Flow sensor 13. Flow meter 3. Air bleeder 14. Expansion vessel 4. Heating element DHW 15. Temperature sensor 5. Temperature sensor output input 16. Heating element 6.
Page 12 MOBILE BOILER – heating only ● OUTPUT INPUT Safety valve Expansion vessel Circulation pump Flow meter Air bleeder Temperature sensor output Temperature sensor input Heating element Pressure gauge Temperature sensor Motherboard Switch at temp. of 120°C INPUT Control board Triacs Terminal block...
Page 13 ● BOILER with BUILT-IN COLLECTORS 1.Safety valve 9.Automatic circuit breaker 2. Circulation pump 10.Temperature switch at 120° 3. Air bleeder 11. Temperature sensor Triacs 4.Temperature sensor input 12. Heating element 5.Pressostat 13. Temperature sensor output 6.Flow meter 14. Expansion vessel 7.Motherboard 15.
Page 14 MOBILE BOILER – external dimensions ● Service settings Boiler configuration Hydraulic type CHOnly DualH Notes Only Type of configuration heating heating blocks 50KΩ 50KΩ 2 Sensor temperature 1 T1Type 50KΩ 50KΩ 3 Sensor temperature 2 T2Type 50KΩ 50KΩ 4 Sensor temperature 3 T3Type 5 Sensor temperature 4 T4Type...
Page 15 Flow allowing switching-OFF Switching-off heating under Heating CHFlowOffHz flow frequency Delay of reaction Delay in detecting heating Heating CHFlowDelay flow Flow allowing switching-ON Frequency of water flow for Domestic Hot Water DHWFlowOnHz Flow allowing switching- OFF Frequency of flow for switch Domestic Hot Water DHWFlowOffHz off of DHW...
Page 16 DHW DHWPIDSampleTime Do not change PID setting DHW coefficient correction of flow DHWFlowCoef 55 DHW inertia of sensor DHWSensorInertia „0“ no „1“ active 56 Drying putty activate DringProgEnabled „0“ no „1“ active 57 Logo Ecotermal ShowOemLogo...
Page 17 6. OPERATION MANUAL Boiler user: ●provides water supply and electricity to the installation. ●monitors for leaks and controls the operating pressure in the system. ●adjusts the boiler or room temperature depending on the operating principle of the installation and personal preferences. ●upon departure from set parameters the user calls authorized service.
Page 18 9 . Tables-technical data Dimensions ECO-LCD Boiler Height Width Depth ECO-LCD Modul Height Width Depth ECO-LCD Combi Height Width Depth ECO-LCD/K Height Width Depth Height Width Depth Table 1 Technical data Maximum operation pressure Test pressure Minimum pressure Control of water temperature °C...
Page 19 Mass of models MODEL POWER ECO-LCD ECO-LCD Modul ECO-LCD Combi ECO-LCD/K 22,63 kg 11.62 kg 29,74 kg 32 kg 8-16 23,76 kg 12.47 kg 31,71 kg 35,16 kg 12-24 26,89 kg 14.74 kg 36,15 kg Table 4 MODEL “ECO-LCD „ECO-LCD”...
Page 20 Sensor error T1 T1 sensor malfunction Replace T1 sensor Sensor error T2 T2 sensor malfunction Replace T2 sensor Sensor error T3 T3 sensor malfunction Replace T3 sensor Sensor error T4 T4 sensor malfunction Replace T4 sensor Low pressure Insufficient water pressure in Check the installation the installation Charge...
