Ecotermal M 6 Assembly And Operational Manual

Electric boiler/module with microprocessor control
Hide thumbs
Table of Contents

Advertisement

Quick Links

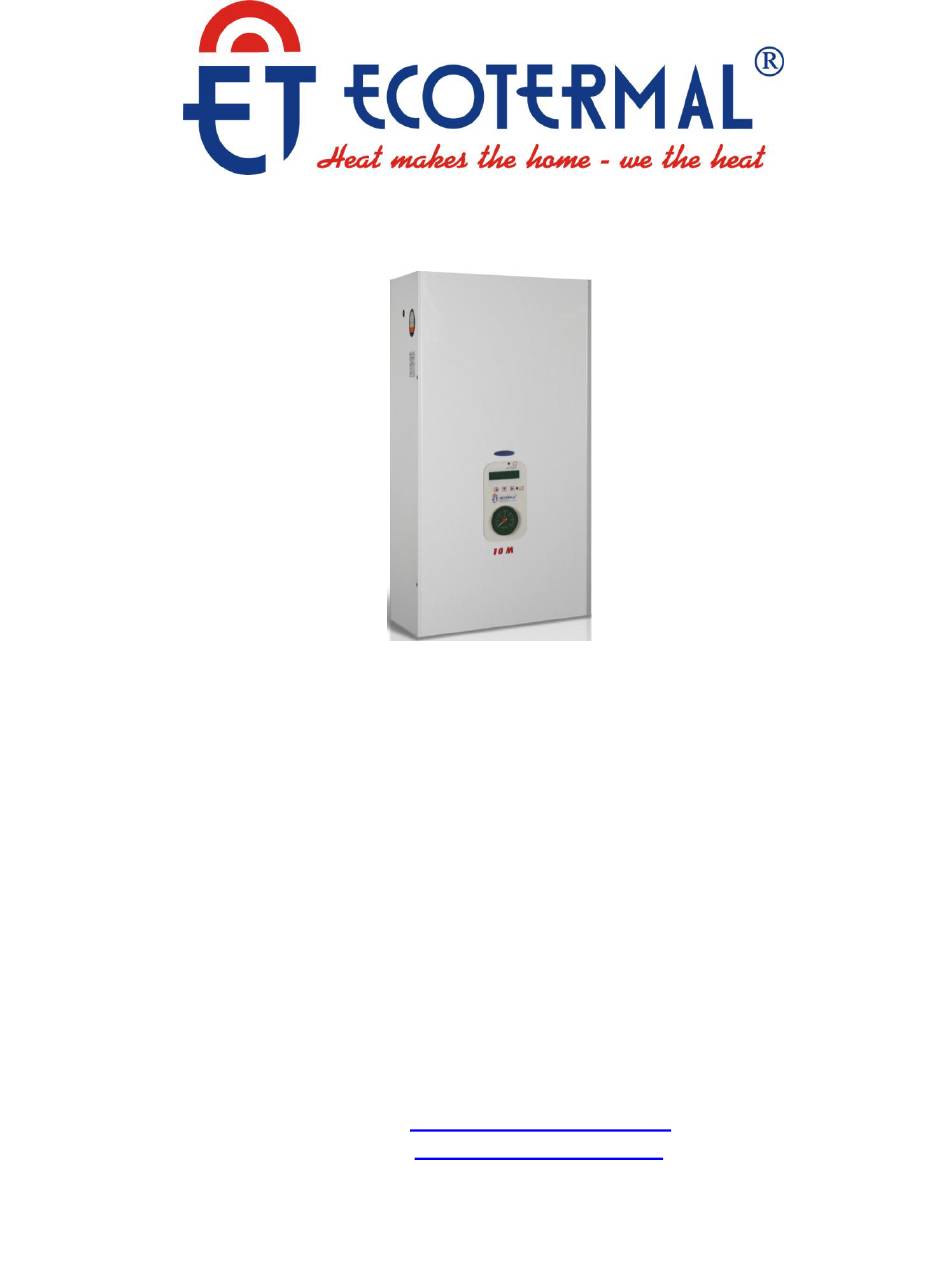

MANUAL
FOR ASSEMBLY AND OPERATION OF ELECTRIC FLOW-THROUGH
BOILER/MODULE WITH MICROPROCESSOR CONTROL
PASSPORT
OF ELECTRIC BOILER/MODULE WITH MICROPROCESSOR CONTROL
"M" 6, 8, 10, 12, 15, 22, 30 kW
MODULE "M" 6, 8, 10, 12, 15, 22, 30 kW
„M WHS" 24 and 30 kW
