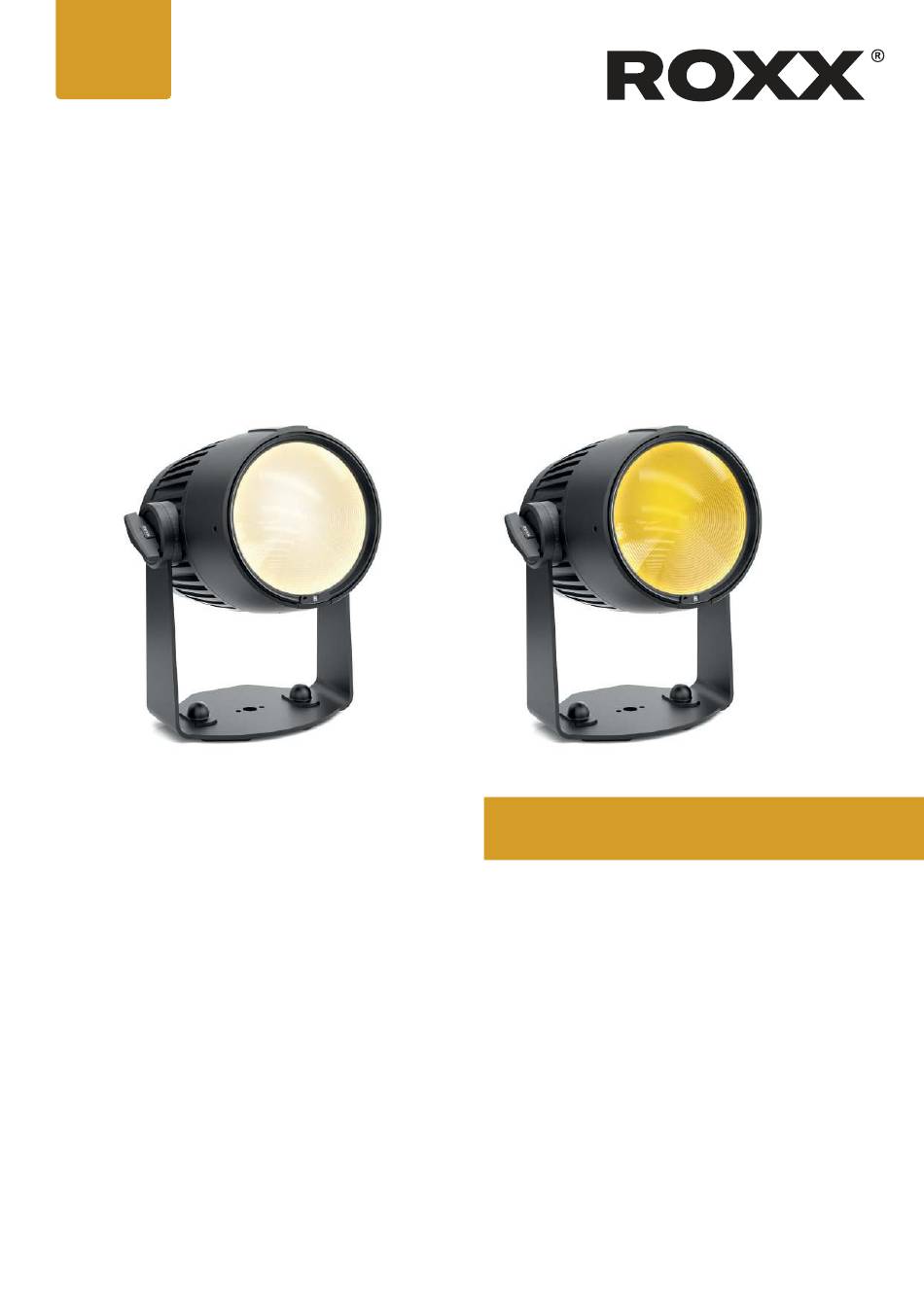

  • Page 1 User Manual B.SHOW mini TW+ B.SHOW mini FC USER MANUAL...

  • Page 2: Table Of Contents

    User Manual CONTENT 1. Safety Informations 1.1. General Preventive Measures 1.2. Regulations for equipment that connects to power mains 1.3. Technical warnsigns and explanation 1.4. Battery Safety 2. Introduction 2.1. About us 2.2. B.SHOW mini TW+ / B.SHOW mini FC 3.
  • Page 3 User Manual 7. Technical Data / Diagrams 7.1 Technical drawings and measurements 7.2 IP Rating 7.3 Technical Data - B.SHOW mini TW+ 7.4 Technical Data - B.SHOW mini FC 7.5 DMX-Charts / Color Macro Charts / CCT Chart 7.6 RDM Templates 7.7 Firmware Update 8.

  • Page 4: Safety Informations

    1.1.1. Please read, understand and follow the instructions. 1.1.2. Store the instructions and information in a safe place. ® Best solution is the ring binder provided by ROXX 1.1.3. Follow all safety warnings. Under no circumstances remove safety warnings or other information from the equipment.

  • Page 5: Regulations For Equipment That Connects To Power Mains

    User Manual 1.1.20. Observe all disposal laws applicable in your country. Especially for the packaging. 1.1.21. Plastic bags are not a toy! Keep away from children! 1.1.22. Please note that changes or modifications which are not approved by the party responsible for compliance will void the user’s authority to operate the device.

  • Page 6: Technical Warnsigns And Explanation

    User Manual 1.3. Technical warnsigns and explanation In order to prevent the risk of an electric shock, under no circumstances remove the cover/back or open the unit in any way! No user serviceable parts are inside. Service, maintenance and repairs should only be done by qualified service personnel or the manufacturer.

  • Page 7: Battery Safety

    User Manual • This is a product which has been developed for professional usage in event technology. It is not suitable as a houshold lighting. • NEVER stare, not even temporarily, directly into the light source. • Don‘t use magnifiers or any other optical instrument to look at the beam. •...

  • Page 8: Introduction

    24 hours. The integrated battery management system protects against deep discharge and overcharging. The integrated CRMX transceiver module offers the latest wireless technology from Lumenradio, and the headlamp can also be conveniently controlled via Bluetooth using the ROXX.APP. The ROXX ®...

  • Page 9: General Product Information

    • Stand Alone Functions including cinema effects, various auto programs, customisable scenes, CCT, LEE adjusted color macros and custom color templates (RGBL) • Master & Slave (by DMX and Wireless DMX) • Wireless DMX (Lumenradio CRMX ® • ROXX App - Bluetooth 5.0 3.3. Features...

  • Page 10: Installation & Setup

    Manual 4. INSTALLATION & SETUP 4.1 Physical Installation and Rigging ROXX B.SHOW mini TW+ / B.SHOW mini FC may be installed in any orientation. For this purpose the product provi- des several options: Standing: The fixtures yoke with its implemented rubber feet is designed to ensure a secure stand on nearly every plane surfa- ce with every possible angle/orientation of the lamp ́...

  • Page 11: Connections

    Pendant Light*: The sophisticated and attractive design of the ROXX B.SHOW mini TW+ / B.SHOW mini FC makes the luminaire predestinated for the use as a pendant light, e.g. for exhibition booths, galas,… The position of the safety eyelet and the lamp body balancing makes that possible in a perfect way.

  • Page 12: Ac Power

    Manual 4.2.1.1 AC Power The ROXX B.SHOW mini TW+ / B.SHOW mini FC operates on any 100–260 V, 50/60 Hz AC mains power supply with a maximum power consumption of 220W. Connect the fixture to AC power using the supplied cable or a similar one with Neutrik powerCON TRUE1 NAC3FX-W or a compatible type, to ensure the correct ingress protection (IP).

  • Page 13: Dmx Connection

    Working in Receiver Mode: receive wireless DMX- and RDM Signals via CRMX Working in Transmitter Mode: transmit DMX (1 universe) to other units via CRMX Full Control via Bluetooth 5.0 and ROXX App The Fixture is able to send DMX-data received by CRMX or Bluetooth to its physical DMX-Output XLR Connector and hereafter, plugged in by cable, to any DMX-capable unit.
  • Page 14 User Manual 4.2.2.2. Wireless Connection CRMX Disabled Operation Mode n.a. •DMX 11 CH Linked The indicator infront of "DMX" shows that DMX is active. Receive Reset Next Enabled ( 12 ) BLE (Bluetooth) Disabled CRMX Enabled • CRMX(RX) The indicator infront of "CRMX Operation Mode (RX)"...
  • Page 15 Enabled + Paired DMX). BLE (Bluetooth) Enabled CRMX CRMX(TX) Operation Mode No indicator infront of "BLE", 11 CH Linked fixture is not paired to ROXX Receive Reset App. Next Disconnect ( 12 ) BLE (Bluetooth) Enabled, not paired CRMX Enabled...

  • Page 16: Operation

    Once the fixture is switched On, the boot process starts and the following information will appear on the display: “Ready to ROXX”, the product name and the current software version. After this process, the fixture is ready for operation, and starts in the previously enabled mode.
  • Page 17 User Manual Display Off Pressing ESC + arrow down simultaneously the display backlight function will set to off and the display will turn off immediately. Once a control is pressed the display backlight will turn on. BLE enabled / disabled Pressing ESC + Arrow Up simultaneously the Bluetooth will enabled or disabled.

  • Page 18: Configuration

    User Manual 5.4 Configuration Home Screen After boot process the fixture is ready for operation and starts in the previously enabled mode. At home screen the following information will appear, depending on the current operating mode: DMX Adress Operating Mode (DMX Mode, Quick Light or Standalone Mode) Next available DMX address depending on the fixtures DMX footprint External Data protocol (CRMX, DMX, BLE).

  • Page 19: Stand Alone

    User Manual Level 1 Level 2 | B.SHOW mini TW+ Level 2 | B.SHOW mini FC Menu DMX Mode DMX Mode DMX Mode 3CH CCT 3CH CCT Stand Alone 3CH RGB 3CH RGB Slave 6CH RGB 6CH RGB Settings 9CH RGB 9CH RGB 11CH RGB (default) 11CH RGB (default)
  • Page 20 User Manual arrows to adjust the speed value between 000-100 and confirm by ENTER or jump back by ESC. To adjust brightness please select “Dim” as per the procedure previously described and confirm with ENTER. After use UP / DOWN arrows again to adjust the brightness value between 000-100 and confirm by ENTER or jump back by ESC. Once it´s confirmed or denied the display will automatically jump back to level 3.
  • Page 21 User Manual * Note: Once "Color Calibration" is selected under "Color Settings" inside Stand Alone, only values for RGB for the center LED are available here. Using UP / DOWN arrows at homescreen Editor program can be directly changed according to the list. For choosing the right strobe effect please follow the Strobe Channel from our DMX chart at the end of this manual.
  • Page 22 User Manual To select a color macro please press ENTER to access to main menu (level 1). While using the UP / DOWN arrows select the menu item “Stand Alone” and confirm by pressing ENTER. After please select the item “Color Macro” by using the up/down arrows and press ENTER again. Using UP and DOWN controls, select "Center"...
  • Page 23 User Manual Quick Color* The standalone mode “Quick Color” allows a direct adjustment of the single LED colors Dimmer and Shutter. Level 1 Level 2 Level 3 | B.SHOW mini TW+ Level 3 | B.SHOW mini FC Menu Stand Alone Mode Quick Color Quick Color DMX Mode...
  • Page 24 User Manual Using UP and DOWN controls to select your desired menu item, confirm by ENTER and adjust the desired value by up and down controls and confirm all entries with ENTER. * Note: Tint values = no function/neutral 001 - 127 = + green -001 to - 127 = - green...
  • Page 25 User Manual Timer* Via the internal timer function, all Stand Alone modes except "Auto" and "Editor" can be conveniently faded in and out after the function is enabled in the previously activated standalone mode, without the need for an external controller. Also it remains active even the fixture is switched off and restarted.

  • Page 26: Slave Mode

    User Manual Level 1 Level 2 Level 3 Menu Stand Alone Mode Color Settings DMX Mode Stop Stand Alone Color Calibration Stand Alone Auto Slave Editor Settings Color Macro Quick Color System Info Tunable White User Color Timer Color Settings 5.4.4 Slave Mode* Slave Mode allows same model fixtures to be controlled by the “Master”...
  • Page 27 User Manual Main Menu Menu level 2 Menu level 3 Menu level 4 Description CRMX <on/off> On=CRMX enabled / Off= CRMX disabled Receive= CRMX module as Receiver Operating Mode <receive/transmit> Transmit= CRMX module as Transmitter Yes= pair with CRMX devices. CRMX must be activated on all devices and the pairing must be Transmit Link <no/yes>...
  • Page 28 User Manual Hold Hold= last command retains DMX Fail Blackout Blackout= Activates Blackout Emergency Light Emergency Light= Fixtures changes to 5600K Hold Hold= last command retains AC Fail Blackout Blackout= Activates Blackout Emergency Light Emergency Light= Fixtures changes to 5600K Linear= Light intensity increases linear Linear with DMX value...
  • Page 29 User Manual Main Menu Menu level 2 Menu level 3 Menu level 4 Menu Level 5 Description 3CH CCT / 3CH RGB / 6CH RGB, 9CH RGB / 11CH RGB / 14CH DMX Mode RGB / 6CH DIRECT / 12CH B.SHOW mini TW+ DIRECT / 13CH DIRECT / 20CH DIRECT / 3CH HSI / 10CH HSI...

  • Page 30: System Info

    User Manual 5.4.6 System Info Level 1 Menu DMX Mode Stand Alone Slave Settings System Info Main Menu Menu level 2 Menu level 3 Menu level 4 Display installed firmware version Firmware Version vx.xx B.SHOW mini TW+: 0118xxxxxxxxx Serial Number B.SHOW mini FC: 0119xxxxxxxxx B.SHOW mini TW+: 0X6a6a0118xxxx...

  • Page 31: Accessories

    User Manual 6. ACCESSORIES 6.1 Lenses Available lenses for ROXX B.SHOW mini TW+ / B.SHOW mini FC with order numbers: Very Narrow Narrow Medium Wide Elliptical Narrow Elliptical Wide Art.: 11409701 Art.: 11408901 Art.: 11409001 Art.: 11409101 Art.: 11409201 Art.: 11409301 Lens matrix B.SHOW mini TW+:...

  • Page 32: More Accessories

    User Manual 6.2 More accessories Accessory Holder 8-Way Barndoor Honey Comb Omega Bracket ST Art.: 11909401 Art.: 11909501 Art.: 11909501 Art.: 90900002 Full Anti-Glare Shield Art.: 11909801...

  • Page 33: Technical Data / Diagrams

    User Manual 7. TECHNICAL DATA / DIAGRAMS 7.1 Technical drawings and measurements - ROXX B.SHOW mini TW+ / B.SHOW mini FC 230.0 mm 208.0 mm 237.0 mm 168.0 mm 188.60 mm...

  • Page 34: Ip Rating

    7.2 IP Rating ROXX products conform to officially classified IP standard levels. B.SHOW mini TW+ / B.SHOW mini FC is rated to IP65 when using the covers for the housing parts. IP stands for Ingress Protection and IP65, according to classified standard, means shielded against dust and high-pressure jets of water from any side.

  • Page 35: Technical Data - B.show Mini Tw

    User Manual 7.3 Technical Data - B.SHOW mini TW+ Photometrics LED expected lifetime 50.000 hours Lightsource 1x200W RGBL reflector + interchangable lens plates Type of optical system LED PWM Frequency selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz Beam angles (50%) 14°...
  • Page 36 User Manual 7.3 Technical Data - B.SHOW mini TW+ Temperature range, Start-Up on Battery -20° to 40°C Temperature range, Operating on DC Power Supply 0°C to 40°C Temperature range, Start-Up on DC Power Supply 0°C to 40°C Temperature range, Storage -10°C to 25°C Temperature range, Charging 0°C to 40°C...

  • Page 37: Technical Data - B.show Mini Fc

    User Manual 7.3 Technical Data - B.SHOW mini TW+ Standalone mode Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer Wireless DMX Lumenradio with RDM (CRMX) OLED graphical display  indicator controls 4 touch sensitive, backlighted controls 0-20Hz  Strobe DMX I/O IP65 XLR 5-pin male/female...
  • Page 38 User Manual 7.3 Technical Data - B.SHOW mini FC illuminance Lux @ 3m (with EN lens) 930lx illuminance Lux @ 3m (with EW lens) 640lx Dimensions & Weight IP class IP65 Body material Aluminum, Nylon Lens material Tempered glass front Net dimensions (w x h x d) 170 x 273 x 230mm Net dimensions inches...
  • Page 39 User Manual 7.3 Technical Data - B.SHOW mini FC Included / optional Included items 2x radiator caps for pendant installation 2m power cord Optional Accessories Multiple Lens Plates (circular & elliptical), Safety-Free Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel- Frame, Omega Bracket with quater-turn fasteners, Touring Cases Color options Black –...

  • Page 40: Dmx-Charts / Color Macro Charts / Cct Chart

    User Manual 7.5 DMX Chart B.SHOW mini TW+ 3CH CCT 6CH DIRECT 3CH RGB 12CH DIRECT 6CH RGB 13CH DIRECT 9CH RGB 20CH DIRECT 11CH RGB (default mode) 3CH HSI 14CH RGB 10CH HSI 3 CH CCT MODE (Color Calibration) Function Value Setting...
  • Page 41 User Manual 9 CH RGB MODE - (Color Calibration) Function Value Setting Dimmer 000-255 0 - 100% 000 - 019 Shutter close 020 - 024 Shutter open 025 - 064 Strobe 1 (fast slow) 065 - 069 Shutter open 070 - 084 Strobe 2: opening pulse (fast slow) 085 - 089...
  • Page 42 User Manual 11 CH RGB Mode (Color Calibration) default mode Dimmer Center 000-255 0 - 100% 000 - 019 Shutter close 020 - 024 Shutter open 025 - 064 Strobe 1 (fast slow) 065 - 069 Shutter open 070 - 084 Strobe 2: opening pulse (fast slow) 085 - 089...
  • Page 43 User Manual 000 - 005 no function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade (Transition Time 106-214 11s - 119s (1s steps) between Color 215-244 2m - 4m50s (10s steps) Macros) 245-255 5m - 15m (1m steps) 000-029 No function 030-034 Linear Dimmer Curve (hold 3s)
  • Page 44 User Manual 14 CH RGB Mode (Color Calibration) Function Value Setting Dimmer Center 000-255 0 - 100% Dimmer Fine 000-255 0 - 100% 000 - 019 Shutter close 020 - 024 Shutter open 025 - 064 Strobe 1 (fast slow) 065 - 069 Shutter open 070 - 084...
  • Page 45 User Manual 000 - 005 no function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade (Transition Time 106-214 11s - 119s (1s steps) between Color 215-244 2m - 4m50s (10s steps) Macros) 245-255 5m - 15m (1m steps) 000-029 No function 030-034 Linear Dimmer Curve (hold 3s)
  • Page 46 User Manual 12 CH - DIRECT MODE (RAW Balance) Function Value Setting 000-255 0 - 100% Red Fine 000-255 0 - 100% Green 000-255 0 - 100% Green Fine 000-255 0 - 100% Blue 000-255 0 - 100% Blue Fine 000-255 0 - 100% Amber...
  • Page 47 User Manual 000-255 0 - 100% Green 000-255 0 - 100% Blue 000-255 0 - 100% Amber 000-255 0 - 100% Lime 000-255 0 - 100% Cyan 000-255 0 - 100% 000 - 004 005-226 2000K-6500K linear in 20-21K steps 182-182 5600K (affects RGBALC)
  • Page 48 User DMX CHART Manual 145-149 Runtime 16h (hold 3s) 150-154 Runtime 20h (hold 3s) 155-159 No function Redshift affects only between 2700-3500K 160-164 Redshift On (Hold 1,5s) Device Settings (please see 165-169 Redshift Off (Hold 1,5s) remark *1) 170-179 No function 180-184 Factory Reset (hold 3s) - except User Reset defaults 185-189...
  • Page 49 User DMX CHART Manual Amber Fine 000-255 0 - 100% Lime 000-255 0 - 100% Lime Fine 000-255 0 - 100% Cyan 000-255 0 - 100% Cyan Fine 000-255 0 - 100% 000 - 004 005-226 2000K-6500K linear in 20-21K steps (affects RGBALC/ 182-182 5600K...
  • Page 50 User Manual 145-149 Runtime 16h (hold 3s) 150-154 Runtime 20h (hold 3s) 155-159 No function 160-164 Redshift On (Hold 1,5s) Device Settings Redshift affects only between 2700-3500K (please see 165-169 Redshift Off (Hold 1,5s) remark *1) 170-179 No function 180-184 Factory Reset (hold 3s) - except User Reset defaults 185-189 User Reset (hold 3s) - except User Colors...
  • Page 51 User Manual 000-255 0° (RED) Thru 360° Saturation 000-255 0 - 100% (CTC-->HUE) 000 - 004 5600K 005-226 2000K-6500K linear in 20-21K steps (affects HUE and Saturation) --> CTC 182-182 5600K no effect if Satura- 226-226 6500K tion to 100% 227-255 6621K-10.000K linear in 120-121K steps No function...
  • Page 52 User Manual 175-179 CCT Calibration (CCT only / RAW Colors / Hold 3s) 180-184 Factory Reset (hold 3s) - except User Reset defaults 185-189 User Reset (hold 3s) - except User Colors 190-255 No function After adjustments please set the value back to 000 to avoid any remark *1 disturbance by endless function call.
  • Page 53 User Manual 7.5 DMX Chart B.SHOW mini FC 3CH CCT 4CH DIRECT 3CH RGB 8CH DIRECT 6CH RGB 11CH DIRECT 9CH RGB 16CH DIRECT 11CH RGB (default mode) 3CH HSI 14CH RGB 10CH HSI 3 CH CCT MODE (Color Calibration) Function Value Setting...
  • Page 54 Magenta -> Neutral (affects CTC and 128-128 Neutral RGB) 129-255 Neutral -> Green Color Macro Please use color macros from ROXX color macro chart (override RGB/CTC) 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade...
  • Page 55 182-182 5600K 226-226 6500K 227-255 6621K-10.000K linear in 120-121K steps no function Tint 001-127 Magenta -> Neutral (affects CTC and 128-128 Neutral RGB) 129-255 Neutral -> Green Color Macro Please use color macros from ROXX color macro chart (override RGB/CTC)
  • Page 56 User Manual 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade (Transition Time 106-214 11s - 119s (1s steps) between Color 215-244 2m - 4m50s (10s steps) Macros) 245-255 5m - 15m (1m steps) 000-029 No function 030-034 Linear Dimmer Curve (hold 3s)
  • Page 57 5600K 226-226 6500K 227-255 6621K-10.000K linear in 120-121K steps no function Tint 001-127 Magenta -> Neutral (affects CTC and 128-128 Neutral RGB) 129-255 Neutral -> Green Color Macro (override RGB+Fine/ Please use color macros from ROXX color macro chart CTC)
  • Page 58 User Manual 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade (Transition Time 106-214 11s - 119s (1s steps) between Color 215-244 2m - 4m50s (10s steps) Macros) 245-255 5m - 15m (1m steps) 000-029 No function 030-034 Linear Dimmer Curve (hold 3s)
  • Page 59 User Manual 8 CH - DIRECT MODE (RAW Balance) Function Value Setting 000-255 0 - 100% Red Fine 000-255 0 - 100% Green 000-255 0 - 100% Green Fine 000-255 0 - 100% Blue 000-255 0 - 100% Blue Fine 000-255 0 - 100% Lime...
  • Page 60 Magenta -> Neutral (affects CTC 128-128 Neutral and RGBL) 129-255 Neutral -> Green Color Macro Please use color macros from ROXX color macro chart (override RGBL/CTC) 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade...
  • Page 61 User Manual 130-134 Runtime Off (hold 3s) 135-139 Runtime 8h (hold 3s) 140-144 Runtime 12h (hold 3s) 145-149 Runtime 16h (hold 3s) 150-154 Runtime 20h (hold 3s) 155-159 No function Device Settings Redshift affects only between 2700-3500K 160-164 Redshift On (Hold 1,5s) (please see 165-169 Redshift Off (Hold 1,5s)
  • Page 62 Magenta -> Neutral (affects CTC 128-128 Neutral and RGBL) 129-255 Neutral -> Green Color Macro Please use color macros from ROXX color macro chart (override RGBL,CTC) 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps) Crossfade...
  • Page 63 User DMX CHART Manual 105-109 LED Frequency 2000Hz (hold 3s) 110-114 LED Frequency 3600Hz (hold 3s) 115-119 LED Frequency 12kHz (hold 3s) 120-124 LED Frequency 25kHz (hold 3s) 125-129 No function 130-134 Runtime Off (hold 3s) 135-139 Runtime 8h (hold 3s) 140-144 Runtime 12h (hold 3s) 145-149...
  • Page 64 Neutral --> Tint no effect if Saturation to 100% 129-255 Neutral -> Green Color Macro (override HUE/ Please use color macros from ROXX color macro chart SATURATION/CTC) 000 - 005 No function Color Macro 006-105 0,1s - 10s (0,1s steps)
  • Page 65 User Manual 120-124 LED Frequency 25kHz (hold 3s) 125-129 No function 130-134 Runtime Off (hold 3s) 135-139 Runtime 8h (hold 3s) 140-144 Runtime 12h (hold 3s) 145-149 Runtime 16h (hold 3s) 150-154 Runtime 20h (hold 3s) Device Settings (please see 155-159 No function remark *1)
  • Page 66 User Manual 7.5 Color Macro Chart for DMX Gels - Color Macros for DMX Gels - Color Macros for DMX DMX value Gel Name Color Number DMX value Gel Name Color Number 000-005 no function 102-104 Special Med Lavender LEE 343 006-008 100% Red LED 105-107...
  • Page 67 User Manual 7.5 Color Macro Chart for Stand Alone Gels - Color Macros for Standalone Mode Gels - Color Macros for Standalone Mode Position Gel Name Color Number Position Gel Name Color Number 100% Red LED Lavender LEE 058 Fire LEE 019 Magenta LEE 113...
  • Page 68 User Manual 7.5 CTC channel DMX / Color temperature 10.000 9.500 9.000 8.500 8.000 7.500 7.000 6.500 6.000 5.500 5.000 4.500 4.000 3.500 3.000 2.500 DMX (step) 2.000...
  • Page 69 User Manual 7.5 CTC-Chart Color Color Color Color Color Color Temp Temp Temp Temp Temp Temp (Step) (Step) (Step) (Step) (Step) (Step) (°K) (°K) (°K) (°K) (°K) (°K) 5600 4525 2774 3649 5400 6276 5600 4545 2794 3670 5421 6296 5600 4566 2814...

  • Page 70: Rdm Templates

    Manual 7.6 RDM Templates* The ROXX Show series features support for various RDM functions. RDM (Remote Device Management) is a protocol enhancement to USITT DMX512 that allows bi-directional com- munication between the fixtures and the controller over a standard DMX line. This protocol will allow configuration, status monitoring and management.
  • Page 71 User Manual Color Calibration 0=Full Calibration / 1=CCT Calibration RAW Balance 0= RAW / 1= User Calibration User Calibration- Red User Calibration- Green User Calibration- Blue User Calibration- Amber User Calibration- Lime User Calibration- Cyan 1= 800Hz / 2= 1200Hz / 3= 2000Hz / 4= 3600Hz / 5= 12kHz / 6= LED Frequency (PWM) 25kHz Redshift...
  • Page 72 User Manual Display Auto Flip 0= Off / 1= On Display Backlight 0= Off / 1= On Display Lock 0= Off / 1= On 0= DMX / 1= AUTO / 2= Editor / 3= Color Macro / 4= Quick Color / Startup Mode 5= Tunable White / 6= User Color DMX Fail...

  • Page 73: Firmware Update

    User Manual 7.7 Firmware Update To update B.SHOW mini TW+ / B.SHOW mini FC mini to newest firmware, please use ROXX update box and make sure the fixtures are connected to DC power. Please download update instructions here: https://roxxlight.com/support/ 8. TROUBLESHOOTING...

  • Page 74: Manufacturer´s Declaration

    ROXX GmbH, Hansestr. 91, 51149 Köln Email: info@roxxlight.com or the ROXX authorized reseller in your country, from where you purchased your product. Correct Disposal of this product This is for the European Union and European countries with electrical waste collection systems. When this label is shown on the product or brochure it means that the item cannot be disposed with household waste.
  • Page 75 User Manual CE Compliance The equipment marketed by ROXX GmbH complies (where applicable) with the essential requirements and other specifications of the following Directives: • 2014/53/EU (RED) • 2014/30/EU (EMC) • 2014/35/EU (LVD) • 2011/65/EU (RoHS) The complete EU- and UK-Declaration of Conformity can be found at www.roxxlight.com/support, or you can also request it at info@roxxlight.com...
