ROXX CLUSTER B4 W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manual

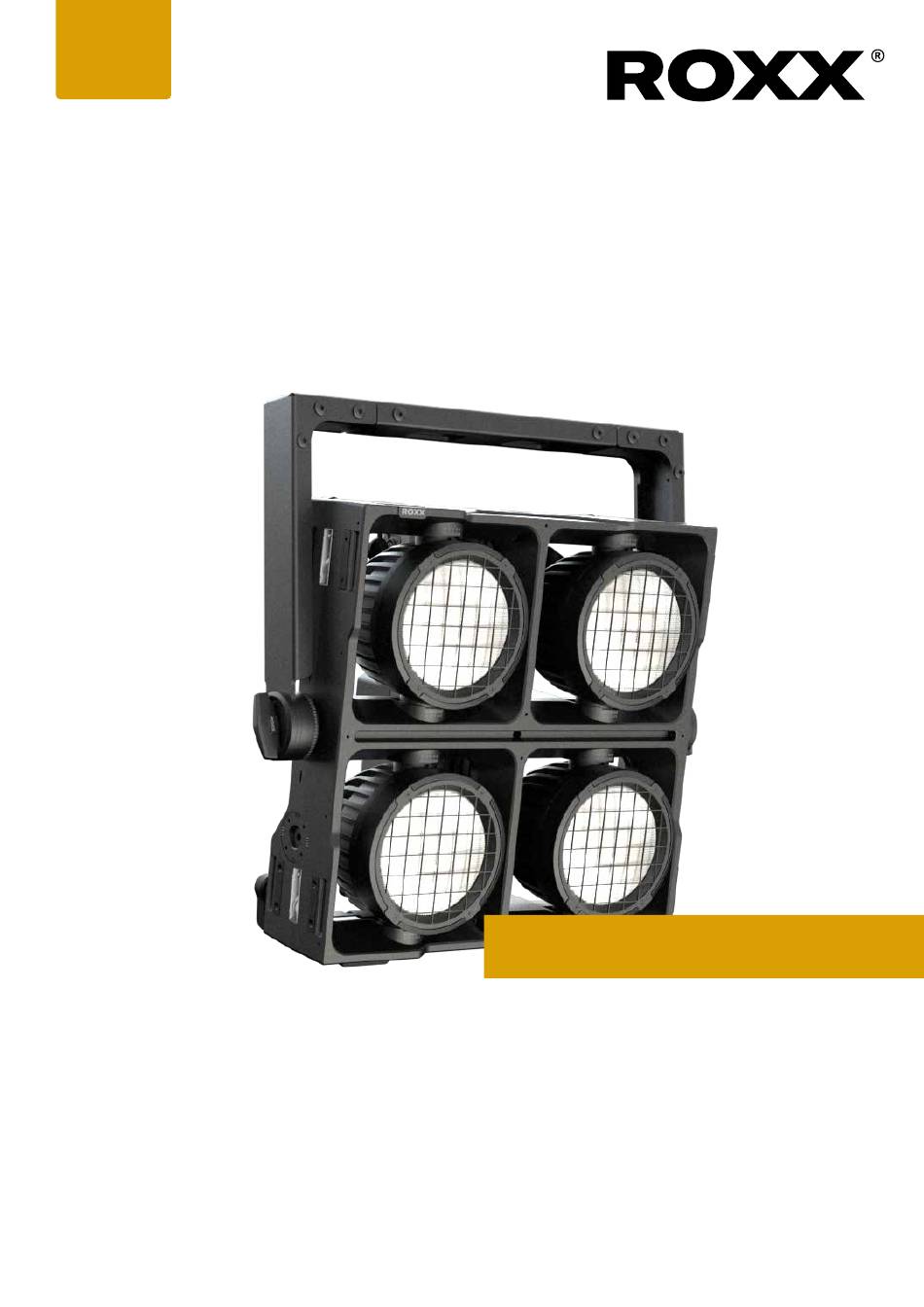

CLUSTER B4 W
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLUSTER B4 W and is the answer not in the manual?

Questions and answers

Related Manuals for ROXX CLUSTER B4 W

Summary of Contents for ROXX CLUSTER B4 W

  • Page 1 User Manual CLUSTER B4 W USER MANUAL...

  • Page 2: Table Of Contents

    1.1. General Preventive Measures 1.2. Regulations for equipment that connects to power mains 1.3. Technical warnsigns and explanation 2. Introduction 2.1. About us 2.2. CLUSTER B4 W 3. General Product Information 3.1. Scope of delivery 3.2. Control Functions 3.3. Features 4.
  • Page 3 User User Manual Manual 7. Technical Data / Diagrams 7.1 Technical drawings and measurements 7.2 IP Rating 7.3 Technical Data 7.4 DMX-Charts 7.5 RDM Templates 8. Troubleshooting 9. Manufacturer´s Declaration...

  • Page 4: Safety Informations

    1.1.1. Please read, understand and follow the instructions. 1.1.2. Store the instructions and information in a safe place. Best solution is the ring binder provided by ROXX. 1.1.3. Follow all safety warnings. Under no circumstances remove safety warnings or other information from the equipment.

  • Page 5: Regulations For Equipment That Connects To Power Mains

    User User Manual Manual 1.1.20. Observe all disposal laws applicable in your country. Especially for the packaging. 1.1.21. Plastic bags are not a toy! Keep away from children! 1.1.22. Please note that changes or modifications which are not approved by the party responsible for compliance will void the user’s authority to operate the device.

  • Page 6: Technical Warnsigns And Explanation

    User User Manual Manual 1.3. Technical warnsigns and explanation In order to prevent the risk of an electric shock, under no circumstances remove the cover/back or open the unit in any way! No user serviceable parts are inside. Service, maintenance and repairs should only be done by qualified service personnel or the manufacturer.

  • Page 7: Introduction

    This ensures innovative, easy-to-use and performance- oriented solutions, which provide added value for our customers. Made to last Recommended for permanent outdoor use, most ROXX products feature additional corrosion protection and en- ®...

  • Page 8: General Product Information

    Manual 3. GENERAL PRODUCT INFORMATION 3.1. Scope of delivery 1x CLUSTER B4 W Power cord with plug (EU country specific, if not ordered differently) Pre-installed PUK We´re offering a wide range of professional accessories (optional). Please see under menu 6 or at our website www.roxxlight.com...

  • Page 9: Installation & Setup

    4. INSTALLATION & SETUP 4.1 Physical Installation and Rigging ROXX CLUSTER B4 W may be installed in any orientation. For this purpose the product provides several options: Standing: The fixtures Yoke includes two M8 inner threads to install the optional ROXX YOKE FLOOR EXTENSION.
  • Page 10 User User Manual Manual 2. By included yoke with several mounting points: Multiple mounting points: A: 3x Camlock with ¼ turn adapters B: 3x M12 / ½“ C: 1x TV Spigot Additional Yoke anchor points: In the delivery state, the yoke is preinstalled in such a way that the individual eyes can be rotated +/-20° in the pan. Each CLUSTER device also provides side anchor points for the yoke so that the device can then be rotated either clockwise or counterclockwise so that the individual eyes can then be adjusted +/-20°...
  • Page 11 User User Manual Manual 3. Using optional ROXX RIGGING BRACKET For seemless connection of multiple Blinders, to avoid gaps due to bracing of the truss structure by variable, sliding mounting positions. Product Clustering All CLUSTER products can be easily connected both horizontal and vertically, by using the integrated C-Lok system.
  • Page 12 User User Manual Manual 3. Make sure that the C-Lok hooks are turned counterc- lockwise (CCW) to the end-position first before you finally lock the C-Loks. 4. For locking all C-Lok´s, please turn them clockwise into end-position. Note: As soon as both dot indicators are in line, the C-Lok is securely locked Maximum Tensile and Torsion Load Before setting up Cluster configurations, be aware of the maximum tensile and torsion load, listed...
  • Page 13 With 2x Omega Bracket Max. Tension Load: 49kg Max. Tension Load: 90kg Max. Torsion Load: 5.041 Nmm Max. Torsion Load: 10.808 Nmm 3. Using optional ROXX RIGGING BRACKET with 2x Mounting Clamps Max. Tension Load: 72kg Max. Torsion Load: 6.326 Nmm...

  • Page 14: Connections

    User User Manual Manual Important Note: Please be aware of using the centering PUK for safe RIGGING BRACKET installation to the CLUSTER device. 4.2 Connections* A: Mains In: IP65 Power input connector with rubber sealing cap.Connect using the provided power cable (when not in use, always close with rubber sealing cap).

  • Page 15: Ac Power

    Manual 4.2.1. AC Power The CLUSTER B4 W operates on any 100–260 V, 50/60 Hz AC mains power supply with a maximum power con- sumption of 220W. Connect the fixture to AC power using the supplied cable or a similar one with Neutrik powerCON TRUE1 NAC3FX-W or a compatible type, to ensure the correct ingress protection (IP).

  • Page 16: Operation

    Once the fixture is connected to AC power, the boot process starts and the following information will appear on the display: “Ready to ROXX”, the product name and the current software version. After this process, the fixture is ready for operation, and starts in the previous- ly enabled mode.
  • Page 17 User User Manual Manual Display Off Pressing ESC + arrow down simultaneously the display backlight function will set to off and the display will turn off immediately. Once a control is pressed the display backlight will turn on. Manual display flip function* The fixture includes an auto display flip function by default.

  • Page 18: Configuration

    User User Manual Manual 5.4 Configuration Home Screen After boot process the fixture is ready for operation and starts in the previously enabled mode. At home screen the following information will appear, depending on the current operating mode: DMX Adress Operating Mode (DMX Mode, Quick Light or Standalone Mode) Next available DMX address depending on the fixtures DMX footprint External Data protocol (DMX).

  • Page 19: Stand Alone

    User User Manual Manual Level 1 Level 2 Menu DMX Mode DMX Mode 1CH DWE 2CH DWE Stand Alone 4-1CH DWE Slave 4-2CH DWE Settings 7CH STROBE System Info 9CH STANDARD 12CH EXTENDED 17CH EXTENDED 5.4.3 Stand Alone* Press ENTER to access to main menu (level 1). While using the UP / DOWN arrows, please select the menu item “Stand Alone”...
  • Page 20 User User Manual Manual Once it´s confirmed or denied the display will automatically jump back to level 3. To stop running a selected Effect please chose “Stop Program” at level 3 or "Stop Stand Alone" at level 2. For returning back to homescreen please press ESC three times. At homescreen the selected Stand Alone mode “Auto”...

  • Page 21: Slave Mode

    User User Manual Manual 5.4.4 Slave Mode* Slave Mode allows same model fixtures to be controlled by the “Master” fixture via DMX). The “Master” device should run in Stand Alone mode, all “Slave” devices should set to “Slave”. Level 1 Menu DMX Mode Stand Alone...
  • Page 22 User User Manual Manual Main Menu Menu level 2 Menu level 3 Menu level 4 Description On= Flip control panel display by Display Flip <on/off> 180° (e.g. for overhead installation) Off= normal control panel display On= controls permanent on, display itself will deactivate after 60 minues of incativity Backlight <on/off>...
  • Page 23 User User Manual Manual 800 Hz 1200 Hz 2000 Hz LED Frequency Select preferred LED PWM frequency 3600 Hz 12000 Hz 25000 Hz Adjust fan speed relative to internal fixture Auto temperature Silent Low fan speed for silent operation Fan Off Fan Off Max.
  • Page 24 User User Manual Manual Main Menu Menu level 2 Menu level 3 Menu level 4 Menu Level 5 Description 1CH DWE, 2CH DWE, 4-1CH DWE, 4-2CH DWE, 7CH STROBE, 9CH STANDARD, 12CH EXTENDED, 17CH EX- TENDED Display Flip <on/off> Backlight <on/off>...

  • Page 25: System Info

    User User Manual Manual Pixel Arrangement PIXEL 1 PIXEL 2 PIXEL 3 PIXEL 1 PIXEL 2 PIXEL 4 PIXEL 3 PIXEL 4 PIXEL 4 PIXEL 2 PIXEL 1 PIXEL 3 Dimmer Curves LINEAR EXPONENTIAL LOGARITHMIC S-CURVE 5.4.6 System Info Level 1 Menu DMX Mode Stand Alone...

  • Page 26: Accessories

    User User Manual Manual 6. ACCESSORIES Yoke 4.3 Floor Extension Rigging Bracket Art.: 13907101 Art.: 13907411 Art.: 13907201 Omega Bracket ST Case 4 pcs. / 8 pcs. Art.: 13907411 Art.: 90900002 Case 2 pcs / 4 pcs Art.: 13907511...
  • Page 27 User User Manual Manual 7. TECHNICAL DATA / DIAGRAMS 7.1 Technical drawings and measurements...
  • Page 28 7.2 IP Rating ROXX products conform to officially classified IP standard levels. CLUSTER B4 W is rated to IP65 when using the co- vers for the housing parts. IP stands for Ingress Protection and IP65, according to classified standard, means shielded against dust and high-pressure jets of water from any side.
  • Page 29 User User Manual Manual 7.3 Technical Data Photometrics LED expected lifetime 50.000 hours Lightsource 4x 300W Warm-White + Amber + Red Type of optical system Reflector with Compound Eye Lens LED PWM Frequency selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz Beam angles (50%) 50°...
  • Page 30 User User Manual Manual 7.3 Technical Data Operator & Controller Master Dimmer, Master Dimmer Fine, Shutter, Duration, Dimmer 1-4, Dimmer 1-4 DMX Functions Fine, Dimmer Curve, Dimmer Response, Redshift, Effect, Device Settings 1CH DWE, 4-1CH DWE, 4-2CH DWE, 7CH STROBE, 9CH STANDARD (default), DMX channels 12CH EXTENDED, 17CH EXTENDED DMX modes...
  • Page 31 User Manual 7.4 DMX-Charts 1CH DWE 2CH DWE 4-1CH DWE 4-2CH DWE 7CH STROBE 9CH STANDARD (default) 12CH EXTENDED 17CH EXTENDED 1CH DWE 2CH DWE 4-1CH DWE 4-2CH DWE Dimmer Dimmer 1 Dimmer 1 Dimmer Dimmer 2 Dimmer 2 Dimmer Curve Dimmer Dimmer 3 Response...
  • Page 32 User Manual 1CH DWE Function Value Setting Remark Default Dimmer 000-255 0 - 100% 2CH DWE Function Value Setting Remark Default Dimmer 1 000-255 0 - 100% (affects eye 1 + 3) Dimmer 1 000-255 0 - 100% (affects eye 2 + 4) 4-1CH DWE Function Value...
  • Page 33 User Manual 070 - 084 Strobe 2: opening pulse(fast slow) 085 - 089 Shutter open 090 - 104 Strobe 3: closing pulse(fast slow) 105 - 109 Shutter open 110 - 124 Strobe 4: random strobe (fast slow) 125 - 129 Shutter open Strobe 5: random opening pulse 130 - 144...
  • Page 34 User DMX CHART Manual 145 - 149 Shutter open Strobe 6:random closing pulse 150 - 164 (fast slow) 165 - 169 Shutter open 170 - 184 Strobe 7: burst pulse (fast slow) 185 - 189 Shutter open Shutter 190 - 204 Strobe 8: random burst pulse (fast slow) 205 - 209...
  • Page 35 User DMX CHART Manual 110 - 124 Strobe 4: random strobe (fast slow) 125 - 129 Shutter open Strobe 5: random opening pulse 130 - 144 (fast slow) 145 - 149 Shutter open Strobe 6: random closing pulse 150 - 164 (fast slow) 165 - 169...
  • Page 36 User Manual 000-029 No function 030-034 Display Backlight On (hold 3s) 035-039 Display Backlight Off (hold 3s) 040-044 No function 045-049 DMX Fail Blackout (hold 3s) 050-054 DMX Fail Hold (hold 3s) 055-059 DMX Fail - Emergency Light (hold 3s) 060-064 No function 65-069...
  • Page 37 User DMX CHART Manual 000 - 019 Shutter close 020 - 024 Shutter open 025 - 064 Strobe 1 (fast slow) 065 - 069 Shutter open 070 - 084 Strobe 2: opening pulse (fast slow) 085 - 089 Shutter open 090 - 104 Strobe 3: closing pulse(fast slow)
  • Page 38 User DMX CHART Manual No Function - Current Preset from Menu 000-84 Settings Redshift 085-170 Redshift Off 171-255 Redshift On 000-40 No Function 041-083 Effect 1 (slow to fast) 084-126 Effect 2 (slow to fast) Effect 127-169 Effect 3 (slow to fast) 170-212 Effect 4 (slow to fast) 213-255...
  • Page 39 6A6Ah Device ID: 201 xxxx * Note: During RDM identifying process CLUSTER B4 W flashes white alternately. RDM functions For easy identifying ROXX CLUSTER B4 W during RDM process the unit will strobe in white color. Function Action Values 0x00F0...
  • Page 40 User User Manual Manual 0x8033 User Calibration- White 4 0x8032 User Calibration- Amber 4 0x802F User Calibration- Red 4 1= 800Hz / 2= 1200Hz / 3= 2000Hz / 4= 3600Hz / 5= 12kHz / 6= 0x8059 LED Frequency (PWM) 25kHz 0x805A 0= Auto / 1= Silent / 2= Fan Off / 3= Max.
  • Page 41 User Manual Sensors RDM enables various readouts for remote device monitoring. See the table below for sensors and sensor types. Please note: The RDM controller communicates with the fixtures to show only the available sensors for this fixture. The table is subject to change without notice. Name Temperature xx°C / xxx°F...
  • Page 42 Hansestr. 91 51149 Köln Email: info@roxxlight.com or the ROXX authorized reseller in your country, from where you purchased your product. Correct Disposal of this product This is for the European Union and European countries with electrical waste collection systems. When this label is shown on the product or brochure it means that the item cannot be disposed with household waste.
  • Page 43 User User Manual Manual CE Compliance The equipment marketed by ROXX GmbH complies (where applicable) with the essential requirements and other specifications of the following Directives: • 2014/30/EU (EMC) • 2014/35/EU (LVD) • 2011/65/EU (RoHS) The complete EU- and UK-Declaration of Conformity can be found at www.roxxlight.com/support, or you can also request it at info@roxxlight.com...
