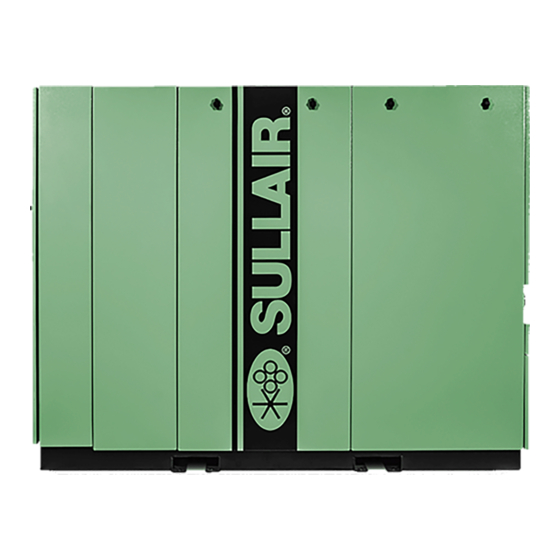

Industrial Air Compressor
SAFETY WARNING
Users are required to read the
entire User Manual before han-
dling or using the product. Keep
the User Manual in a safe place
for future reference.
USER MANUAL
SN55, SN55S, SN55V,
SN75, SN75S, SN75V
75 & 100 hp (55 & 75 kW)
WARRANTY NOTICE
Failure to follow the instructions
and procedures in this manual,
or misuse of this equipment, will
void its warranty.
Subject to EAR, ECCN EAR99 and related export control restrictions.
PART NUMBER:
02250247-571 R04
The information in this manual is current as of its
publication date and applies to compressor models
indicated on this cover with serial number:
201903080000
and all subsequent serial numbers until next revision of
this manual or release of a replacement manual..
Publication date: 03/27/2020
Copyright © 2020 Sullair, LLC. All rights reserved.
