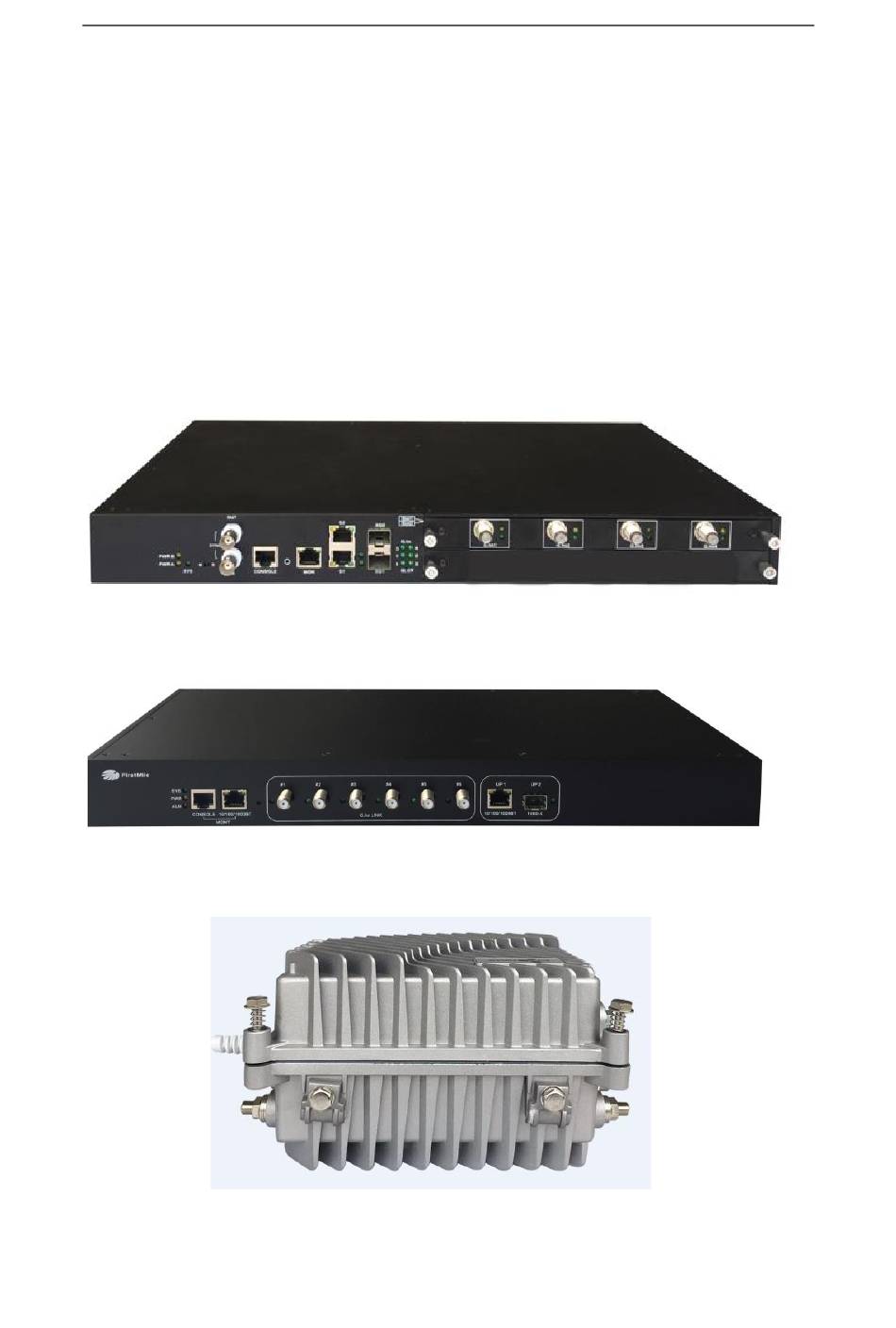

- Page 1 G4200 Coax Serial Product Quick Start Guide 1. Overview The G4200C system contains the headend Switch G4200-4C/G4200C/G4200E and the Client device G4201C/G4204C. 2. Hardware Descriptions G4200-4C/8C G4200C G4200E...
- Page 2 G4200 Coax Serial Product Quick Start Guide G4201C G4204C 2.1 G4200-4C/8C (Headend device) G4200-4C/8C is the device of multiplexer system, as shown in the following drawings. It supports 2 x10G SFP ports, 2 x 10/100/1000BT ports, 4/8 x coax g.hn Ports, one gigabit monitor port.
-
Page 3: State Description
G4200 Coax Serial Product Quick Start Guide Label Type Color State Description The power is on and supplying the current to the system PWR A/B Power status Yellow The power is off or it is not supplying the current to the system System is started System status Green... - Page 4 G4200 Coax Serial Product Quick Start Guide 1 x10G SFP ports, 2 x 10/100/1000BT ports,6 x coax g.hn Ports, one gigabit monitor port. The front panel is shown below: The following table shows the port descriptions. Label Description Console port: A RS-232 connector for connection to a computer for console control/administration.
- Page 5 G4200 Coax Serial Product Quick Start Guide G.hn3/ The link condition is poor or there is G.hn4/ no connection to this port G.hn5/ The corresponding port connection G.hn6 abnormal and link quality is poor Yellow The link condition is normal or there is no connection to this port The corresponding port connection normal...
- Page 6 G4200 Coax Serial Product Quick Start Guide 2.3 G4200E (Headend device) G4200E is the device of multiplexer system, as shown in the following drawings. It supports 2 XGE/10G SFP ports, 1 x 10/100/1000BT ports, 4 x coax g.hn Ports, one gigabit monitor port.
- Page 7 G4200 Coax Serial Product Quick Start Guide The following table shows the port descriptions. Label Description Console port: A RS-232 connector for connection to a computer for console control/administration. Console (1) The RS-232 console port can be used for accessing the device CLI (command line interface) for out-of-band management.
- Page 8 G4200 Coax Serial Product Quick Start Guide The corresponding port is not selected. The corresponding slot is not selected. Connection Rate 1000Mbps Green Connection Rate 10/100 Mbps The corresponding port connection MGMT Ethernet link status normal Yellow There is no connection to this port The MGMT port is up and this port Blink is working.
-
Page 9: Application Diagram
G4200 Coax Serial Product Quick Start Guide The power is off or it is abnormal Corresponding port connection normal Green Green led and Yellow led are off ,this port is not connected Corresponding port connection abnormal and link G.hn quality is poor Yellow Green led and Yellow led are off ,this port is not... -
Page 10: Installation
G4200 Coax Serial Product Quick Start Guide 4．Installation Setup1: G4200-4C/8C or G4200C or G4200E (Headend device) + G4201C (Remote device) Setup2: G4200CD-L (Local device) + G4201C (Remote device) 4.1 G4200-4C/8C or G4200C (Headend device) Step 1：Connect to uplink Ethernet port G1, or G2, or XG1, or XG2 If you use Cat.5 cable access, please put Cat.5 into G1 or G2 port. - Page 11 G4200 Coax Serial Product Quick Start Guide Step 2：Connect coaxial cable to downlink coax port Please coaxial cable to G.hn port; Step 3：Insert power cord and turn on the power switch. 4.2 G4201C (Remote device) Step 1：Connect to uplink coax port. Step 2：Connect to downlink Ethernet port.
- Page 12 G4200 Coax Serial Product Quick Start Guide 5. Login Default configuration： IP address: 192.168.0.252 IP subnet: 255.255.255.0 User name: superuser Password: You can visit the web based management page of the headend device, open a web browser and visit http://192.168.0.252, input username and password. 5.1 Change IP You can change device IP address from “VLAN Management >...
- Page 13 G4200 Coax Serial Product Quick Start Guide 5.2 Change device time You can change system time through the path Administration >SNTP. Save configuration You can save configuration information through the pathAdministration >Save Configuration. Check device basic information You can check device basic information through the path System Information>Basic Information.
- Page 14 G4200 Coax Serial Product Quick Start Guide 5.5 Check link status between local device and client device You can check node basic information through the path System Information>Node Summary. 5.6 Check system logs You can check system logs through Administration > System Logs > System Logs.
